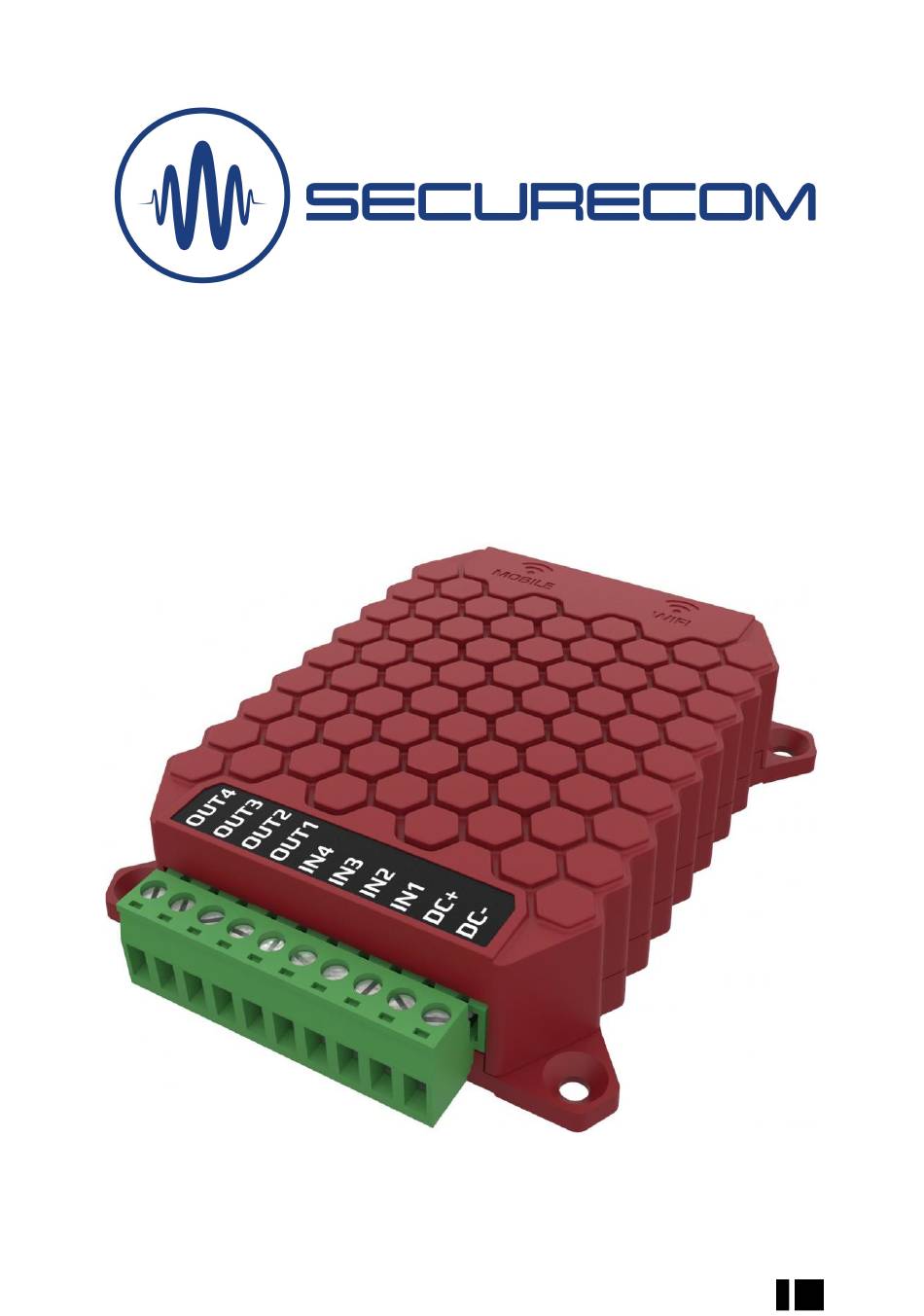

- Page 1 Internet based communicator for control and state monitoring via mobile App with WIFI + 4G (LTE) connection User manual v1.0 UNIO4 WxG 1 EN...
-
Page 2: Table Of Contents
4.2.9 ..Mobile Network Connection Settings ............... 10 4.2.10 ..WIFI Network Connection Settings ................11 Reset to factory default ....................11 Transparent forwarding of serial port ..................12 Technical data ........................... 12 Content of the package ......................13 UNIO4 WxG 2 EN... -
Page 3: Introduction
Status change signaling to maintenance with immediate multiple reporting and confirmation with identification (Error is sent to all maintenance workers on smartphone, one can confirm to “take the case” and other see that error is being handled by that operator) UNIO4 WxG 3 EN... -

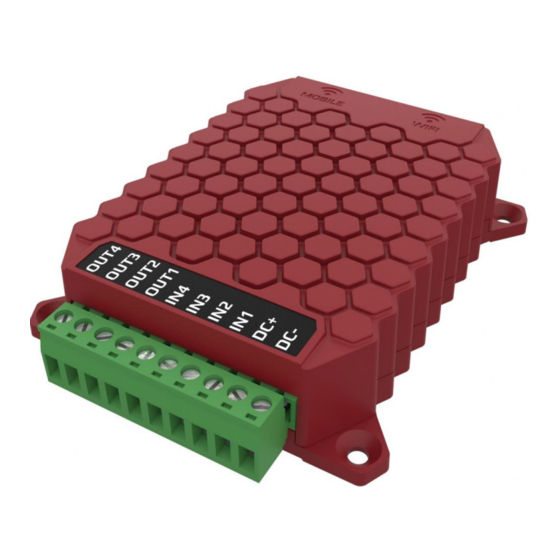

Page 4: Device Parts And Connectors
APN setting empty Connecting… Flashing Red If the flashing continues for longer time, device can not connect to network (bad setting, bad SIM or missing SIM) Flashing Green Idle mode, device connected to Internet through cellular network UNIO4 WxG 4 EN... -
Page 5: Inputs
The serial port is provided as a 5-pin connector, providing both RS232 and TTL signal levels, with different pinout and cables. Please check on Securecom web site for available cables and specify your request for cable when purchasing them from your Securecom supplier. -
Page 6: Installation
4. If the serial port is being used, connect the serial port connector with appropriate cable to the serial port of device you want to access remotely. Settings In order to enter settings, install the SECURECOM CONFIGURATOR program first. The program can be downloaded from the webpage of https://www.securecom.eu/... -
Page 7: Administrative Window
Change NO/NC state” means that every control signal will change the output state. The „Negative impulse” setting will result that on every control signal the output turns ON for one second, and then automatically goes back to OFF state. Open previously saved settings from file UNIO4 WxG 7 EN... -
Page 8: Locking Features And Device
(CID from alarm panel, or a periodic test report) to Monitoring station was successful, the status will show OK. If there are no settings for MS (Monitoring Station) the status will be empty, since device did not try to send any report to MS. UNIO4 WxG 8 EN... -
Page 9: Communicator Event Codes
NOTE: The “sensitivity” parameter is useful to “filter” some unwanted events- for example, when some NOISE generates an uncontrolled short contact on device input. 4.2.6 Monitoring station settings To set up the UNIO4 device for reporting to the monitoring station in a required way, following settings are available: UNIO4 WxG 9 EN... -
Page 10: Mqtt Communication Option
SIM card is set to request PIN code on startup, and the APN parameters should be provided by the provider of SIM card. If the APN data fields are empty, device will keep the GPRS modem turned off, and communicate through WIFI only. UNIO4 WxG 10 EN... -
Page 11: Wifi Network Connection Settings
Refreshing (restarting) the site and application will remove the deleted device. Note: If the device was LOCKED (section 4.2.2. Locking features and device), the defaulting procedure will fail. You must remove the LOCK to perform the successful procedure UNIO4 WxG 11 EN... -
Page 12: Transparent Forwarding Of Serial Port
While Inactive, it is „floating”- terminal is just connected to a relay contact. Power supply (DC+ / DC-) Supply voltage 9-30V DC Maximum consumption 500mA @ 12V DC (in case of GPRS transmission) Nominal consumption 150mA @ 12V DC Dimensions 98x75x24 mm UNIO4 WxG 12 EN... -
Page 13: Content Of The Package
• UNIO4 WxG communicator (WIFI, W2G, W4G, depending on type) • Antenna (for WIFI: 1pc, for W2G and W4G: 2pcs) • USB cable • Warranty UNIO4 WxG 13 EN...
