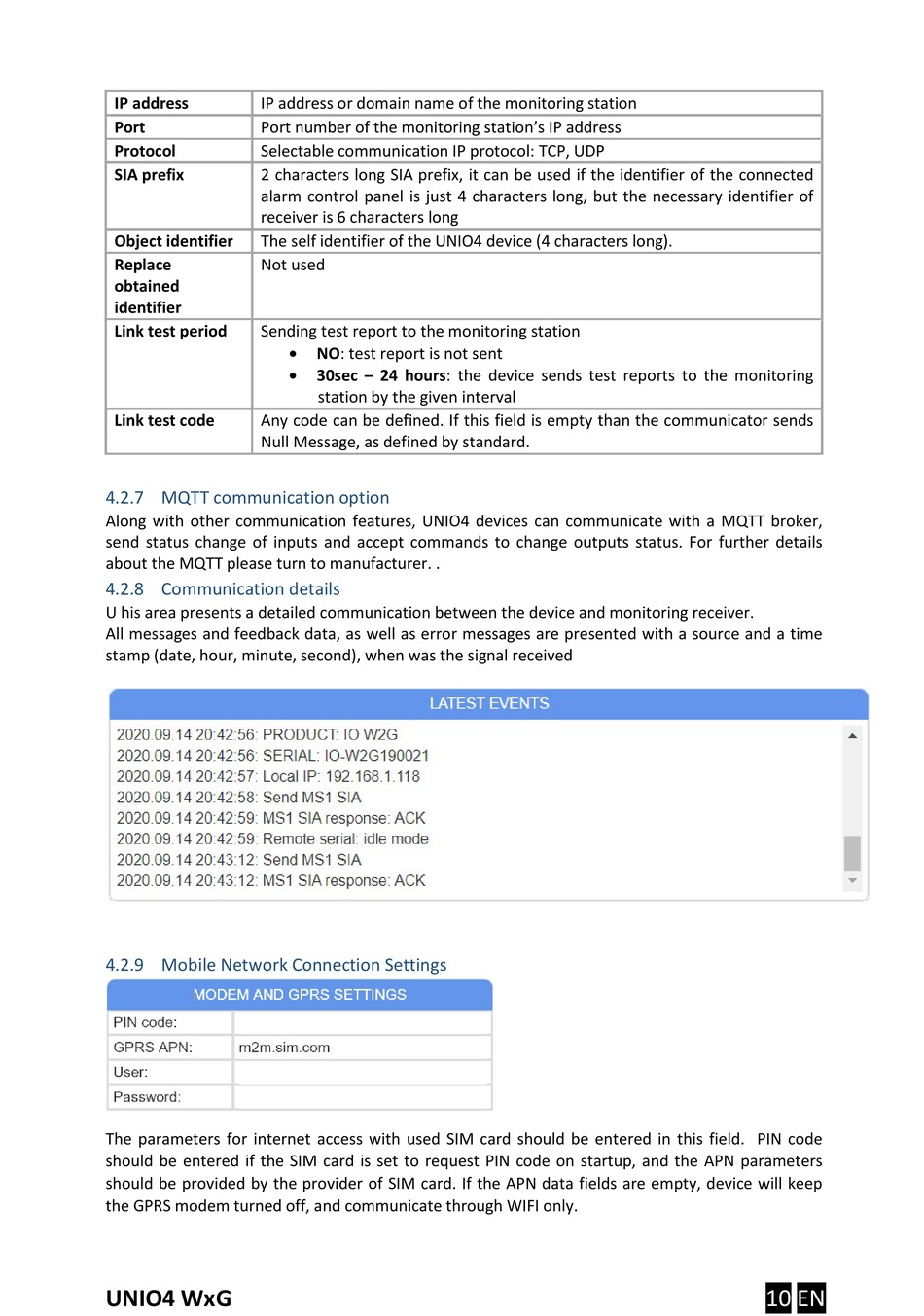

Mqtt Communication Option; Communication Details; Mobile Network Connection Settings - SECURECOM UNIO4 WxG User Manual

IP address IP address or domain name of the monitoring station
Port Port number of the monitoring station's IP address
Protocol Selectable communication IP protocol: TCP, UDP
SIA prefix 2 characters long SIA prefix, it can be used if the identifier of the connected
alarm control panel is just 4 characters long, but the necessary identifier of
receiver is 6 characters long
Object identifier The self identifier of the UNIO4 device (4 characters long).
Replace Not used
obtained
identifier
Link test period Sending test report to the monitoring station
Link test code Any code can be defined. If this field is empty than the communicator sends
Null Message, as defined by standard.

4.2.7 MQTT communication option

Along with other communication features, UNIO4 devices can communicate with a MQTT broker,
send status change of inputs and accept commands to change outputs status. For further details
about the MQTT please turn to manufacturer. .

4.2.8 Communication details

U his area presents a detailed communication between the device and monitoring receiver.
All messages and feedback data, as well as error messages are presented with a source and a time
stamp (date, hour, minute, second), when was the signal received

4.2.9 Mobile Network Connection Settings

The parameters for internet access with used SIM card should be entered in this field. PIN code
should be entered if the SIM card is set to request PIN code on startup, and the APN parameters
should be provided by the provider of SIM card. If the APN data fields are empty, device will keep
the GPRS modem turned off, and communicate through WIFI only.
UNIO4 WxG

NO: test report is not sent

30sec – 24 hours: the device sends test reports to the monitoring
station by the given interval
10 EN
