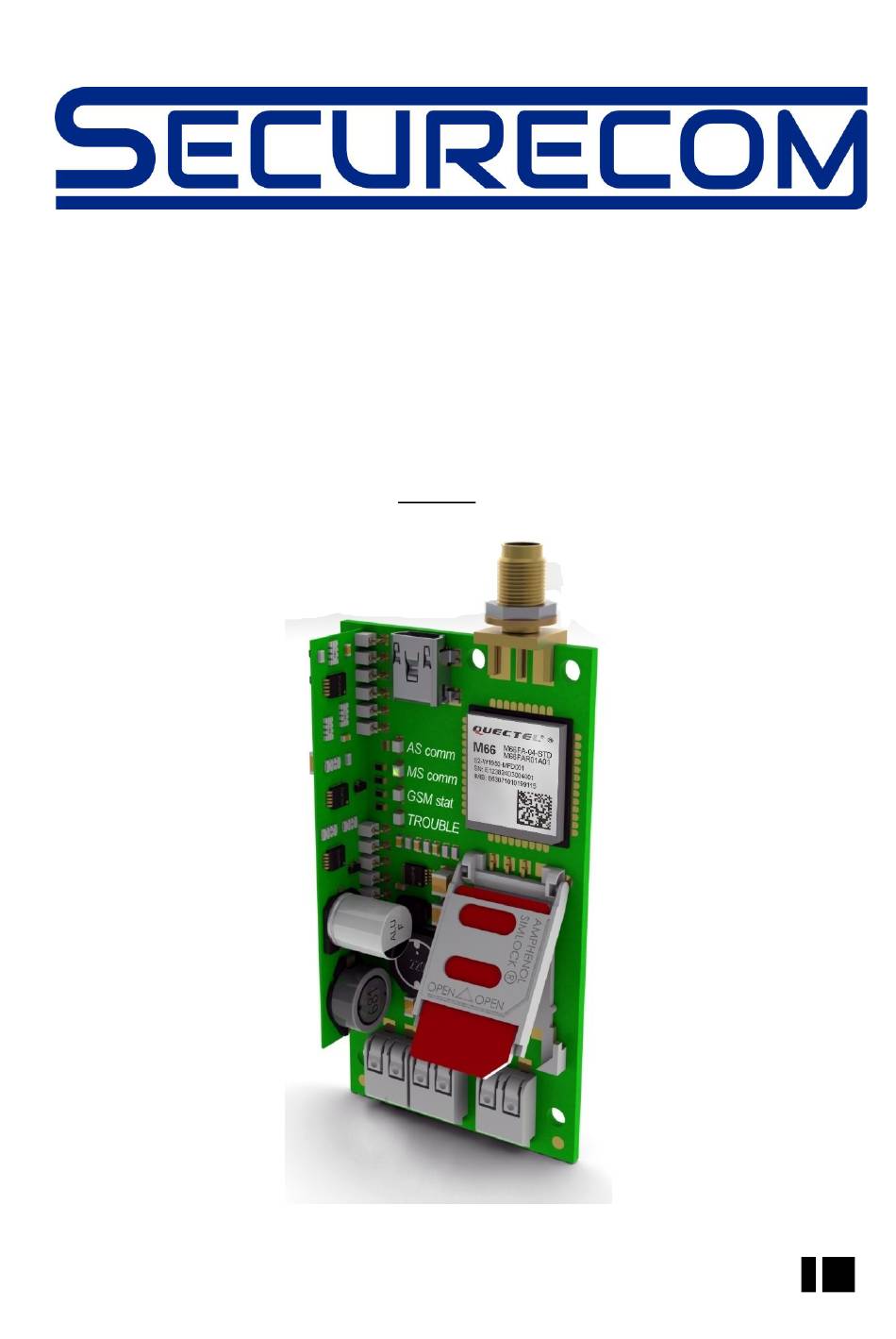

- Page 1 Alarm monitoring communicator for Contact ID reporting to SIA DC09 (IP) receivers Manual v1.3 SC-GPRS 1 EN Alarm Monitoring Communicator v1.3...
-
Page 2: Table Of Contents
Device code lock (protection)......................7 4.4. Device Status ..........................7 4.5. Parameter settings ........................8 5. Operating logic for alarm reporting ..........10 6. Parameters setting by SMS messages ......... 11 7. LED indicators ................12 SC-GPRS 2 EN Alarm Monitoring Communicator v1.3... -
Page 3: Short Functional Description Of Device
Short functional description of device The SC-GPRS device translates and forwards the Contact ID reports from any alarm panel to monitoring station through GPRS network to SIA DC-09 receivers, according to SIA DC-09 standard. The data transfer is done in the GPRS system of the mobile network, in the form of TCP/IP or UDP packets. -
Page 4: Product Layout
Simulated landline for the alarm control panel’s TIP/RING input Line voltage: 48V, Loop current: 25mA, Impedance: 300ohm (TIP/RING) INPUTS (Z1, Z2) Contact Input (to negative supply “COM” ) for transmission of the signal of external switches SC-GPRS 4 EN Alarm Monitoring Communicator v1.3... -
Page 5: Connection
3.2. Emulated phone line The TIP and RING terminals of the SC-GPRS device provides an emulated phone line. Connect these terminals where the PSTN (regular phone line) is supposed to be connected to the device that will use this communicator. In case of connecting to alarm panel, use the INCOMMING LINE terminals, (usually marked with TIP/RING or T/R, or Ti/Ri...). -
Page 6: Configuration Of Device
When connected to that machine for first time, the driver will be installed first, then the new drive will be found. This drive is the flash memory of SC-GPRS device, and contains the software and this manual. You can run the software from device, or copy it to your PC and run it from there. -
Page 7: Moving Data Between The Pc And The Device
MS2). Also the status of two inputs is displayed in same field. This part is ALWAYS VISIBLE, even when the device is protected with code lock. These are the possible values of the fields in the status view: SC-GPRS 7 EN Alarm Monitoring Communicator v1.3... -
Page 8: Parameter Settings
All settings from device will be displayed as soon as device is connected. In case of unstable reading, disconnect the device and connect it again. It will result a new reading and displaying of settings that are valid in device. SC-GPRS 8 EN Alarm Monitoring Communicator v1.3... - Page 9 BLANK, MS1 is primary and MS2 is backup. h. Link test period Periodic test data report to the monitoring receiver. Device will send a „test report” to that receiver in intervals set in this field SC-GPRS 9 EN Alarm Monitoring Communicator v1.3...
-
Page 10: Operating Logic For Alarm Reporting
The device waits the end of repeated message and transmits the acknowledge. 6. After receiving the acknowledge, the alarm panel starts transmitting the next CID code if there are more reports to be sent, and the procedure is repeated from point SC-GPRS 10 EN Alarm Monitoring Communicator v1.3... -
Page 11: Parameters Setting By Sms Messages
You can also request the status information from the device, with following command: The device will reply with a SMS message that contains the information, in following format: SIGNAL: 21 GPRS: OK MS1: OK MS2: ERROR ( These values are EXAMPLE) SC-GPRS 11 EN Alarm Monitoring Communicator v1.3... -
Page 12: Led Indicators
GSM Signal is below the requested level, this LED will blink. If some fault is valid, red TROUBLE will lit continuously, while green LED shows the cause of the fault with blinks. NORMAL OPERATION GSM NETWORK FAILURE GPRS network failure SC-GPRS 12 EN Alarm Monitoring Communicator v1.3...
