UNIO4 device was built for operation as a standalone communicator. All wire terminals should be
connected to appropriate signals.
After the connection to Internet was established, device should be set properly to fit required
features.
4.1
Connecting the device
For easier working with wires, terminal block on the device are removable.
1. Connect the power supply to terminals DC+ and DC-, with appropriate polarity.
2. The INPUTs can be triggered with a "dry contact" (a shortcut to negative supply line). If the
communicator is not supplied from the same power source as any of devices connected to Input
terminals, the UNIO4 power supply negative line (DC-) should be connected to other devices Ground
or 0V points, in order to have one "common ground"
3. The OUTs terminals are one pole of output relay, and the other pole is the DC- (relay output
connects to GROUND when activated). Connect the OUT terminal to provide negative power supply
for the device (load) that is being switched with this output. The device positive power supply line
should be connected to the power supply source, through an appropriate fuse.
4. If the serial port is being used, connect the serial port connector with appropriate cable to the
serial port of device you want to access remotely.
4.2
Settings

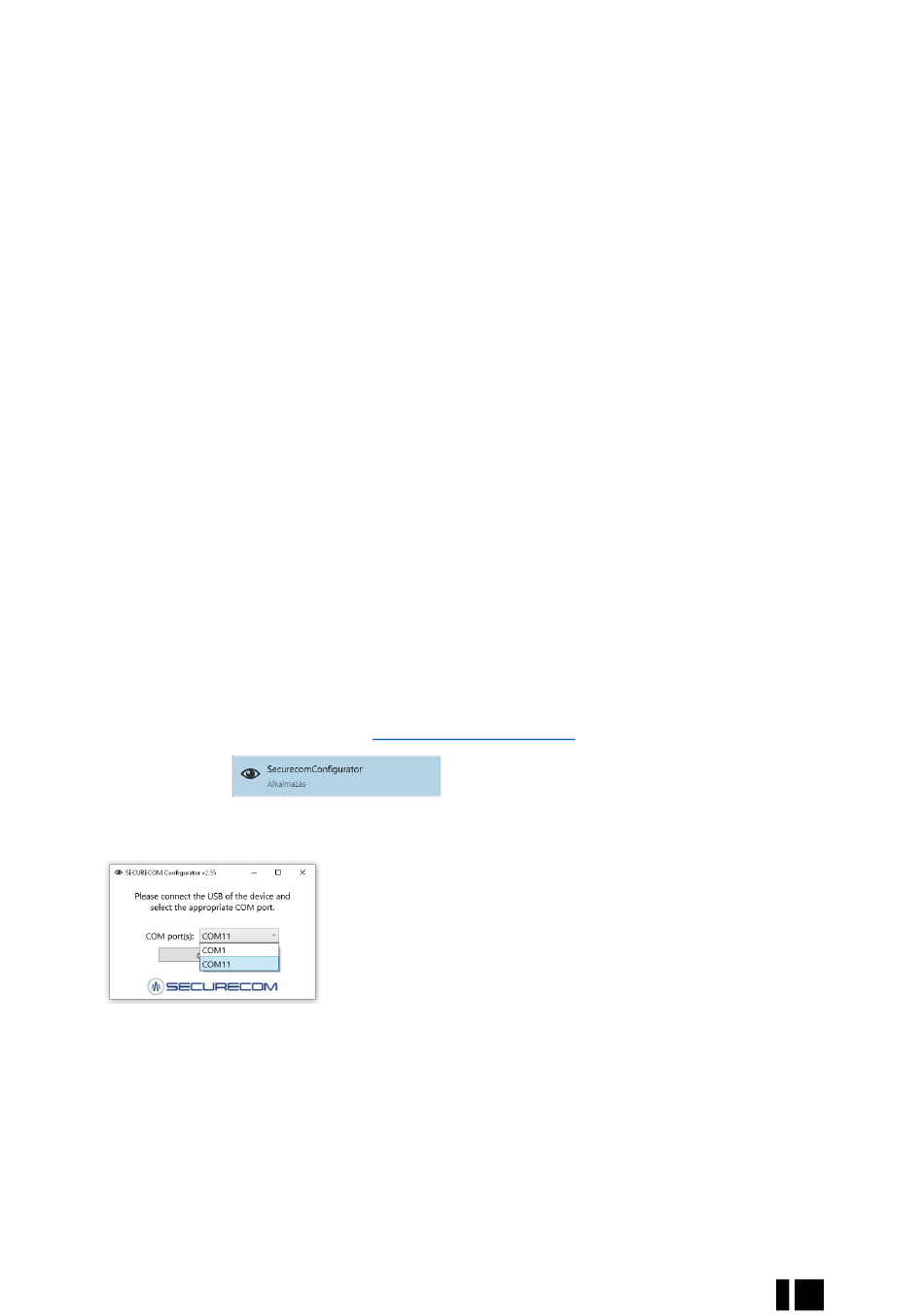

In order to enter settings, install the SECURECOM CONFIGURATOR program first. The program can
be downloaded from the webpage of
After running the
PC, and select the appropriate serial port, then push the "Connect" button. For example:
Once connected, device settings can be found on the following interface.
UNIO4 WxG
https://www.securecom.eu/
program, connect the USB port of the device to the
6 EN
