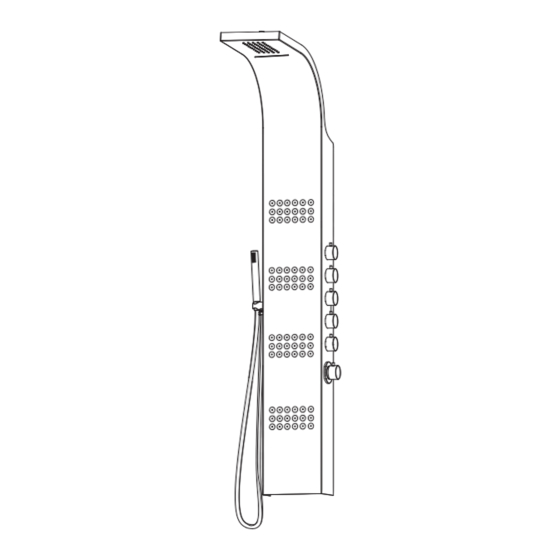

- Page 1 Features - Stunning stylish European inspired design - Durable stainless steel frame construction - 72 body massage jets - 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) - Contemporary brass hand shower Decor Star PL-024-SS Rev. A2 012016...
- Page 2 Thank you for purchasing Decor Star products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-800-879-1197, Monday - Friday 10AM - 5PM Pacifi c Time. Or by email at support@decorstarusa.com.
- Page 3 • A laundry outlet box such as the Sioux Chief Ox Box can be used to speed up the installation process of the shut off valves. Decor Star PL-024-SS Rev. A2 012016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Decor Star PL-024-SS Rev. A2 012016...
- Page 5 Recommended Operating Pressure: 50 - 80 psi Approx. flow rate: 3.3 gpm at 80 psi 200mm 495mm 7.87” 19.49” 1500mm 59.06” 770mm 30.31” 570mm 22.44” 390mm 260mm 15.35” 10.24” 72.5mm *All Measurements are Approximate 2.85” Decor Star PL-024-SS Rev. A2 012016...
-
Page 6: Parts List
02. Hand Shower 03. Hand Shower Cradle 04. O rings 05. Hand Shower Hose 06. Gasket 07. Hand Shower Water Connector 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Decor Star PL-024-SS Rev. A2 012016... -
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before installing the wall anchors, use a small piece of painters tape or masking tape over the drill area. This will prevent damages to the tile) 1” Decor Star PL-024-SS Rev. A2 012016... - Page 8 Make sure the unit is seated properly. Apply silicon sealant on left and right sides of the shower panel. (NOTE: do not seal the bottom of the panel, this will allow any possible future leaks to drain out the panel) Decor Star PL-024-SS Rev. A2 012016...
- Page 9 Installation (cont.) 7. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Decor Star PL-024-SS Rev. A2 012016...
-
Page 10: Operation
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Decor Star PL-024-SS Rev. A2 012016...
