Decor Star
PL-026-GS-WHT
(White)
PL-026-GS-BLK
(Black)
PL-026-GS-SLR
(Silver)
PL-026-GS-AQU
(Aqua Blue)

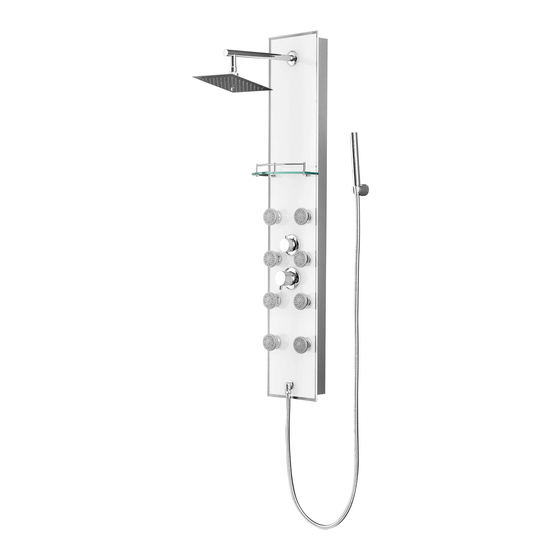

Features
- Stunning stylish European inspired design
- Elegant safety tempered glass panel (Available in white, black, silver, and aqua blue colors)
- Square stainless thin profile shower head
- 8 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Decor Star
1
PL-026-GS Rev. A2 082016
Advertisement
Related Manuals for Decor Star PL-026-GS-WHT
Summary of Contents for Decor Star PL-026-GS-WHT
- Page 1 Decor Star PL-026-GS-WHT (White) PL-026-GS-BLK (Black) PL-026-GS-SLR (Silver) PL-026-GS-AQU (Aqua Blue) Features - Stunning stylish European inspired design - Elegant safety tempered glass panel (Available in white, black, silver, and aqua blue colors) - Square stainless thin profile shower head...
- Page 2 Thank you for purchasing Decor Star products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-800-879-1197, Monday - Friday 10AM - 5PM Pacifi c Time. Or by email at support@decorstarusa.com.
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Decor Star PL-026-GS Rev. A2 082016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Decor Star PL-026-GS Rev. A2 082016...

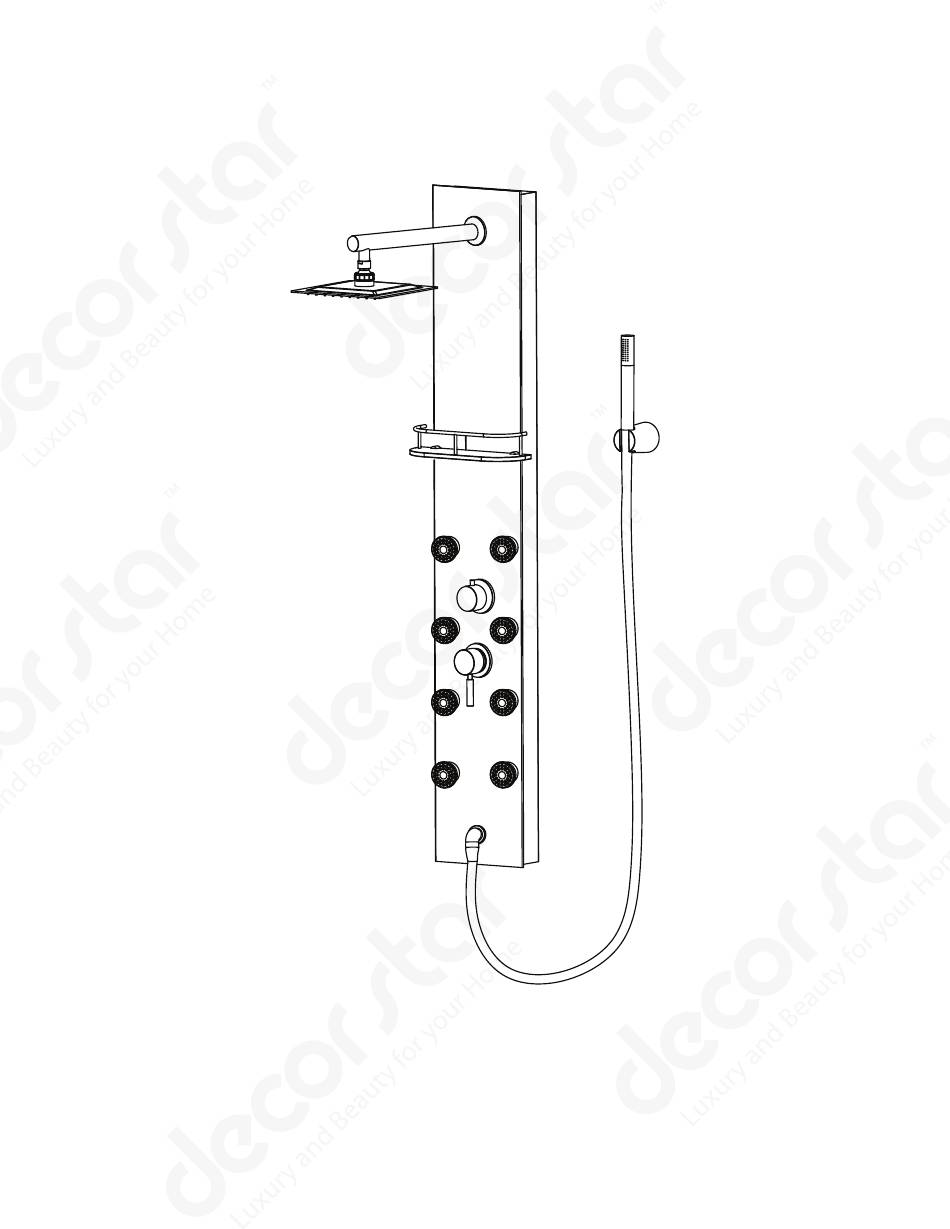

- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI Average Flow Rate: 3.3 gpm at 80 PSI 240mm 340mm 9.45” 13.39” 1300mm 51.18” 710mm 27.95” 430mm 16.93” 270mm 10.63” 70mm 2.76” *All Measurements are Approximate Decor Star PL-026-GS Rev. A2 082016...
- Page 6 09. Rubber Washer 10. Rainfall Shower Supply Connector 11. Hand Shower 12. Hand Shower Cradle 13. Rubber Washer 14. Hand Shower Hose 15. Screw x 4 16. Mounting Bracket x2 17. Wall Anchors x 4 Decor Star PL-026-GS Rev. A2 082016...
-
Page 7: Installation
PVC tubing to complete the connection. 3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 710mm or 27.95”) 710mm 27.95” Decor Star PL-026-GS Rev. A2 082016... - Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Decor Star PL-026-GS Rev. A2 082016...
- Page 9 8. Attache shower head. Apply some (NOTE: PTFE tape on the thread to prevent leaking) 9. Connect hand shower hose to the main panel body. Install the rubber washer. Decor Star PL-026-GS Rev. A2 082016...
- Page 10 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Decor Star PL-026-GS Rev. A2 082016...
- Page 11 6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Decor Star PL-026-GS Rev. A2 082016...
