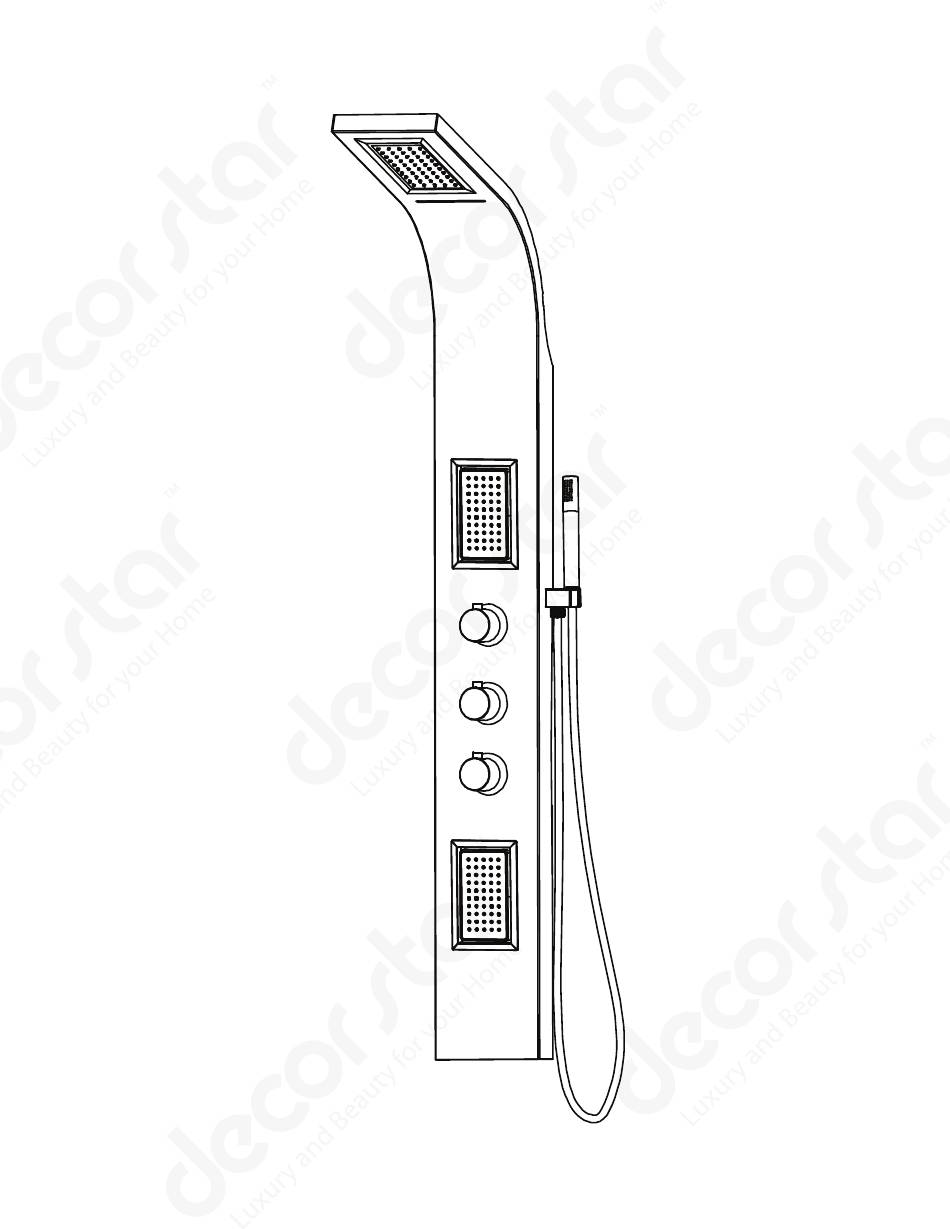

- Page 1 Decor Star PL-029-SS Features - Stunning stylish European inspired design - Chrome square stainless steel rainfall shower head - Adjustable massage jets Decor Star PL-029-SS Rev. A1 012016...
- Page 2 Thank you for purchasing Decor Star products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-800-879-1197, Monday - Friday 10AM - 5PM Pacifi c Time. Or by email at support@decorstarusa.com.
- Page 3 • A laundry outlet box such as the Sioux Chief Ox Box can be used to speed up the installation process of the shut off valves. Decor Star PL-029-SS Rev. A1 012016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Decor Star PL-029-SS Rev. A1 012016...
- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 180mm 495mm 7.09” 19.49” 1620mm 63.78” 720mm 28.35” 755mm 29.72” 500mm 410mm 16.69” 16.14” 72mm 2.83” *All Measurements are Approximate Decor Star PL-029-SS Rev. A1 012016...
- Page 6 02. Hand Shower Water Supply Connector 03. Locking Nut 04. Hand Shower 05. Hand Shower Cradle 06. Rubber Washer 07. Hand Shower Hose 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Decor Star PL-029-SS Rev. A1 012016...
-
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before installing the wall anchors, use a small piece of painters tape or masking tape over the drill area. This will prevent damages to the tile) 1” Decor Star PL-029-SS Rev. A1 012016... - Page 8 Apply silicon sealant on left and right sides of the shower panel. (NOTE: do not seal the bottom of the panel, this will allow any possible future leaks to drain out the panel) Decor Star PL-029-SS Rev. A1 012016...
- Page 9 Installation (cont.) 7. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Decor Star PL-029-SS Rev. A1 012016...
-
Page 10: Operation
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Decor Star PL-029-SS Rev. A1 012016...
