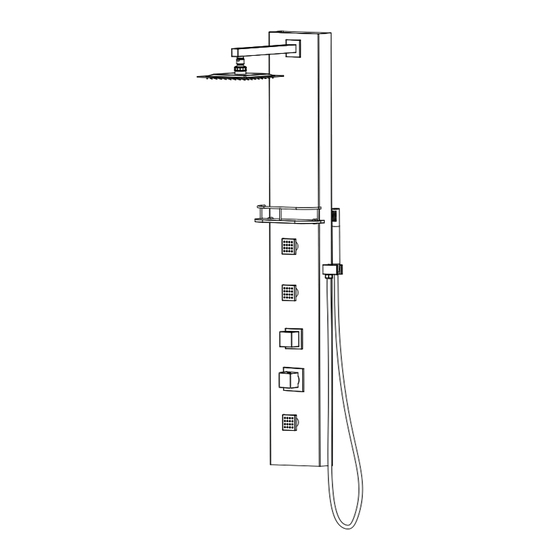

Decor Star PL-021-SS
Features
- Stunning stylish European inspired design
- Durable stainless steel frame construction
- Square stainless thin profile shower head
- 3 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Decor Star
1
PL-021-SS Rev. A3 012016
Advertisement
Related Manuals for Decor Star PL-021-SS
Summary of Contents for Decor Star PL-021-SS
- Page 1 - Durable stainless steel frame construction - Square stainless thin profile shower head - 3 swivel massage jets - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf Decor Star PL-021-SS Rev. A3 012016...
- Page 2 Thank you for purchasing Decor Star products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-800-879-1197, Monday - Friday 10AM - 5PM Pacifi c Time. Or by email at support@decorstarusa.com.
- Page 3 • A laundry outlet box such as the Sioux Chief Ox Box can be used to speed up the installation process of the shut off valves. Decor Star PL-021-SS Rev. A3 012016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Decor Star PL-021-SS Rev. A3 012016...
- Page 5 IGC 154-2013 and ASME A112.18.1-2012/CSA B125.1-12 Recommended Operating Pressure: 50 - 80 psi Approx. flow rate: 2.3 gpm at 80 psi 180mm 355mm 7.1” 14” 1,400mm 55.11” 815mm 32.09” 635mm 25” 290mm 210mm 11.42” 8.27” 70mm 2.76” Decor Star PL-021-SS Rev. A3 012016...
-
Page 6: Parts List
09. Valve 10. Hand Shower Water Connector 11. Nut 12. Gasket 13. Locking Nut 14. Gasket 15. Rainfall Shower Water Connector 16. Screws X 4 17. Mounting Brackets X 2 18. Wall Anchors X 4 Decor Star PL-021-SS Rev. A3 012016... -
Page 7: Installation
PVC tubing to complete the connec- tion. 3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 32.09” or 815mm) 815mm 32.09” Decor Star PL-021-SS Rev. A3 012016... - Page 8 6. Apply thread sealant tape to the thread- ing on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Decor Star PL-021-SS Rev. A3 012016...
- Page 9 8. Attache shower head. 9. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Decor Star PL-021-SS Rev. A3 012016...
- Page 10 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Decor Star PL-021-SS Rev. A3 012016...
-
Page 11: Operation
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Decor Star PL-021-SS Rev. A3 012016...
