Decor Star PL-004-SS
Features
- Stunning stylish European inspired design
- Elegant durable stainless steel frame construction
- 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower)
- Independent valve control for each of the shower functions
- All shower functions can be turned on at the same time
- Thermostatic valve control minimize the chance of scald
- Contemporary brass hand shower
Decor Star
1
PL-004-SS Rev. A4 122015
Advertisement
Related Manuals for Decor Star PL-004-SS
Summary of Contents for Decor Star PL-004-SS
- Page 1 - Independent valve control for each of the shower functions - All shower functions can be turned on at the same time - Thermostatic valve control minimize the chance of scald - Contemporary brass hand shower Decor Star PL-004-SS Rev. A4 122015...
- Page 2 Thank you for purchasing Decor Star products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-800-879-1197, Monday - Friday 10AM - 5PM Pacifi c Time. Or by email at support@decorstarusa.com.
- Page 3 • A laundry outlet box such as the Sioux Chief Ox Box can be used to speed up the installation process of the shut off valves. Decor Star PL-004-SS Rev. A4 122015...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Decor Star PL-004-SS Rev. A4 122015...
- Page 5 Body Jets: 3.06 gpm Overhead Jets: 2.85 gpm Overhead Waterfall: 3.04 gpm Combined: 3.62 gpm 180mm 499mm 7.09” 19.65” 1,600mm 62.99” 850mm 760mm 33.46” 29.92” 480mm 18.9” 380mm 14.96” 60mm 2.36” *All Measurements are Approximate Decor Star PL-004-SS Rev. A4 122015...
- Page 6 03. Hand Shower 04. Hand Shower Cradle 05. Rubber Washer 06. Hand Shower Hose 07. Hand Shower Water Connector 08. Gasket 09. Screws X 4 10. Mounting Brackets X 2 11. Wall Anchors X 4 Decor Star PL-004-SS Rev. A4 122015...
-
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before installing the brackets, use a small piece of painters tape or masking tape over the drill area to prevent damages to the tile) 1” Decor Star PL-004-SS Rev. A4 122015... - Page 8 Apply silicon sealant on left and right sides of the shower panel. (NOTE: Do not seal the bottom of the panel, this will allow any possible future leaks to drain out the panel) Decor Star PL-004-SS Rev. A4 122015...
- Page 9 Installation (cont.) 7. Connect hand shower hose to the main panel body. Install the screen washer to pre- vent debris from entering hose. 8. Attach the hand shower to the hose. Install the rubber washer. Decor Star PL-004-SS Rev. A4 122015...
-

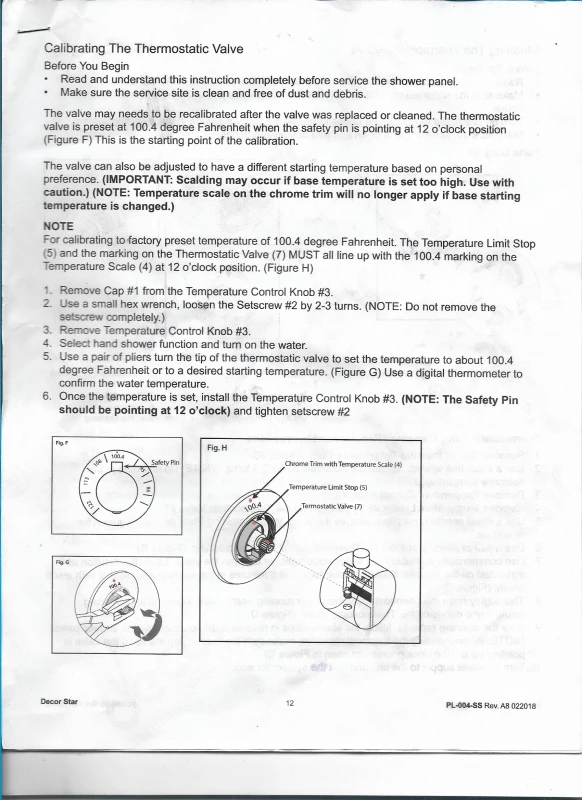

Page 10: Operation
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Decor Star PL-004-SS Rev. A4 122015...
