Sena SFR - Low Profile Motorcycle Bluetooth Communication System Quick Start Guide

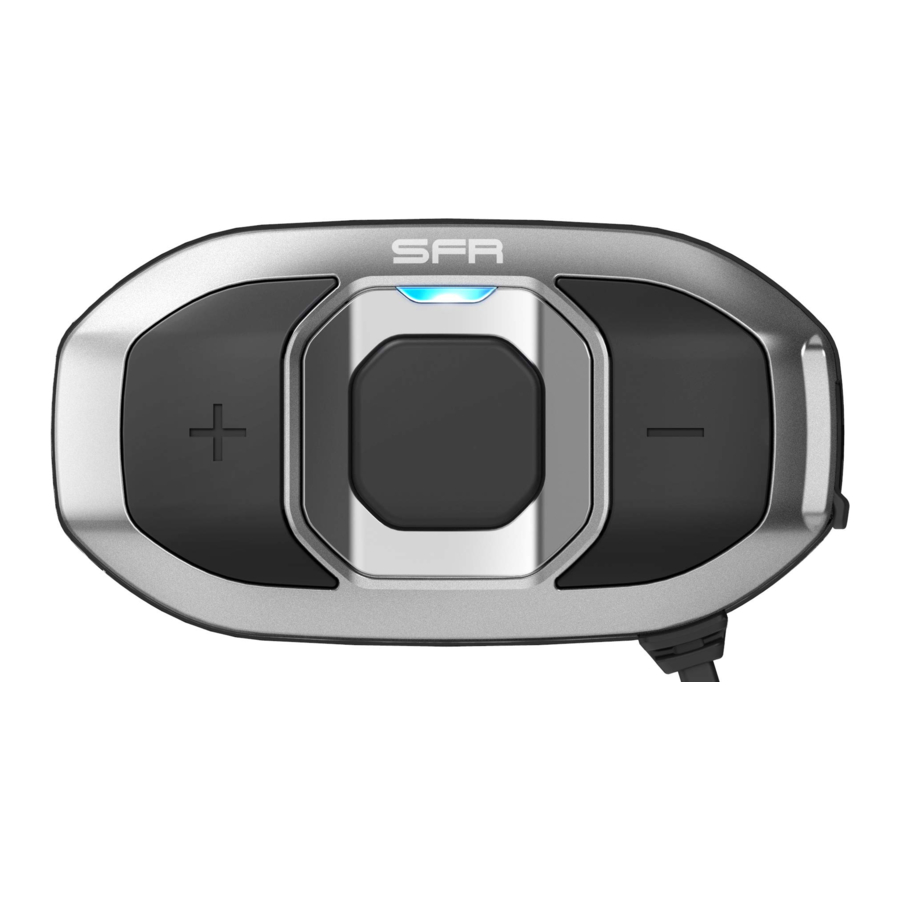

Overview

Overview

  1. Charging LED
  2. (–) Button
  3. (+) Button
  4. Center Button
  5. Speaker Connectors
  6. Microphone Connector

Ride Connected

Blast your favorite tunes, talk over the intercom with your buddies, hear directions from your GPS and more, all through your headset. With built-in Bluetooth® capabilities, Audio Overlay™, HD speakers and a microphone using Advanced Noise Control™, technology has never felt so minimal or freeing.


BLUETOOTH 4.1

INTERCOM
1.2 KM / 0.8 MILES

FOUR-WAY INTERCOM

ADVANCED NOISE CONTROL

AUDIO OVERLAY

AUDIO SOURCE PRIORITY

FM SHARING

MUSIC SHARING

Getting Started

  1. This product comes with a Quick Start Guide, which is a basic version of the User's Guide.
  2. Update this product for free with the latest firmware to fully enjoy the new advanced features built into this product. Visit sena.com/device-manager-download/ to see how to update your product.
  3. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products.

Installation


  1. Installation Step 1

  2. Installation Step 2

  3. Installation Step 3

  4. Installation Step 4

  5. Installation Step 5

Charging

Charging

    • Red: Charging
    • Blue: Fully charged

Button Operation


Tapping


Double Tapping


Press for 1 sec


Press and Hold

Power On/Off

Power On/Off

Volume Adjustment

Volume Adjustment

Battery Check

Battery Check

Phone, Music Pairing

Pairing

Music Operation

/ Play/Pause
Track Backward
Track Forward

Mobile Phone Call Making and Answering


Answer
Answer a Call

End
End a Call

Voice Dial
Voice Dial

Speed Dial
Speed Dial

Reject
Reject a Call

Intercom

Pairing

Intercom Pairing

Start/End

  • 1st Friend
    1st Friend Connection
  • 2nd Friend
    2nd Friend Connection
  • 3rd Friend
    3rd Friend Connection

Radio

On/Off

Radio On/Off

Seek Stations

Seek Stations

Scan Up FM Band

Scan Up FM Band

Save to preset while scanning

Save to Preset

Setting

Configuration Menu

Configuration Menu

Using the Sena Device Manager

You can upgrade the headset's firmware and configure its settings directly from your PC or Apple computer.

Download the Sena Device Manager, please visit sena.com.

Using the Sena SF Utility App

You can configure its settings directly from your smartphone. Download the Sena Smartphone App for Android or Apple operating systems from sena.com/SFseries-app.

Troubleshooting

Factory Reset

If you want to restore the SFR to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off.

Quick Reference

Type Operation Button Command
Basic Function Power on Press the Center Button and the (+) Button for 1 second
Power off Tap the Center Button and the (+) Button
Volume up/down Tap the (+) Button or the (-) Button
Microphone Mute Press the Center Button and the (-) Button for 1 second
Mobile Phone Answer mobile phone call Tap the Center Button
End mobile phone call Press the Center Button for 2 seconds
Voice dial Press the Center Button for 3 seconds
Speed dial Press the (+) Button for 3 seconds
Reject incoming call Press the Center Button for 2 seconds
Music Play/Pause Bluetooth music Press the Center Button for 1 second
Track forward/back Press the (+) Button or the (-) Button for 1 second
Intercom Intercom pairing Press the Center Button for 5 seconds
Tap the Center Button of any one of the two headsets
Start/End each intercom Tap the Center Button
End all intercoms Press the Center Button for 3 seconds
Start Group Intercom Tap the (+) Button and the (-) Button at the same time
End Group Intercom Press the Center Button for 3 seconds
FM Radio FM radio on/off Press the (-) Button for 1 second
Select preset Press the Center Button for 1 second
Seek stations Double tap the (+) Button or the (-) Button
Scan up FM band/stop scanning Press the (+) Button for 1 second
Save preset while scanning Tap the Center Button


Sena Technologies, Inc.
www.sena.com
Customer Support: support.sena.com
E-mail: support@sena.com

MP0501739_1.0.0_EN_July2018
