Sena 5S for 5S-02 Quick Start Guide

RIDE CONNECTED

Blast your favorite tunes, talk over the intercom with your buddies, hear directions from your GPS and more, all through your Sena 5S headset. With built-in Bluetooth^® capabilities, HD speakers and a microphone using Advanced Noise Control™, technology has never felt so minimal or freeing.

	Bluetooth® 5.0
	Two-way Intercom
	Intercom up to 700 m (0.4 mi)*
	HD Speakers
	Audio Multitasking™
	Multi-Language Voice Command

* in open terrain

GETTING STARTED

1. This product comes with a Quick Start Guide, which is a basic version of the User's Guide.
2. Update this product for free with the latest firmware to fully enjoy the new advanced features built into this product. Visit sena.com to see how to update your product.
3. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products.

How to Use This Guide

The legend and callouts are here to help you read the illustrations. New technology can be confusing, but we have created a simple way to perform actions using illustrations.

Buttons

1. Phone Button

2. Jog Dial


Icon Legend

Tap button/Jog Dial the specified number of times

Press and Hold button/Jog Dial for the specified amount of time

Rotate Jog Dial clockwise (right) or counterclockwise (left).

Rotate while Pressing Jog Dial clockwise (right) or counterclockwise (left).

Audible prompt

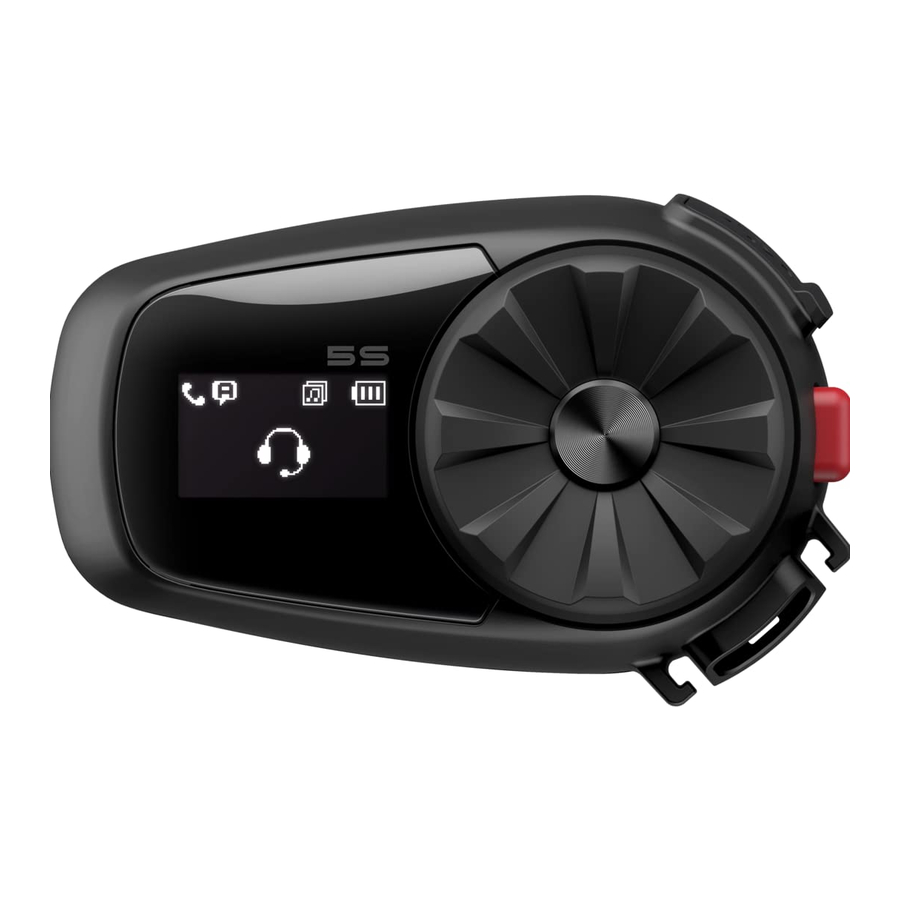

Product Details

1. DC Power Charging & Firmware Upgrade Port
2. Phone Button
3. Speaker and Microphone Port
4. Jog Dial
5. LCD Display

LCD Display

1. Status
2. Active Function
3. Battery Indicator

QUICK START GUIDE

Installation

Using the Clamp Unit

Using the Glued Surface Mounting Plate

Installing the Speakers and the Microphone

Sena Utility App

By simply pairing your phone with your headset, you can use the Sena Utility App for quicker and easier set up and management.

• Download
  • Android: Google Play Store > Sena Utility
  • iOS: App Store > Sena Utility

Sena Device Manager

The Sena Device Manager allows you to upgrade the firmware and configure its settings directly from your PC or Apple computer.

Download the Sena Device Manager from sena.com.

Basic Operations

Powering On

Powering Off

Volume Up

Volume Down

Checking the Battery Level

		=	High
		=	Medium
		=	Low
		=	Extremely Low

Phone Pairing

There are three ways to pair the phone.

Initially Pairing the 5S

The headset will automatically enter the phone pairing mode when you initially turn on the headset or in the following situations:

• Rebooting after executing the Factory Reset feature; or
• Rebooting after executing the Delete All Pairings feature.

Note:

• The phone pairing mode lasts for 3 minutes.
• To cancel phone pairing, tap the Phone Button or Jog Dial.

Pairing When the 5S is Turned Off

Press and hold the Phone Button and Jog Dial for 3 seconds when the 5S is turned off.

Pairing When the 5S is Turned On

Press and hold the Phone Button for 5 seconds when the 5S is turned on.

Mobile Phone

LCD Display

		=	Incoming Call
		=	Outgoing Call
		=	On the Phone Call
		=	Reject a Call

Answer a Call

End a Call

Reject a Call

Make Call with Voice Dialer

Music Controls

Play/Pause

Track forward

Track backward

Bluetooth Intercom

Up to three other people can be paired with the headset for Bluetooth intercom conversations.

Intercom Pairing

Pairing with Intercom B

Note: Repeat the step above to pair with Intercom Friends C & D.

Last-Come, First-Served

Start/End with Intercom Friend 1

Start/End with Intercom Friend 2

Start/End with Intercom Friend 3

Intercom Conversation with Intercom Friend

Configuration Menu

Accessing the Headset Configuration Menu

Navigating Between Menu Options

Execute Menu Options

Troubleshooting

Factory Reset

Fault Reset

Note: Fault Reset will not restore the headset to factory default settings.

QUICK REFERENCE

TYPE	OPERATION	BUTTON COMMANDS
Basic Operations	Power on / Power off
	Volume up / Volume down
Mobile Phone	Answer phone call
	End phone call
	Reject phone call
	Speed dial
	Make Call with Voice Dialer
Music	Play/Pause music
	Track forward
	Track backward
Intercom	Intercom pairing
	Start/End intercom

Sena Technologies, Inc.
Customer Support: sena.com

1.1.0_October2021
