Rear Features

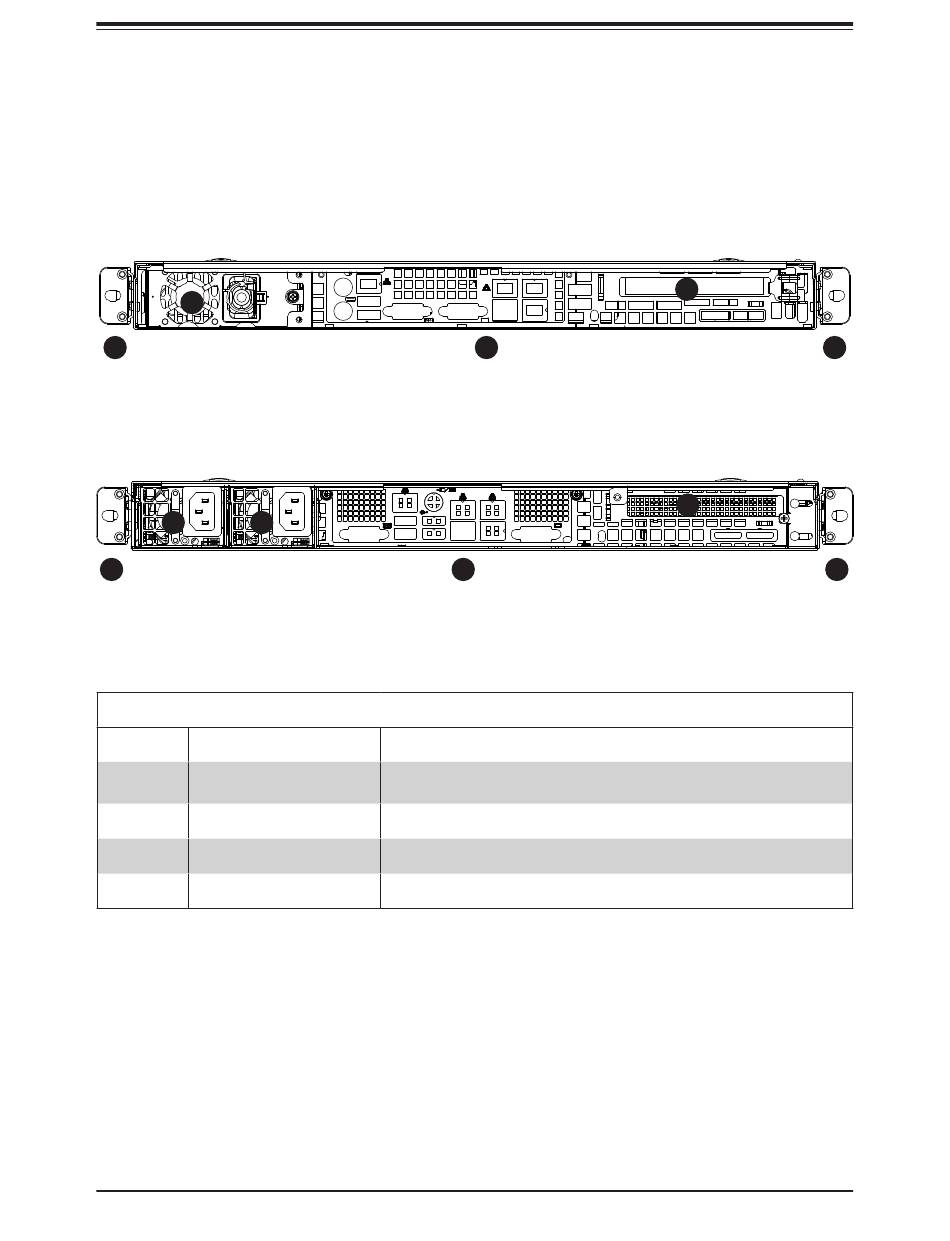

The illustration below shows the features included on the rear of the chassis.
1029P-MT
1
-C-
4
1029P-MTR
1 1
-B-
4
Item Feature
1 Power Supply
2 I/O Back Panel
3 Expansion Card Slot
4 Rack Ear Brackets
2
2
Figure 1-3. Chassis Rear View
Rear Chassis Features
Description
1029P-MT: 600W single power supply (p/n PWS-605P-1H)
1029P-MTR: 600W redundant power supplies (p/n PWS-608P-1R)
Rear I/O ports (see Section 4.3)
Slot for one expansion card (requires pre-installed riser card)
Attaches server chassis to the rack
