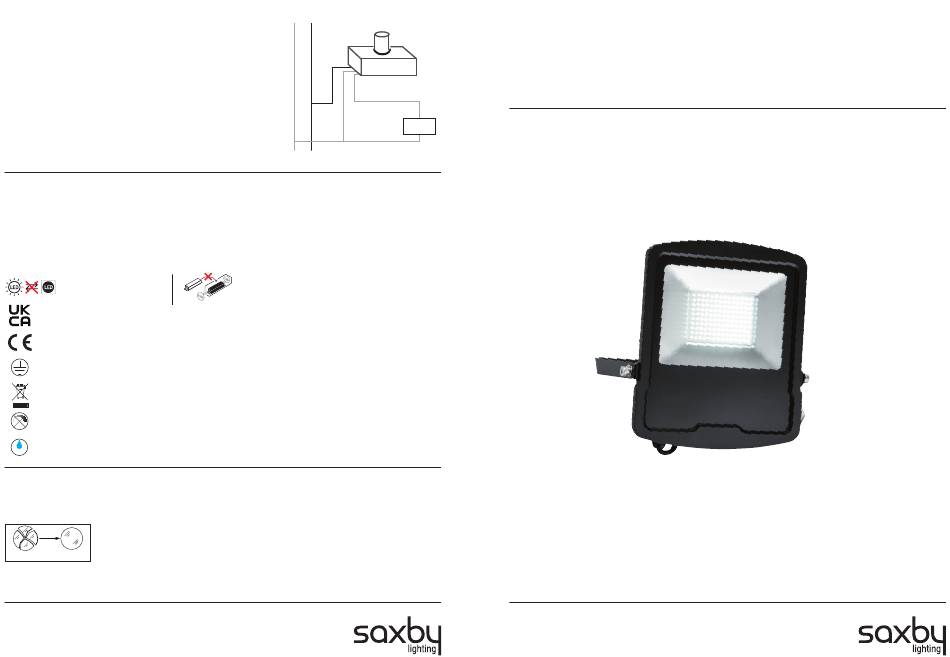

Saxby Lighting Mantra 78971 Instruction Manual

Wiring with the Photocell
Disconnect power, remove junction box cover, place the SWITCH in knockout
hole and fasten with locknut.
Wire according to the diagram in right hand. Do not install the switch with the
Photocell facing artificial or reflected light. This will cause the hit to cycle on
and off at night.
The Max rate loading is 500W for Tungsten or 800VA Ballast,
the Max of 5 fitting can be linked(100W)
The Max rate loading is 500W for Tungsten or 800VA Ballast,
the Max of 3 fitting can be linked(150W)
The Max rate loading is 500W for Tungsten or 800VA Ballast,
the Max of 2 fitting can be linked(200W)

Technical data

Supply
220-240 V~, 50 Hz
Voltage:
Bulb
78971 : 100W LED Module (SMD), 6500K This product contains a light source of energy efficiency class F.
Type:
78972 : 150W LED Module (SMD), 6500K This product contains a light source of energy efficiency class E.
78973 : 200W LED Module (SMD), 6500K This product contains a light source of energy efficiency class E.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP65.
65
IP

Care and Safety

We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/78971
V4 07/01/2022
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Line
Eye
SWITCH
Red
Black
LOAD
White
Neutral
Non-replaceable control gear
Instruction manual
Mantra Floodlight
78971, 78972, 78973
