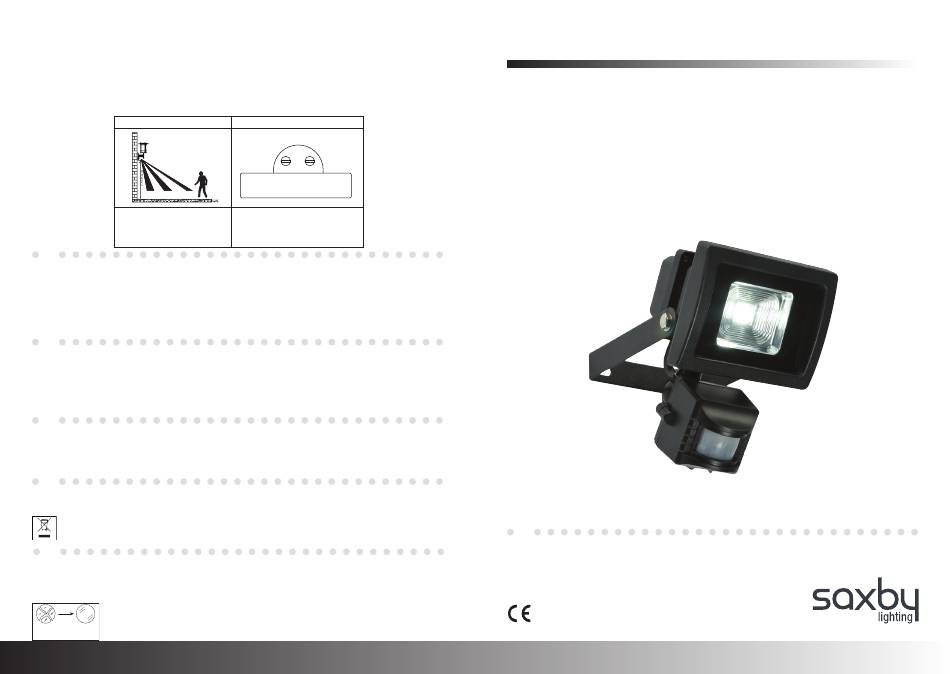

PIR Adjustment
• The unit must be installed in a vertical position, and
fitted 2m-4.5m above the ground.
• The PIR sensor can be adjusted. The detection angle
is set at 120 degrees. The duration that the lamp
stays on can be altered from 5 seconds - 10 minutes
Fixed 1 - 6 metres
2M
4M
6M
Detection range is fixed between 1
and 6 metres
Commissioning
• Loosen the wall bracket bolts, and adjust the fitting
to the desired position. Ensure that the cable is not
snagged. Re-tighten the bolts.
Fitting/replacing bulbs
• This system contains non-replaceable parts and
cannot be serviced. If damage occurs the part should
be scrapped.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before cleaning.
The LED's are protected by a lens. This part must be replaced immediately should the lens become
Replace Cracked
cracked or damaged. This fitting must not be used without the lens in place.
Shade
www.saxbylighting.com
± 2 minutes. Use a small screwdriver to adjust the
'TIME' and 'DAYLIGHT' screws. When adjusting the
sensitivity (detection distance) in daylight it will be
necessary to cover the sensor to simulate night time.
Base of product
TIME
DAYLIGHT
Duration the bulb stays on is
adjustable by turning 'TIME' screw
The daylight sensitivity is adjustable
by turning 'DAYLIGHT' screw.
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Iss.1 12032014
Saxby Lighting Ltd. BH23 3PE
Instruction leaflet
Olea 10W PIR Flood Light
48742
