PIR Adjustment
• The unit must be installed in a vertical position, 2m –
4.5m above the ground
• By altering the "DAYLIGHT" control you can choose
whether movement during daylight or darkness will
switch the light on.
Base of product
DAYLIGHT
Duration the bulb stays on is
adjustable by turning 'TIME' screw
Commissioning
• Loosen the wall bracket bolts, and adjust the fitting
to the desired position. Ensure that the cable is not
snagged. Re-tighten the bolts.
Fitting/replacing bulbs
• This system contains non-replaceable parts and
cannot be serviced. If damage occurs the part should
be scrapped.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before cleaning.
The LED's are protected by a lens. This part must be replaced immediately should the lens become
cracked or damaged. This fitting must not be used without the lens in place.
www.saxbylighting.com
• The detection angle is set at 120 degrees.
• The duration the lamp stays on for can also be altered
from 10 seconds to 10 minutes by adjusting the
"TIME" control.
TIME
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Iss.3 19082015
Saxby Lighting Ltd. BH23 3PE

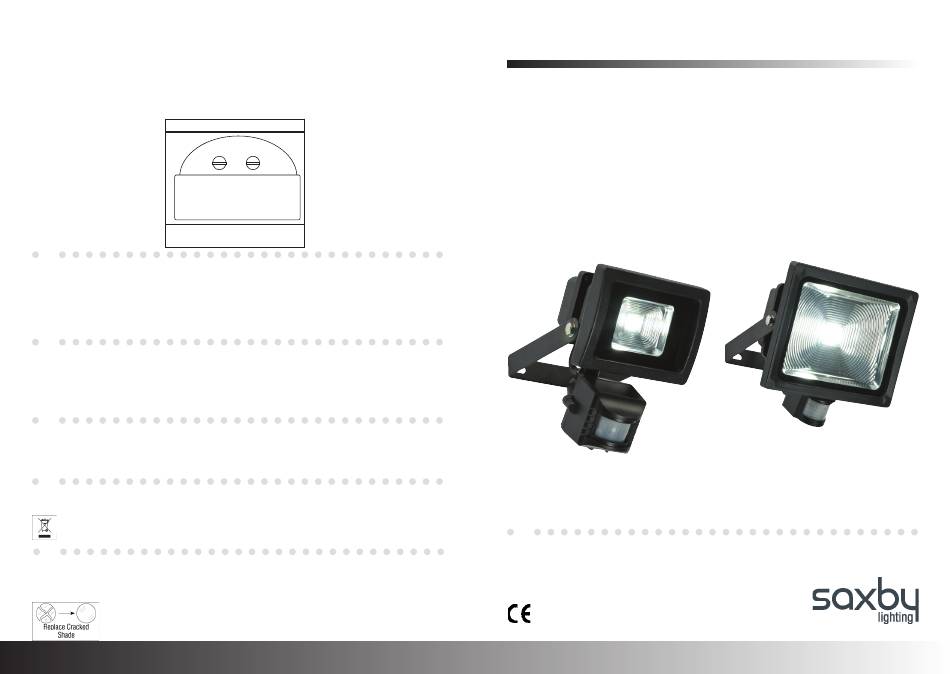

Instruction leaflet

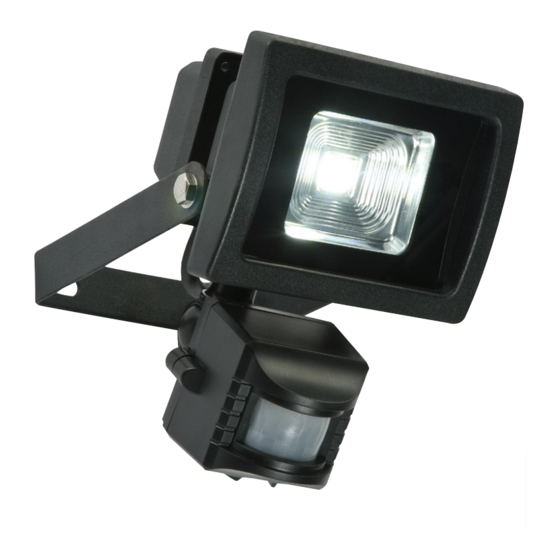

Olea PIR Flood Light
48742, 48746
