Saxby Lighting 98443 Instruction Manual

Accessories available:
98447, 91864, 91865, 91866
These units must be installed in a vertical position, and fitted up to 1.8-2.5m above the ground.
PIR sensor: 98447(white) / 91864(black)
The PIR sensor can be adjusted by turning the 'SENS' and 'TIME' screw using the small
screwdriver, allowing the detection distance to be altered to suit the location. The
detection angle is set at 120º. The detection range up to max 10 metres (＜24 ºC). The
duration that lamp stays on can also be altered from 10±3 seconds - 7±2 minutes.
When adjusting the sensitivity (detection distance) in daylight it will be necessary to cover
the sensor to simulate night time.
MANUAL OVERRIDE FUNCTION:
• How to activate override mode: When the sensor is in automatic sensor mode and the light
is ON, turn OFF-ON-OFF-ON the wall switch within 3 seconds, and the sensor will be in
override mode - the light will illuminate continuously.
• How to return to automatic sensor mode: Switch off the wall switch, wait 10 seconds and
then switch it back on, then the sensor will be back in automatic sensor mode.
MV sensor: 91865(black)
The PIR sensor can be adjusted by turning the 'SENS' and 'TIME' screw using the small
screwdriver, allowing the detection distance to be altered to suit the location. The detection
angle is set at 120º. The detection range up to max 10 metres. The duration that lamp stays
on can also be altered from 10±3 seconds - 7±2 minutes. When adjusting the
sensitivity (detection distance) in daylight it will be necessary to cover the sensor to
simulate night time.
Photocell sensor: 91866(black)
Ambient Light: <10 LUX on, ＞40LUX off
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb 91860 / 98443: 10W LED module (SMD), 4000K
Type:
91862 / 98445: 30W LED module (SMD), 4000K
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This is a Class 1 product and must be earthed.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
Caution! Risk of electric shock!
This product is rated at IP65.
65
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
V3 12/08/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: 1 Gnarrenburg, 27442
Light
Sensor
Plug & play
98447(white) 91864(black)
91865(black) 91866(black)
91861 / 98444: 20W LED module (SMD), 4000K
91863 / 98446: 50W LED module (SMD), 4000K

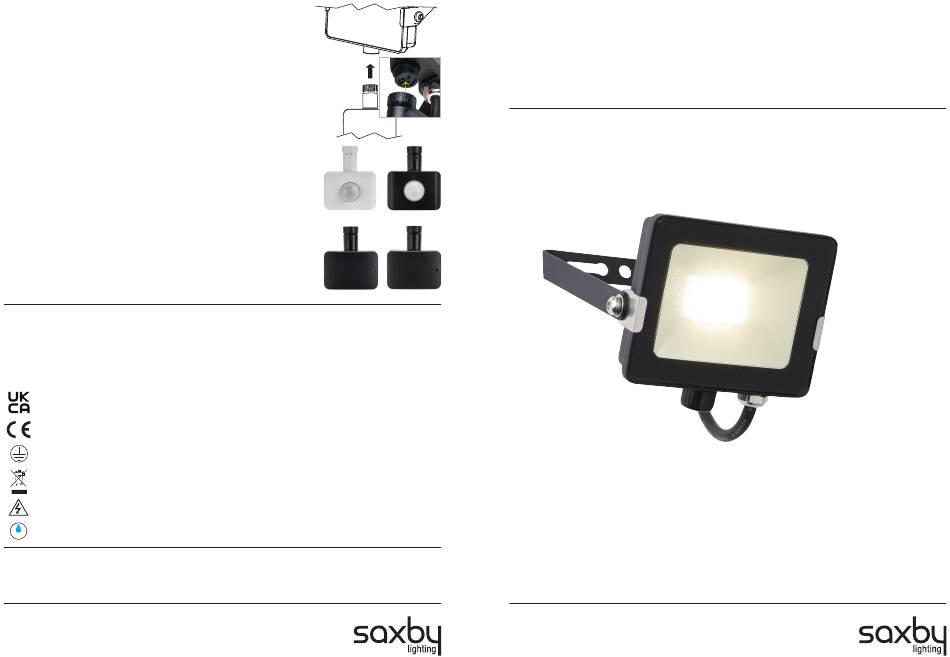

Instruction manual
Salde Floodlight
91860, 91861, 91862, 91863, 98443, 98444, 98445, 98446
