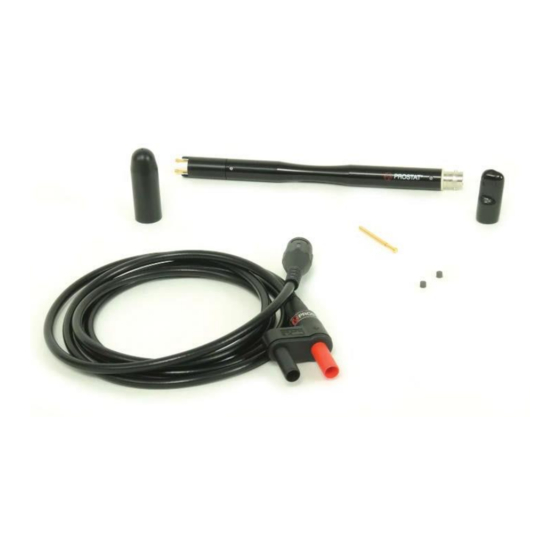

Prostat PRF-922B User Manual

Miniature two-point probe set
Hide thumbs Also See for PRF-922B:
Table of Contents

Advertisement

Quick Links

Download this manual

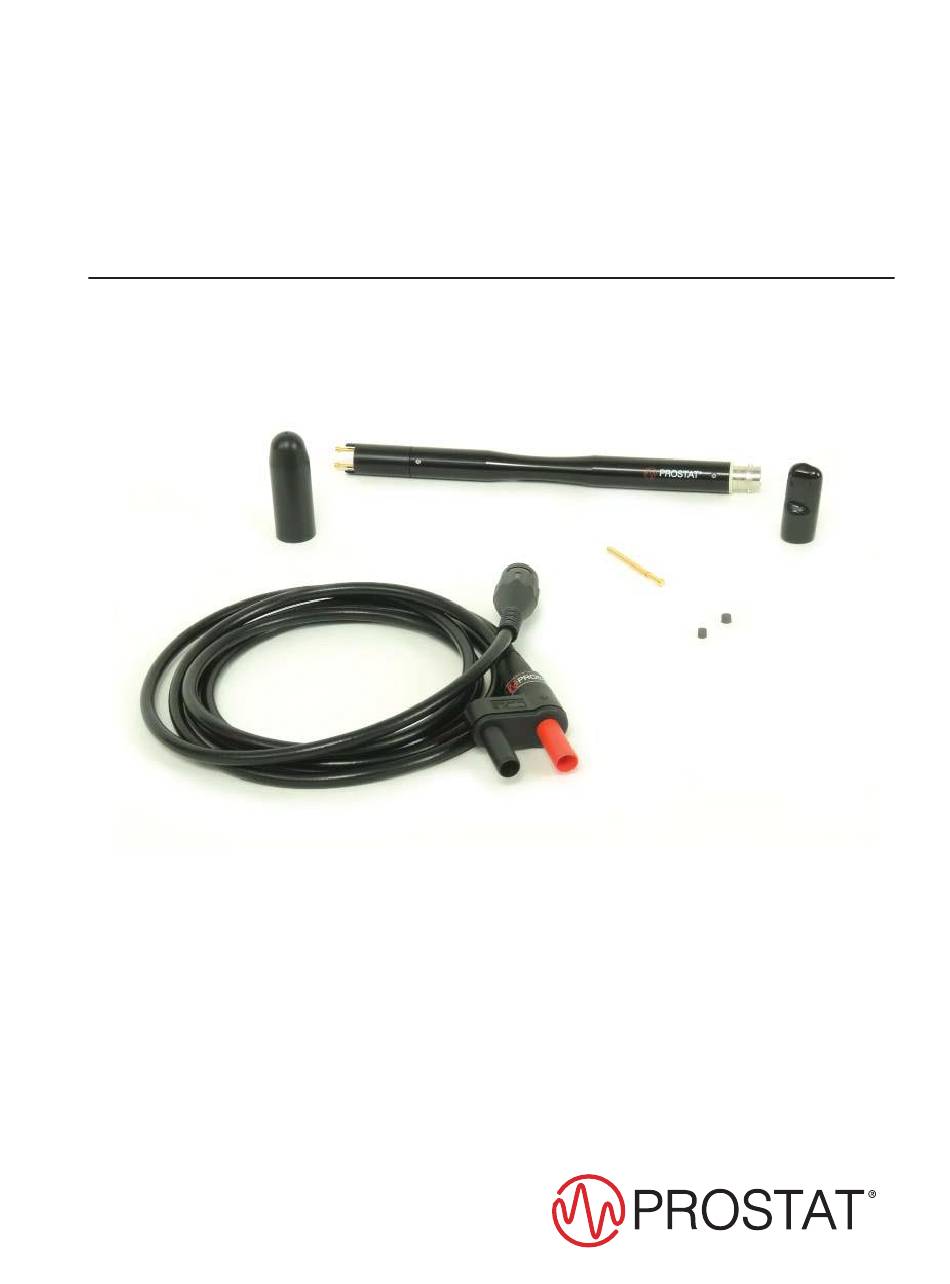

MINIATURE TWO-POINT PROBE SET
PRF-922B
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRF-922B and is the answer not in the manual?

Questions and answers

Related Manuals for Prostat PRF-922B

Summary of Contents for Prostat PRF-922B

  • Page 1 MINIATURE TWO-POINT PROBE SET PRF-922B User Manual...

  • Page 3: Table Of Contents

    Warranty Information General Specifications Copyright © 2012 by Prostat® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact Prostat Corporation, 1072 Tower Lane, Bensenville, IL 60106 USA Prostat is the registered trademark of Prostat®...

  • Page 4: Introduction & Description

    3. The contact assembly’s outer housing incorporates “stops” that insure consistent contact pres- sure during measurement. 4. Overall size of the PRF-922B is 0.50 inches in diameter by 6.75 inches (171 mm) long. This optimal size and shape make the fixture very comfortable and easy to handle. Its outer housing is made of black anodized aluminum.
  • Page 5 Never, under any conditions, exceed 500 volts during fixture test or repair. B. Other Operational Precautions 1. Do Not Use the PRF-922B Micro Probe if it fails to function during its continuity inspection test. 2. Do Not Use the PRF-922B Micro Probe if it becomes damaged in any way 3.

  • Page 6: Prf-922B Micro Probe & Prv-913B Verifier Operations

    flammable areas. 7. Do not attempt to measure energized materials, items or circuits with the PRF-922B 8. The PRF-922B is a precision fixture to be operated by experienced personnel familiar in the use and handling of devices employing energized power supplies.
  • Page 7 1. To confirm general setup and function of the PRF-922B, place the electrodes against a clean metal surface. For example, the plated metal side of the Prostat PTB-920, Dual Surface Test Bed.
  • Page 8 PRF-922B Miniature Two-Point Probe Set a. Hold the PRF-922B vertically, and apply pressure to compress the electrodes, making posi- tive contact with the insulated surface. b. Activate the wide range, resistance instrument to obtain a measurement. In the case where the PRS-801B is the measurement instrument, it should measure 1.00x10...
  • Page 9 For measurements greater than 1.0x10 ohms, use 100 volts NOTE: For optimal performance and accuracy, use the Prostat PRS-801B Resistance System in its AUTOMATIC Mode (either Default Mode 1 [Ohms], or Mode 2 [Exponential 1.0EXX/ Ohms] display). AUTOMATIC Mode will control test voltage, resistance range adjustment and electrification period automatically.

  • Page 10: Using The Prf-922B As A One-Point Probe

    A proper measurement would include placing the material, or device under test (DUT), onto a clean metal test bed that is isolated from ground, such as the Prostat PTB-920 Test Bed. This insures that only the material is being measured and the measurement is not affected by voltage variables on ground.

  • Page 11: Resistance To Ground (Rtg) Measurements

    PRF-922B Miniature Two-Point Probe Set charges on its surface. The Operator should also be properly grounded to avoid body charges influencing the measurement. The metal test bed is connected to the resistance instruments positive (+) terminal, which provides volt- age to the test bed during the measurement. The micro probe shielded cable with installed BNC/Banana Adapter is connected to the resistance instruments negative (-) terminal.

  • Page 12: Handling & Maintenance

    VII. Handling & Maintenance A. PRF-922B Miniature Two-Point Probe Fixture 1. Store the PRF-922B in a clean, dry environment with both BNC and Probe covers installed for environmental and mechanical protection. 2. Periodically, remove all spring-loaded test pins. Clean the spring-loaded test probes and Teflon mounting disk with a solution of laboratory grade isopropyl alcohol and a lint-less cloth, or laboratory quality swab.

  • Page 13: Warranty Information

    Limit of Liability – in no event will PROSTAT or any seller be responsible or liable for special, incidental, or consequential losses or damages, under any legal theory including but not limited to contract, negligence, or strict liability.
  • Page 14 PRF-922B Miniature Two-Point Probe Set C. Shipping Non-Warranty Items 1. Any Prostat product returned for non-warranty repair or calibration requires a Return Materials Authorization (RMA) number and should be packaged and shipped as described above, and as di- rected by Prostat’s customer service department.

  • Page 15: General Specifications

    PRF-922B Miniature Two-Point Probe Set PRF-922B Two-Point Probe Specifications PRF-922B Miniature Two-Point Physical Dimensions: Length: 6.75 inches (171mm) without probe covers. 8.25 inches (210mm) with probe covers. Probe diameter 0.49 inches (12.45mm). Probe cover outer diameter 0.60 inches (15.25mm). Probe Weight: 2.0 ounces (58 grams)
  • Page 16 PRF-922B Miniature Two-Point Probe Set NOTES Rev. 2 / 3-18-2019...
  • Page 17 PRF-922B Miniature Two-Point Probe Set NOTES Rev. 2 / 3-18-2019...
  • Page 18 PRF-922B Miniature Two-Point Probe Set NOTES Rev. 2 / 3-18-2019...
  • Page 20 Specifications are subject to change without notice. All Prostat trademarks and trade names are the property of Prostat Corporation. All other trademarks and trade names are the property of their respective companies. P R O F E S S I O N A L...
