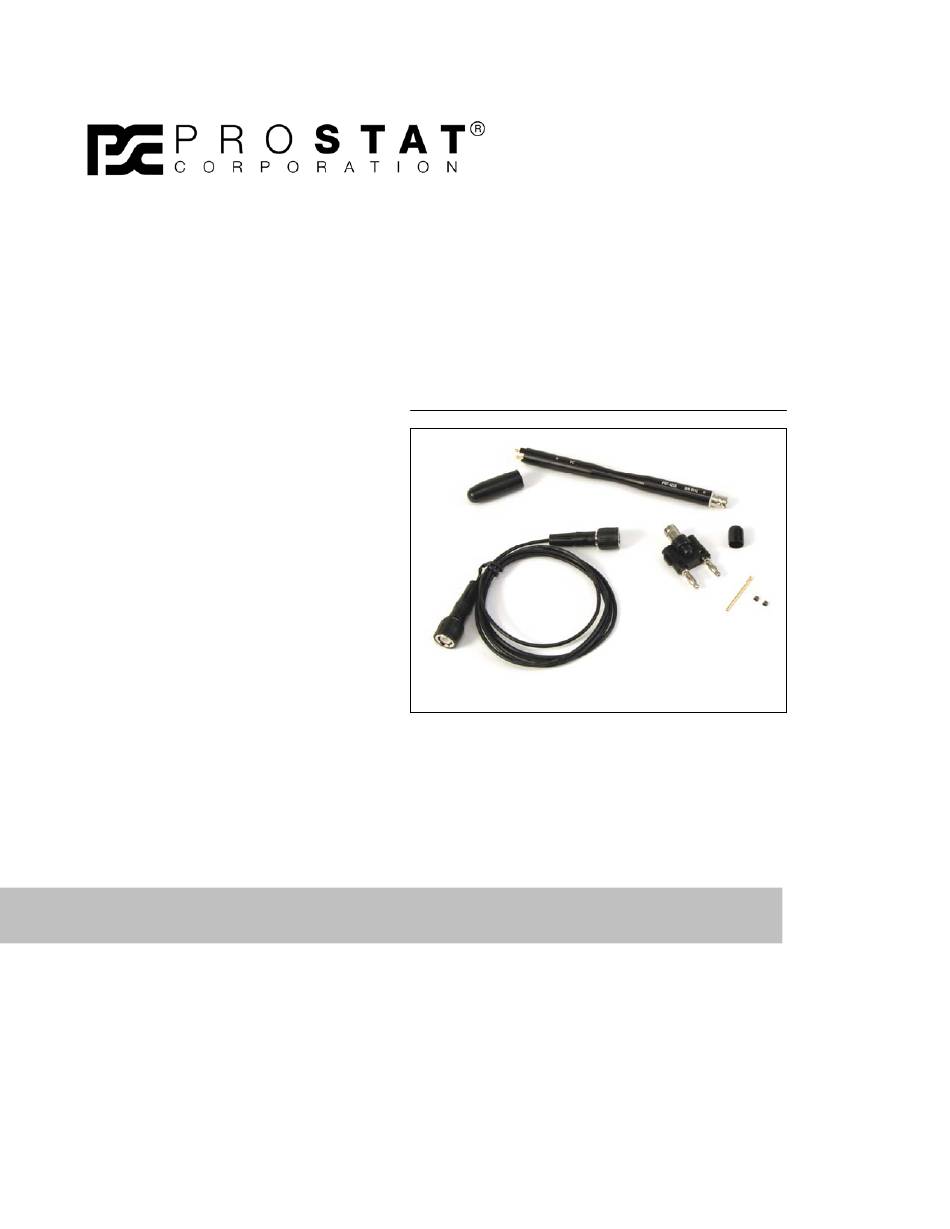

- Page 1 P R O F E S S I O N A L S T A T I C C O N T R O L P R O D U C T S Miniature 2-Point Probe & Adapter Resistance Fixture Set PRF-922B, PRF-922A-B & PRV-913B Operations Manual...
- Page 2 Copyright © 2001-2007 by PROSTAT® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact PROSTAT Corporation, 1072 Tower Lane, Bensenville, IL 60106...
- Page 3 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set TABLE OF CONTENTS ® PROSTAT PRF-922B, PRF-922A-B & PRV-913B TWO-POINT MINIATURE CONCENTRIC RING FIXTURE SET Title Page # Introduction & Description ....................3 Cautions & Warnings ...................... 6 III. PRF-922B Micro Probe & PRV-913B Verifier Operations..........8 Handling &...
- Page 4 3. The contact assembly’s outer housing incorporates “stops” that insure consistent contact pressure during measurement. 4. Overall size of the PRF-922B is 0.50 inches in diameter by 7.0 inches (178 mm) long. This optimal size and shape make the fixture very comfortable and easy to handle.
- Page 5 Use of Measurement Power Supply 1. The PRF-922B is a high performance micro probed designed for use with a maximum input voltage of 100 volts. As such, it is capable of delivering an annoying shock to any person touching the spring-loaded contacts when they are energized.
- Page 6 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set Other Operational Precautions 1. Do Not Use the PRF-922B Micro Probe if it fails to function during its continuity inspection test. 2. Do Not Use the PRF-922B Micro Probe if it becomes damaged in any way 3.
- Page 7 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set 8. The PRF-922B is a precision fixture to be operated by experienced personnel familiar in the use and handling of devices employing energized power supplies. 9. Do Not Drop or cause mechanical damage to these devices.
- Page 8 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set Once the cable and BNC adapter are installed the PRF-922B is ready for continuity test, verification and use (Fig 4). To use, connect dual banana converter to wide range, resistance instrument with ¾...
- Page 9 1. Place material to be measured on an insulated test bed, the clean insulated surface (Black, labeled side) of the PTB-920, or an insulated acrylic plate. 2. Position the PRF-922B vertically directly over test area and lower it until the spring- loaded electrodes makes direct contact with the material under test.
- Page 10 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set 4. Select appropriate instrument test voltage and initiate resistance measurement. ESD Association S11.11 test voltage guidelines for measuring packaging materials are as follows: a. For material resistance measurements of less than 1.0x10 ohms, use <10 volts.
- Page 11 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set Handling & Maintenance A. PRF-922B Miniature 2-Point Probe Fixture 1. Store the PRF-922B in a clean, dry environment with both BNC and Probe covers installed for environmental and mechanical protection. Periodically, remove the spring-loaded test pins.
- Page 12 A. PROSTAT Warranty PROSTAT Corporation expressly warrants that for a period of one (1) year from the date of purchase, that PROSTAT instruments will be free from defects in material (parts) and workmanship (labor). If PROSTAT receives notice of such defect during the warranty period, PROSTAT will replace at its expense such parts that it determines to be defective.
- Page 13 Fax: (630) 238-9717 C. Shipping Non-Warranty Items 1. Any PROSTAT product returned for non-warranty repair or calibration requires a Return Materials Authorization (RMA) number and should be packaged and shipped as described above, and as directed by PROSTAT’s customer service department.
- Page 14 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set PRF-922B, PRF-922A-B & PRV-913B Miniature Concentric Ring Fixture Set Specifications PRF-922B Miniature 2-Point Micro Probe Physical Dimensions: Length: 5.9 inches (150mm) without probe cover. 6.5 inches (165mm) with probe cover. Probe diameter 0.5 inches (12.7mm).
- Page 15 PRF-922B, PRF-922A-B & PRV-913B Two-Point Miniature Concentric Ring Fixture Set Probe Spring 1.5 pounds (0.68 kg) Force/Test: Probe Total Travel: 0.25 inches (6.4mm) Connection: To be used with PRF-912B or PRF-914B Micro Probes Power: Not applicable. Fixture powered by resistance instrument.
- Page 16 Copyright 2001-2007, Prostat Corporation Printed in U.S.A. 1072 Tower Lane, Bensenville, IL 60106 USA www.prostatcorp.com...
