INSTALLATION AND OPERATION MANUAL
This manual serves the following
Model Names:
TER-F01
TER-F01PD
TER-F01 Series
10/100 MBPS ETHERNET REPEATER WITH 60 W PASS-
THROUGH POE

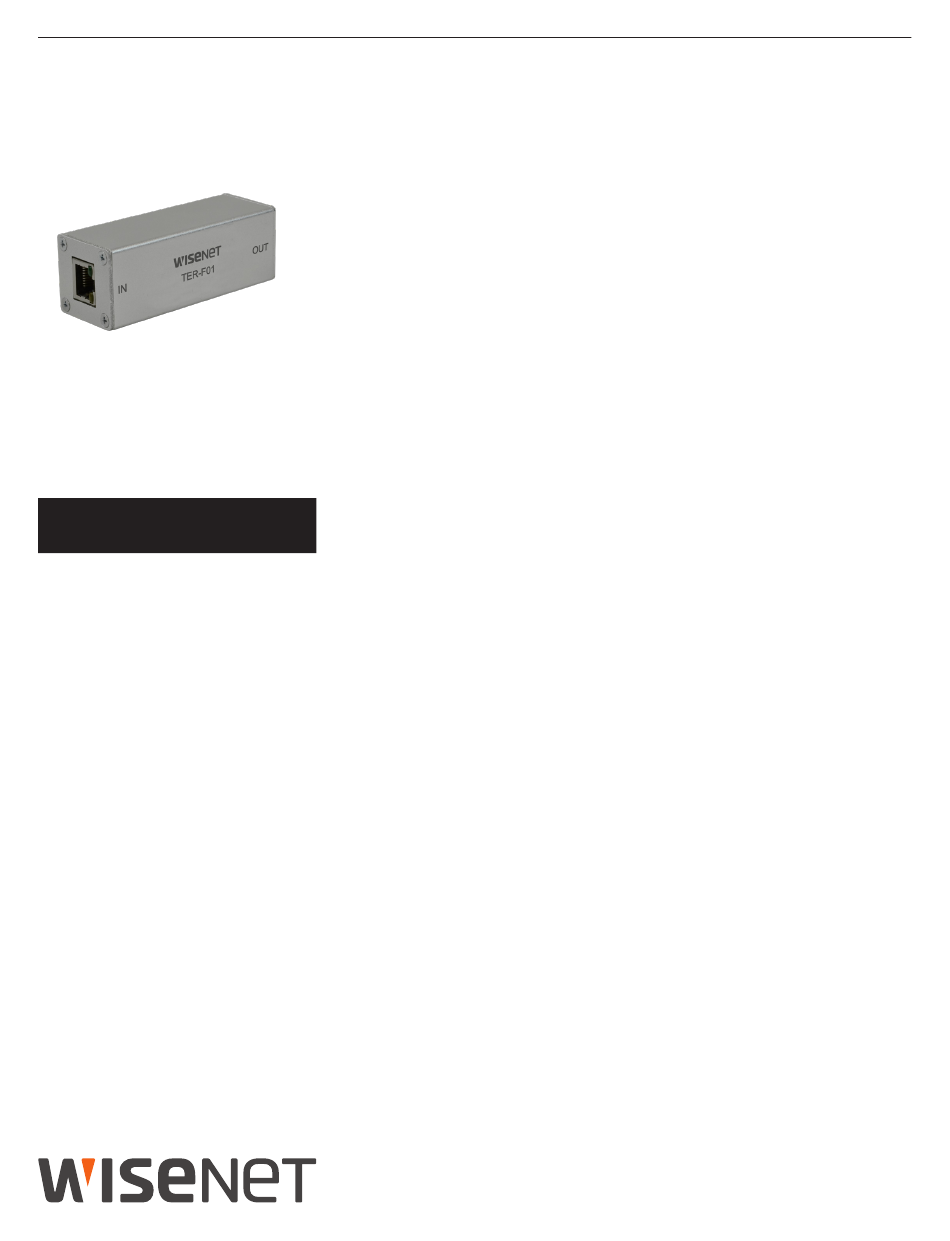

The TER-F01 series is an Ethernet repeater supporting up to 60 watts of Pass-through
PoE, providing a simple and cost-effective way to extend Ethernet signals beyond
the standard Ethernet 328 foot (100 meter) limit. The TER-F01 can be used to
double the distance to 656 feet (200 meters) or multiple units can be combined in
series with each unit providing an additional 328 feet (100 meters). The TER-F01 is
powered by pass-through PoE from a PoE switch or midspan injector, requiring no
local power. Low power consumption ensures that maximum power is made
available to the remote PD device.
The standard configuration passes through the PoE to the next device, or as a PD
model, which acts as the final PoE unit in the chain and does not pass through the PoE.
TER-F01 SERIES
INS_TER-F01[PD] 08/12/19 PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hanwha Techwin WISENET TER-F01 Series
Summary of Contents for Hanwha Techwin WISENET TER-F01 Series
- Page 1 INSTALLATION AND OPERATION MANUAL TER-F01 SERIES TER-F01 Series 10/100 MBPS ETHERNET REPEATER WITH 60 W PASS- THROUGH POE The TER-F01 series is an Ethernet repeater supporting up to 60 watts of Pass-through This manual serves the following PoE, providing a simple and cost-effective way to extend Ethernet signals beyond Model Names: the standard Ethernet 328 foot (100 meter) limit.
- Page 2 INSTALLATION AND OPERATION MANUAL TER-F01 SERIES FIGURE 1 – TER-F01[PD] EXTENDER ETHERNET ETHERNET Power: Supplied by PSE Note: Ports are universal, and either can be used as in or out. Power Consumption: <1 W FIGURE 3 – INDICATING LEDS COPPER Solid –...
- Page 3 INSTALLATION AND OPERATION MANUAL TER-F01 SERIES SPECIFICATIONS Ethernet Mechanical Data Interface 10/100BaseT(X) Ethernet Indicating LEDs Ethernet Link and Activity IEEE 802.3 Compliant Circuit Board Meets IPC Standard Full Duplex or Half Duplex Electrical Ports TER-F01[/PD] Size 3.3 × 1.25 × 1.25 in (8.4 × 3.2 × 3.2 cm) Standards IEEE: 802.3af PoE, 802.3at PoE+ Shipping Weight...
- Page 4 INSTALLATION AND OPERATION MANUAL TER-F01 SERIES FIGURE 2 – TER-F01[PD] Typical Applications Legend Please see the Maximum Transmission Distances Table. Cat-5 Cable PoE Power PoE Pass-Through Mode to PoE Device Extend the Distance with Repeaters to suit your application. 328 ft (100 m) 328 ft (100 m) 10 or 100 Mbps TER-F01...
