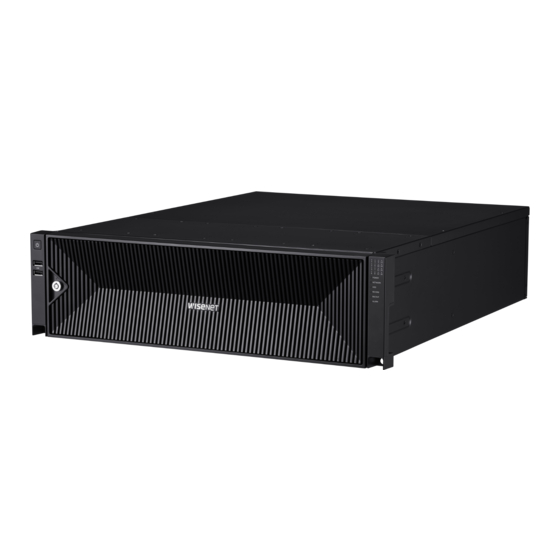

- Page 1 NETWORK VIDEO RECORDER Quick Guide PRN-6400DB4/PRN-6400B4/PRN-3200B4 PRN-6405DB4/PRN-6405B4/PRN-3205B4 XRN-6410DB4/XRN-6410B4/XRN-3210B4...
-
Page 2: Package Contents
Ce produit contient une pile de type bouton/pièce de monnaie. Si la pile de type bouton/pièce de monnaie est avalée, elle peut causer de graves Hanwha Techwin Co., Ltd. is a surveillance camera manufacturer that provides video information equipment brûlures internes en seulement 2 heures et peut entraîner la mort. -
Page 3: Installing The Hdd
Installing the HDD Installing the Rack Use the front cover lock key to unlock the cover. Press the orange button on the hard disk bracket Rack Installation Requirements and Reference Dimensions Grab the front cover with both hands and pull it to the left and pull forward to separate the main to the left to remove it. - Page 4 Recommended rack dimensions Precautions when Using Sliding Shelves Rack back When removing a shelf, fix the rack to the ground Avoid leaning on the installed product or place an so that it does not get toppled. object on it while its shelf is pulled out. Back mounting flange Recorder Front mounting flange...
-
Page 5: Select The Language
How to Install Rack Installation Wizard Setup As shown below, proceed through each step of the <Installation wizard>. Install Wizard can only be accessed at Mount the fixed or sliding shelf onto the 19-inch rack. factory reset. If you do not want to proceed, click <Exit>. ■... - Page 6 Recorder ID/PW Setup Date & Time Setup Sets the administrator's password. Set the date, time, time zone, and DST and then click <Next>. ※ Click < ※ The time zone setup might differ depending on the region that the product is released. >...
-
Page 7: Channel Setting
Explore Screen Configuration Channel Setting You can view the camera videos registered to each channel in split mode along with thumbnail information. To The recorder screen consists of the following. change the camera video position, select a video and drag and drop it to the desired location. ■... -
Page 8: Record Setup
Record Setup Set up and Run the Layout You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event. The layout set on the live screen can also be used for time search and can be searched and played according to the You can check frame rates and data transfer amount of Full Frame and Key Frame recordings for each channel, and channel order and channel combination set by the user. - Page 9 2-1 Search Export recorded video Select the layout of your choice from the channel groups you created in Live. Click < > at the bottom of the screen. Please select a date to search. Select a layout. Select the channel of your choice from the selected channel group. Select a channel.
- Page 10 Using Product Information Using P2P Service You can check the product information/manual/firmware information/FAQ/HDD compatibility list on the homepage This function is available only for products that support P2P. To find products that support P2P, see ‘Products supporting each feature (Page 4)’ of the Product Specification Manual. or mobile web of your smartphone.
-
Page 11: Connecting The Cable
Connecting to a Network Using a Router From now on, when you run the WiseNet mobile application saved to your smartphone, you can easily monitor with your smartphone as you are automatically connected to the recorder. If you want to add 1-3 PCs and recorders in an environment using xDSL/Cable modem, you can use the router with only one Internet line. -
Page 12: System Requirements
Checking the recorder connection from the PC Accessing using DDNS address in the dynamic IP environment In the dynamic IP environment such as xDSL/Cable modem, the router's WAN IP can be changed, so we Enter the IP set in the recorder menu in the local PC address bar. Once you log in by entering your user name provide DDNS (Dynamic Domain Name Server) service so that you can always access the recorder with only and password, the recorder’s web viewer screen will appear. - Page 13 > in item connect to the recorder. Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
