kd frames CHARLESTON 3992-CP-F Instructions

Instructions for the

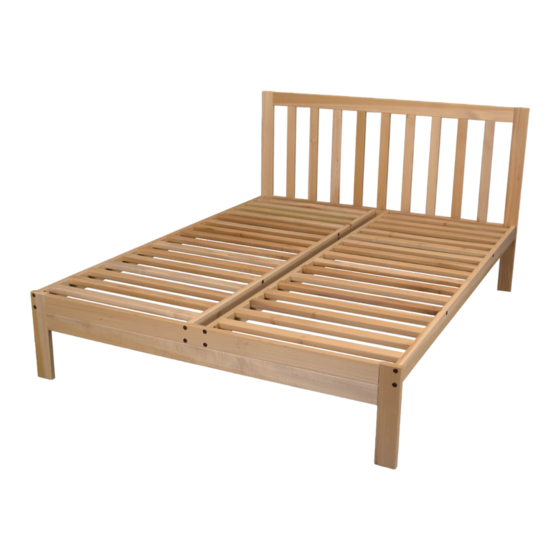

CHARLESTON PLATFORM BED - FULL
P A R T S
A-48-H headboard top (1) - 48"
A-48-HB headboard bottom (1) - 48"
A-54-F bed end (1) - 54"
A-24 regular slats (26) - 24"

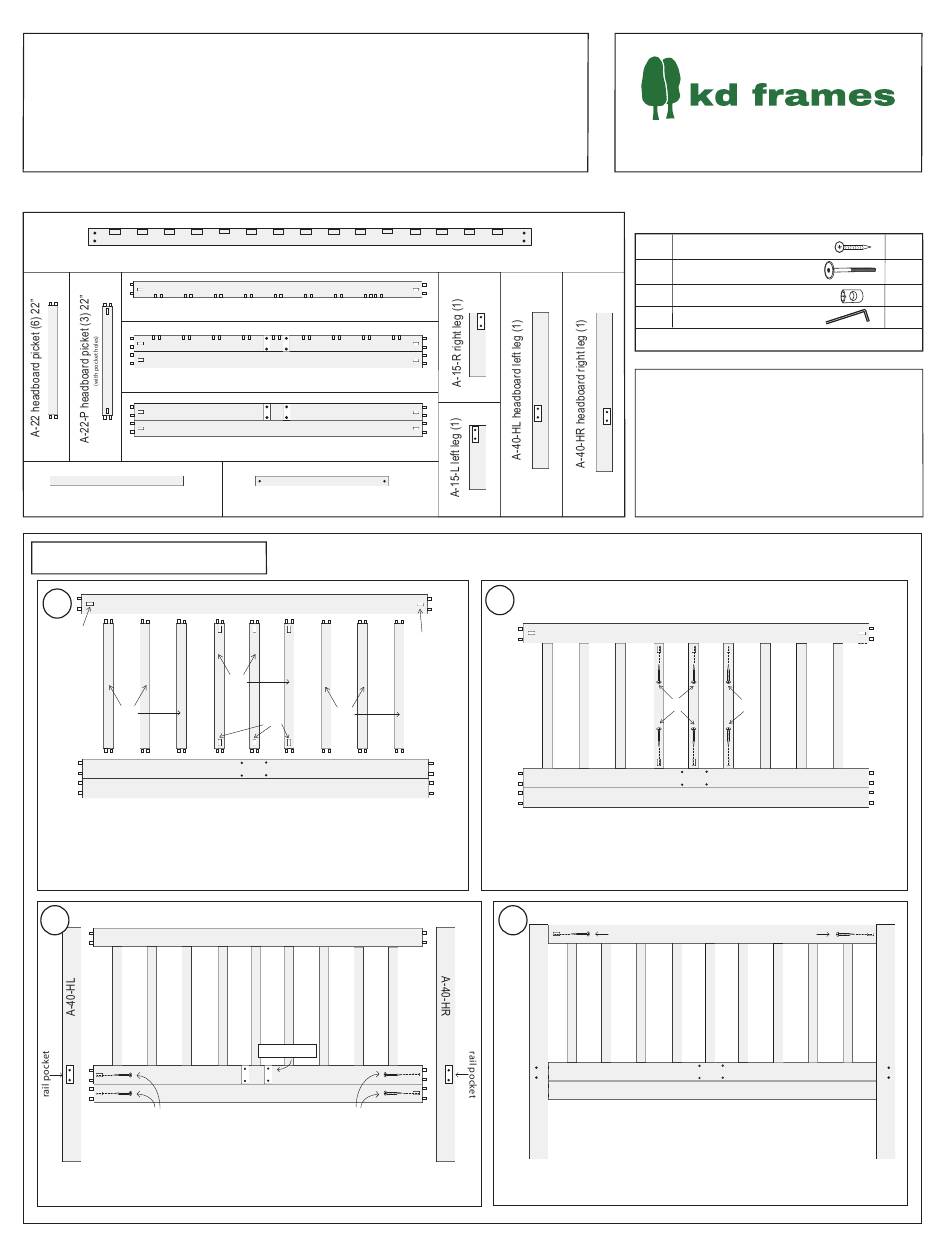

STEP 1: Assemble the headboard
A
A-48-HT
pocket
A-22
Insert dowels on ends of the (6) A-22 and (3) A-22-P into corresponding holes
in A-48-HT and A-48-HB as pictured. The (3) A-22-P pickets should be in the
middle with pocket holes facing you. Be sure the pocket holes of the A-48-HT
headboard top are facing you. Be sure the rail pockets of A-48-HB headboard
bottom are NOT facing you. You are looking at the back of the headboard.
C
H-20
Flip headboard over, you are now looking at the front of the headboard. Insert
dowels of A-48-HT headboard top and A-48-HB headboard bottom into the
corresponding holes in the A-40-HL left headboard leg and the A-40-HR right
headboard leg - Be sure that the rail pockets in the legs are facing you.
Attach A-48-HB headboard bottom to legs using H-20 screws as pictured.
SKU# 3992-CP-F
L I S T
A-75-P bed rails (4) - 75"
A-24-C connector slats (4) - 24"
A-22-P
A-22
pocket
A-48-HB
A-48-HT
rail pockets
A-48-HB
H-20
B
pocket
Use phillips head screw driver to attach the (3) A-22-P middle pickets to the
A-48-HT headboard top and the A-48-HB headboard bottom using (6) of the
H-20 1-1/2" screws. Be sure the heads of the screws are snug in the pockets.
D
Flip the headboard over one last time and attach A-48-HT headboard
top to the legs using the H-20 screws as pictured.
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • customerservice@kdframes.com
H A R D W A R E
H-20 1-1/2" WOOD SCREW
H-21 2 - 1/2" BOLT
H-3 CROSS DOWEL
H-10 HEX WRENCH
#2 PHILLIPS HEAD SCREW DRIVER REQUIRED
Tulip Poplar is a beautiful hardwood species that can have some
slight coloration in parts of the tree. We make every attempt to
preserve the prettiest wood for the parts of our frames that show.
However, in an attempt not to waste perfectly good and sound
poplar, some pieces of the frame will reflect this coloration. We
use these pieces in parts of the frame that ultimately will be
hidden, such as bed slats. Any green tint in the wood will change
brown after several weeks or after exposure to direct sunlight for
about 30 minutes. For more information on our products
including ASSEMBLY VIDEOS, please visit us at kdframes.com.
A-48-HT
H-20
H-20
A-48-HB
H-20
A-48-HT
L I S T
16
24
24
1
H-20
