Power Tech Generators PT-8000 Operator's Manual page 37

POWER TECHNOLOGY SOUTHEAST, INC.
634 STATE ROAD 44
LEESBURG, FL 34748-8103
(352) 365-2777 FAX (352) 787-5545
2 POLE CIRCUIT BREAKER
45 AMP for 10 KW
50 AMP for 12 KW

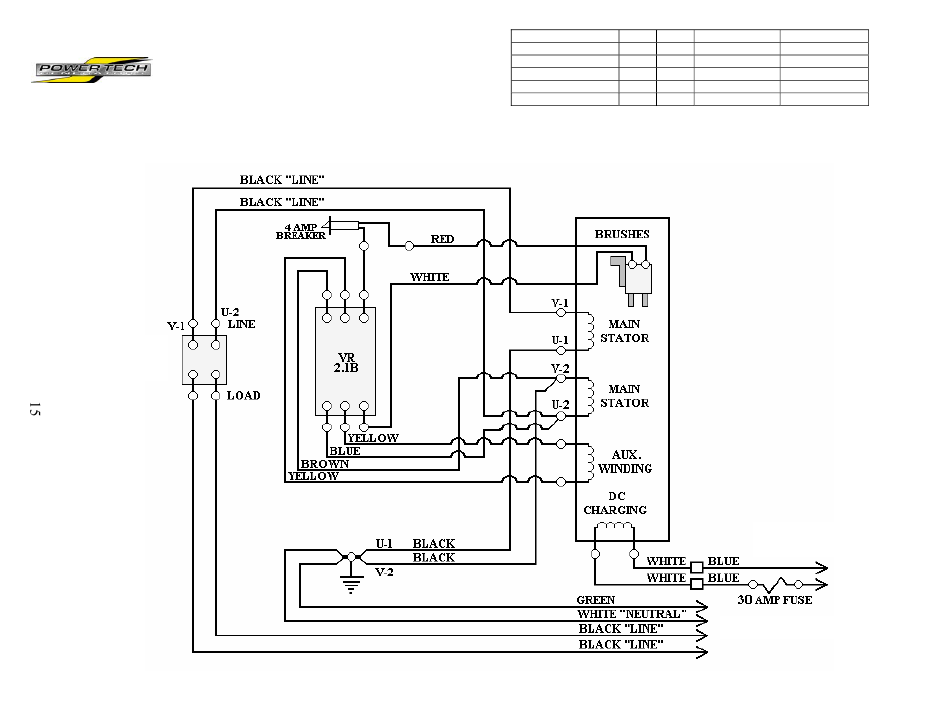

AC ELECTRICAL CIRCUIT FOR 10–12KW "C" GENERATORS 120 VOLTS LINE TO NEUTRAL 240 VOLTS LINE TO LINE
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
(AFTER PRODUCTION DATE 10/7/04 ONLY)
RESISTANCE CHART
KW 10 12
MAIN STATOR 0.093 0.093
MAIN ROTOR 72.5 72.5
AUX. WINDING 0.892 0.892
BATT. CHARGE 0.082 0.082
SENSING WINDING 0.029 0.029
MARKS COLOR
U1-V1 or U2-V2 B-B
*** ---
AW Y-Y
CH W W-W
*** BLUE / BROWN
OPTIONAL 12V
CHARGING RECTIFIER
GENERATOR OUTPUT LEADS
