2 POLE CIRCUIT BREAKER
35 AMP for 8 KW

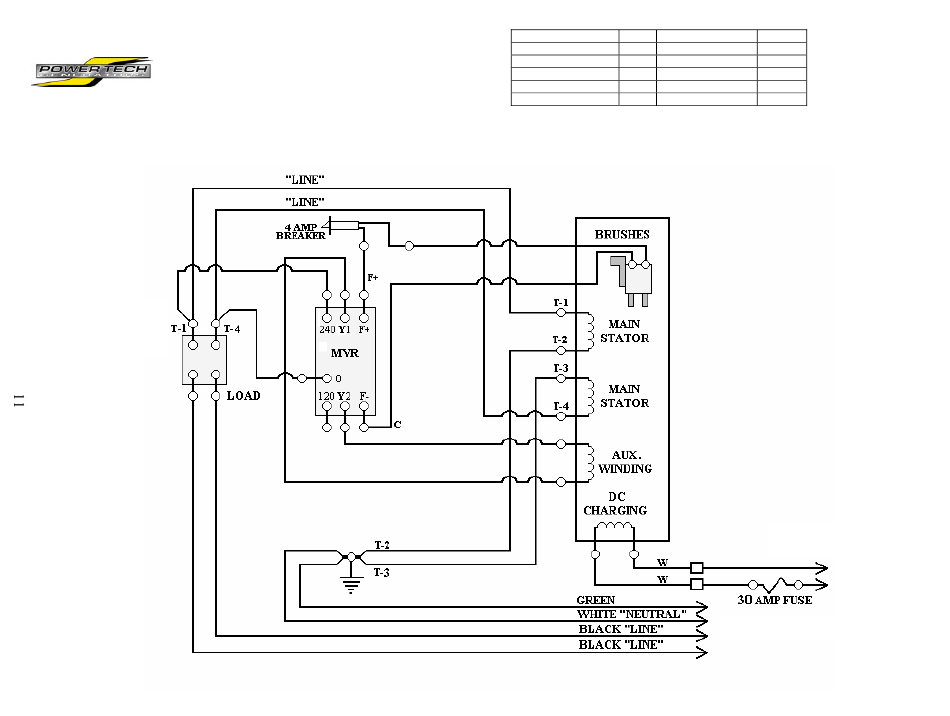

AC ELECTRICAL CIRCUIT FOR "MB" GENERATORS 120 VOLTS LINE TO NEUTRAL 240 VOLTS LINE TO LINE
RESISTANCE CHART
KW 8
MAIN STATOR 0.257 T-1 –T-2 : T-3 – T-4
MAIN ROTOR 83.1
AUX. WINDING 2.64
BATT. CHARGE 0.159
SENSING WINDING 0.085
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
MARKS COLOR
W
*** ---
Y1 – Y2 W
--- W
*** W
OPTIONAL 12V DC
CHARGING RECTIFIER
GENERATOR OUTPUT LEADS
