2 POLE CIRCUIT BREAKER
35 AMP for 8 KW

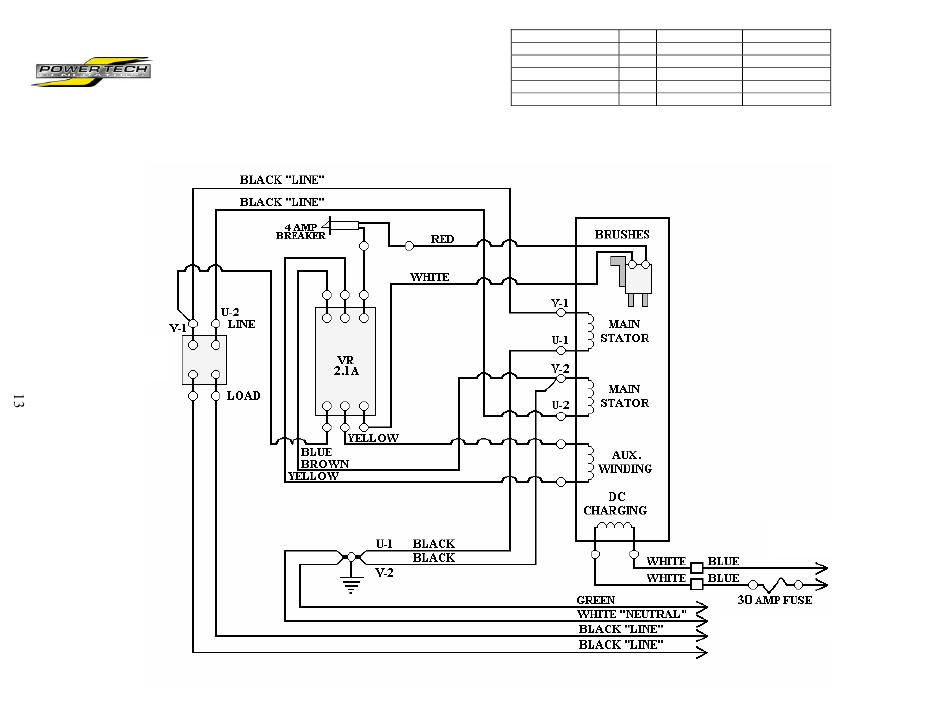

AC ELECTRICAL CIRCUIT FOR 8KW "C" GENERATORS 120 VOLTS LINE TO NEUTRAL 240 VOLTS LINE TO LINE
RESISTANCE CHART
KW 8
MAIN STATOR 0.257 U1-V1 or U2-V2
MAIN ROTOR 83.1
AUX. WINDING 2.64
BATT. CHARGE 0.159
SENSING WINDING 0.085
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
MARKS COLOR
B-B
*** ---
AW Y-Y
CH W W-W
*** BLUE / BROWN
OPTIONAL 12V DC
CHARGING RECTIFIER
GENERATOR OUTPUT LEADS
