Summary of Contents for Power Tech Generators PTSG-12

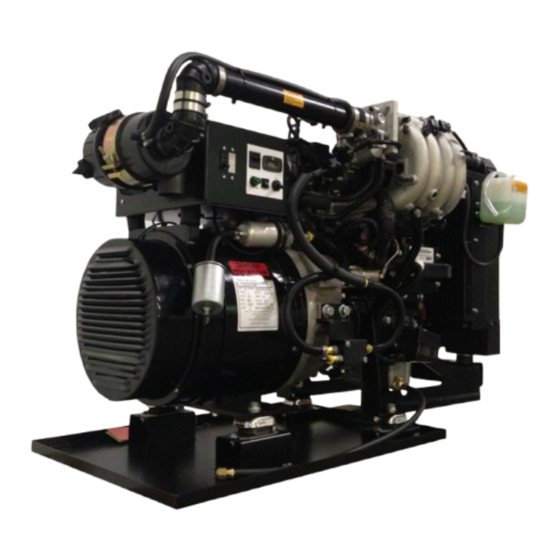

- Page 1 PTSG-12 Operators Manual Power Technology Southeast, Inc. 634 State Road #44 Leesburg, FL 34748-8103 ♦ (352) 365-2777 ♦ Fax (352) 787-5545 ♦ 4/2010...
- Page 2 Limited Warranty on Power Tech Generators Power Technology Southeast, Inc. warrants to you, the original purchaser, that each product of our manufacture is free from defects in materials, and workmanship. That each generator will deliver its rated output as indicated on The Power Technology Nameplate, if properly installed, serviced, and operated under normal conditions in accordance with Power Technology’s instructions.
- Page 3 Engine Maintenance Service Schedule Maintenance *See Every 150 Every 500 Every 1000 Daily Remarks Service Item Note Hours Hours Hours Engine Oil Level Deterioration & Leakage Engine Oil Or Once Change a Year Oil Filter Or Once Change a Year Coolant Level Coolant Leakage Or Once a...
- Page 4 GENERATOR ASSEMBLY INFORMATION EXCITER TYPE GENERATOR The exciter pole pieces contain residual magnetism, which sets up lines of force across the air gap to the exciter armature. When the exciter begins to rotate a voltage is induced and current flow is initiated in the exciter armature AC windings.
- Page 5 ROTATING FIELD ASSEMBLY (ROTOR) The rotating field assembly consists basically of four members: 1) the shaft assembly, 2) the core assembly, 3) the field coil damper windings, and 4) balance lugs to provide a high degree of static and dynamic balance. CORE ASSEMBLY The core assembly consists of a quantity of thin steel plates compressed and fastened together to form a single laminated assembly.
- Page 6 DESCRIPTION PART NUMBER 15KW 17.5KW 20KW 1. END COVER NS-GENCAN NS-GENCAN NS-GENCAN 2. EXCITER ROTOR 02RTR1520EXC 02RTR1520EXC 02RTR1520EXC 3. EXCITER STATOR 02STA1520EXCG 02STA1520EXCG 02STA1520EXCG 4. REAR HOUSING BRACKET 02HB15TCGE 02HB175 02HB15TCGE 5. ROTOR BEARING 02BRG207 02BRG207 02BRG207 6. MAIN STATOR ASSEMBLY** 02STMN15 02STMN175 02STMN20...
- Page 7 VOLTAGE TEST Output Overload Zero High Voltage OK Voltage Low Voltage Check AMP Check Draw Replace Main Breaker From equipment On GenSet Check Load Distribution One Voltage Line Check may be Gen End Higher than the other 12 VOLT BATTERY TEST One Coil Both Coils Sensing Voltage...
- Page 8 120 / 240 VOLT CONNECTION “M” SERIES EXCITER TYPE...
- Page 9 POWER TECHNOLOGY SOUTHEAST, INC. 634 STATE ROAD 44 LEESBURG, FL 34748-8103 (352) 365-2777 FAX (352) 787-5545 12V DC ENGINE CONTROL PT-ECU-63...
