Power Tech Generators PT-8000 Operator's Manual page 36

POWER TECHNOLOGY SOUTHEAST, INC.
634 STATE ROAD 44
LEESBURG, FL 34748-8103
(352) 365-2777 FAX (352) 787-5545
#12
JUMPER
WIRE
2 POLE CIRCUIT BREAKER
45 AMP for 10 KW
50 AMP for 12 KW

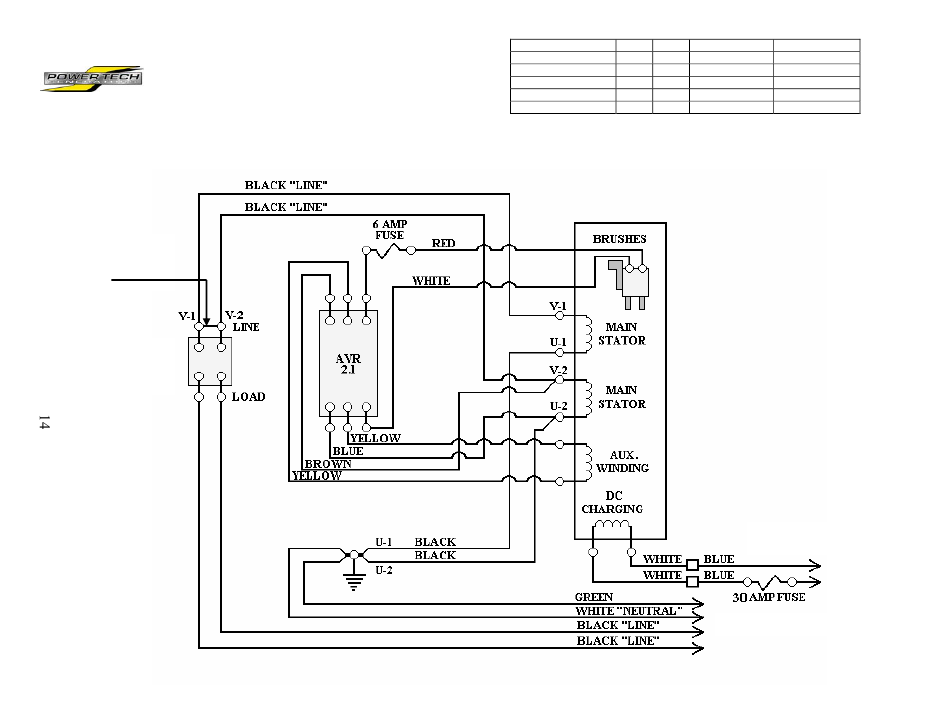

AC ELECTRICAL CIRCUIT FOR 10 –12KW "C" GENERATORS 120 VOLTS LINE TO NEUTRAL
KW
MAIN STATOR
MAIN ROTOR
AUX. WINDING
BATT. CHARGE
SENSING WINDING
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
PRIOR TO 10/7/04
RESISTANCE CHART
10 12 MARKS
0.093 0.093 U1-V1 or U2-V2
72.5 72.5 ***
0.892 0.892 AW
0.082 0.082 CH W
0.029 0.029 *** BLUE / BROWN
OPTIONAL 12V DC
CHARGING RECTIFIER
GENERATOR OUTPUT LEADS
COLOR
B-B
---
Y-Y
W-W
