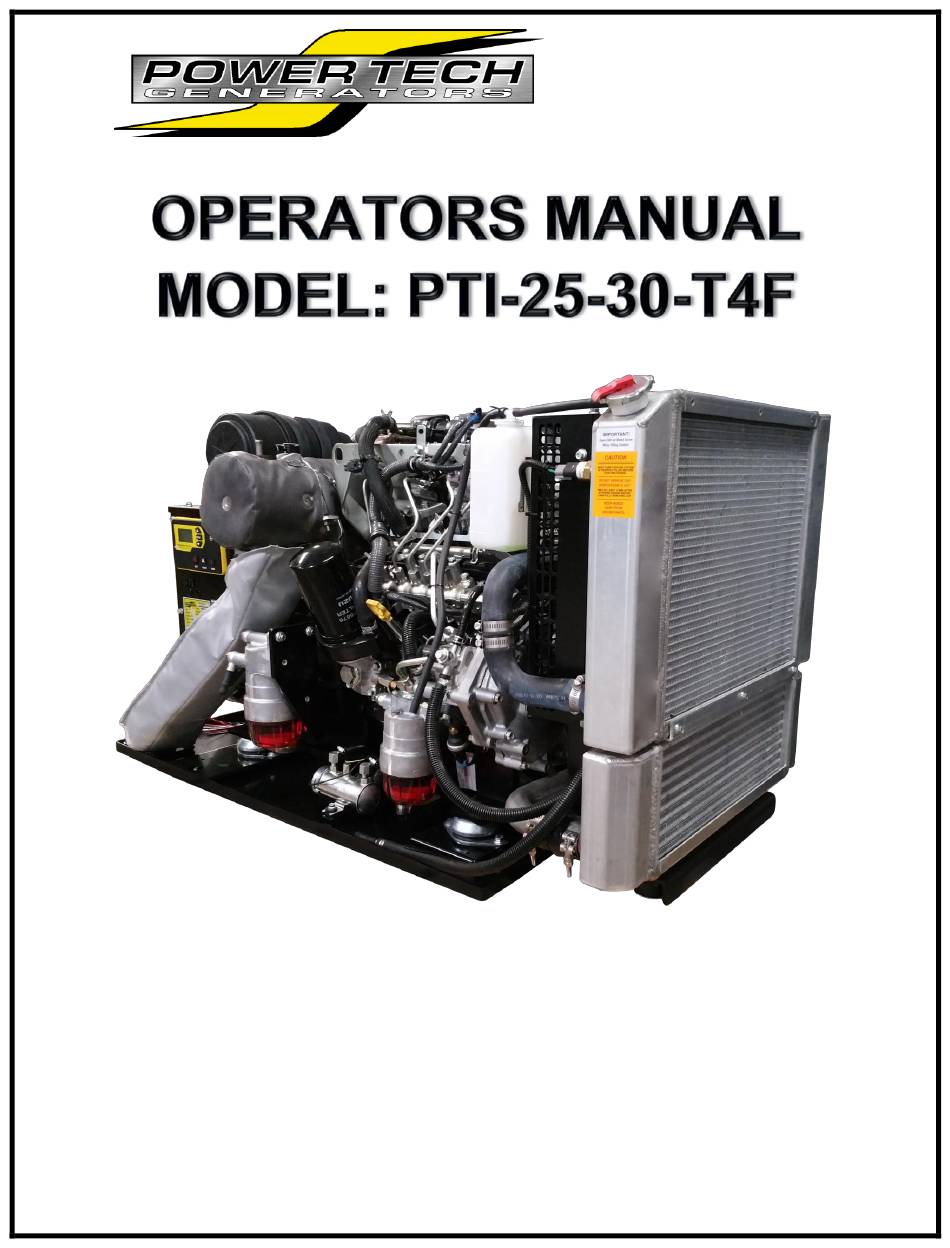

- Page 1 Generating Power to The World Power Technology Southeast 634 State Road 44 Leesburg, FL 34748-8103 Phone: (352)-365-2777 Fax: (352) 787-5545...
-
Page 2: Table Of Contents
PTI-25-30-T4F Operators Manual Table of Contents FORWARD ..............................4 TO OUR CUSTOMERS ..........................4 Limited Warranty on Power Tech Generators ....................5 SAFE OPERATION ............................6 Proposition 65 Warning ......................... 6 CONDUCTING SAFETY CHECKS AND MAINTENANCE ................. 11 Operating the Generator ..........................12 Daily Pre Operational Checks ......................... - Page 3 PTI-25-30-T4F Operators Manual BALANCE..............................22 BEARING ..............................22 STATOR ASSEMBLY ..........................22 Enclosure Information ................... Error! Bookmark not defined. TROUBLESHOOTING ..........................24 TROUBLE ............................... 24 POSSIBLE CAUSE ..........................24 SUGGESTED ACTION ........................... 24 Page 3 of 24...
-
Page 4: Forward

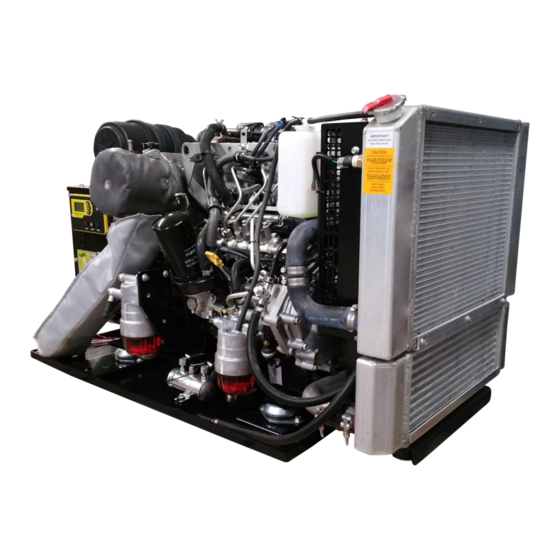

PTI-25-30-T4F Operators Manual FORWARD You are now the proud owner of a Power Technology Southeast generator set, powered by an industrial Isuzu diesel engine. This generator set is a Part of Power Tech`s Tier 4 Final Generator product line. It is the engineered to the utmost quality standards and manufactured in a strict quality control environment and will assure you a long, satisfactory service. -
Page 5: Limited Warranty On Power Tech Generators
PTI-25-30-T4F Operators Manual Limited Warranty on Power Tech Generators Power Technology Southeast, Inc. warrants to you, the original purchaser, that each product of our manufacture is free from defects in materials, and workmanship. That each generator will deliver its rated output as indicated on The Power Technology Nameplate, if properly installed, serviced, and operated under normal conditions in accordance with Power Technology’s instructions. -
Page 6: Safe Operation
PTI-25-30-T4F Operators Manual SAFE OPERATION Observe Safety Instructions CALIFORNIA Wear Safety Clothing Proposition 65 Warning Check Before Operating the Engine Keep Area around the engine clean Diesel Engine Exhaust and Safe Handling of Fuel and Lubricants some of its constituents are... - Page 7 PTI-25-30-T4F Operators Manual responsibility to instruct all operators in safe operation. Be sure to observe the following for safe operation. OBSERVE SAFETY INSTRUCTIONS Read, understand and follow this “OPERATORS MANUAL” and “LABELS ON THE ENGINE” before starting and operating.
- Page 8 PTI-25-30-T4F Operators Manual KEEP AREA AROUND THE ENGINE CLEAN Be sure to stop the engine before cleaning. Keep the engine clean and free of accumulated dirt, grease and trash. DO NOT stop the engine without idling; Temperatures around the genset rises suddenly.
- Page 9 PTI-25-30-T4F Operators Manual Escaping fluids Relieve all pressure in the air, oil and cooling systems before any lines, fittings or related items are removed or disconnected. Be alert for possible pressure release when disconnecting any device from a system that is pressurized. DO NOT check for pressure leaks with your hands.
- Page 10 PTI-25-30-T4F Operators Manual ANTI-FREEZE AND DISPOSAL OF FLUIDS Anti-freeze contains toxic chemicals. Wear rubber gloves when handling anti-freeze. In case of contact with skin, wash immediately to avoid personal injury. DO NOT mix different types of Anti-freeze. The mixture can produce a chemical reaction resulting in the formation of harmful substances.
-
Page 11: Conducting Safety Checks And Maintenance
PTI-25-30-T4F Operators Manual CONDUCTING SAFETY CHECKS AND MAINTENANCE When performing safety checks or engine service, be sure the engine is level and well supported. Use approved stands designed for this type of service. DO NOT service an engine that is only supported by a lift jack or hoist. -
Page 12: Operating The Generator
PTI-25-30-T4F Operators Manual Operating the Generator Daily Pre Operational Checks Check the engine oil level to be appropriate level Check for tightness of battery cables/terminals. Check battery terminals for absence of corrosion Check coolant level for proper Fill (add if necessary) ... -
Page 13: Front Panel Items
PTI-25-30-T4F Operators Manual Front Panel Items Item Name Description Off Button Used for turning off the engine or exiting out of Auto mode. This is not intended to function as an Emergency Stop as there are conditions in which it will not shutdown the engine. -
Page 14: Modes, Starting And Stopping Methods
PTI-25-30-T4F Operators Manual Modes, Starting and Stopping Methods The following table describes the different operating modes of the controller: Mode / State Description When in the OFF mode, the engine cannot be remotely started. Auto When in the Auto mode, the engine waits to receive a start command. -
Page 15: Wet Stacking
PTI-25-30-T4F Operators Manual Wet Stacking Diesel engines are designed to operate with a load. When a diesel engine operates considerably below the rated output level the engine can start to over fuel or “wet stack”. Diesel engines perform moste efficiently at 70-80% of the rated output. When an engine operates for a prolonged period of time below 40% of its rated out it begins to over fuel. -
Page 16: Engine Maintenance Schedule
PTI-25-30-T4F Operators Manual Engine Maintenance Schedule NOTE: Under normal operation, items such as belts, hoses and filters are not covered By Power Technology Southeast Limited Warranty. 150 Hour 500 Hour 1000 Hour Maintenance Service Item Daily Remarks notes Interval Interval... -
Page 17: Engine Oil Maintenance
PTI-25-30-T4F Operators Manual Engine Oil Maintenance Checking the Engine Oil Level 1) Maintain Proper Oil Level Between “ADD”(Y) and “Full” (X) the oil level Gauge. DO NOT fill above “Full” mark as catastrophic engine damage will occur. 2) Remove the oil filler cap and add oil if necessary. Clean the oil filler cap with a clean rag or towel. -
Page 18: Coolant Recommendations
PTI-25-30-T4F Operators Manual COOLANT RECOMMENDATIONS For optimum performance, Power Technology recommends a 1:1 mixture of water / glycol. NOTE: Use a mixture that will provide protection against the lowest ambient temperature. NOTE: 100 percent pure glycol will freeze at a temperature of –23°C (-9°F). -
Page 19: Coolant Service Life
PTI-25-30-T4F Operators Manual COOLANT SERVICE LIFE Commercial Heavy-Duty Coolant/Antifreeze that 3000 Service Hours Meets “ASTM D5345” or Two Years Commercial Heavy-Duty Coolant/Antifreeze that 3000 Service Hours Meets “ASTM D4985” or One Year NOTE: Do not use a commercial coolant/antifreeze that only meets the ASTM D3306 or D4656 specification. -
Page 20: Operating Hours And Service Log
PTI-25-30-T4F Operators Manual OPERATING HOURS and SERVICE LOG THIS SERVICE LOG IS PROVIDED TO HELP YOU KEEP AN ACCUMULATIVE RECORD OF OPERATION HOURS ON YOUR GENERATOR SET AND THE DATES REQUIRED SERVICES WERE PERFORMED. ENTER TIME TO THE NEAREST HOUR. -
Page 21: Generator Assembly Information
PTI-25-30-T4F Operators Manual GENERATOR ASSEMBLY INFORMATION EXCITER TYPE GENERATOR The exciter pole pieces contain residual magnetism, which sets up lines of force across the air gap to the exciter armature. When the exciter begins to rotate a voltage is induced and current flow is initiated in the exciter armature AC windings. This voltage... -
Page 22: Exciter Field Coil Voltage Source
PTI-25-30-T4F Operators Manual EXCITER FIELD COIL VOLTAGE SOURCE Field coil DC voltage is obtained by rectifying the voltage from the phase to neutral line of the generator output, or either appropriate terminal to provide the needed voltage reference. The rectifier bridge is an internal part of the static regulator. The static regulator senses a change in the generator output and automatically regulates current flow in the exciter field coil circuit to increase or decrease the exciter field strength. - Page 23 PTI-25-30-T4F Operators Manual Page 23 of 24...
- Page 24 PTI-25-30-T4F Operators Manual TROUBLESHOOTING TROUBLE POSSIBLE CAUSE SUGGESTED ACTION Generator is not in “auto” mode Generator will not start via Put Generator in Auto mode via remote panel or other source controller Remote connection plug is not Reconnect Remote control Plug...
