Power Tech Generators PT-8000 Operator's Manual page 24

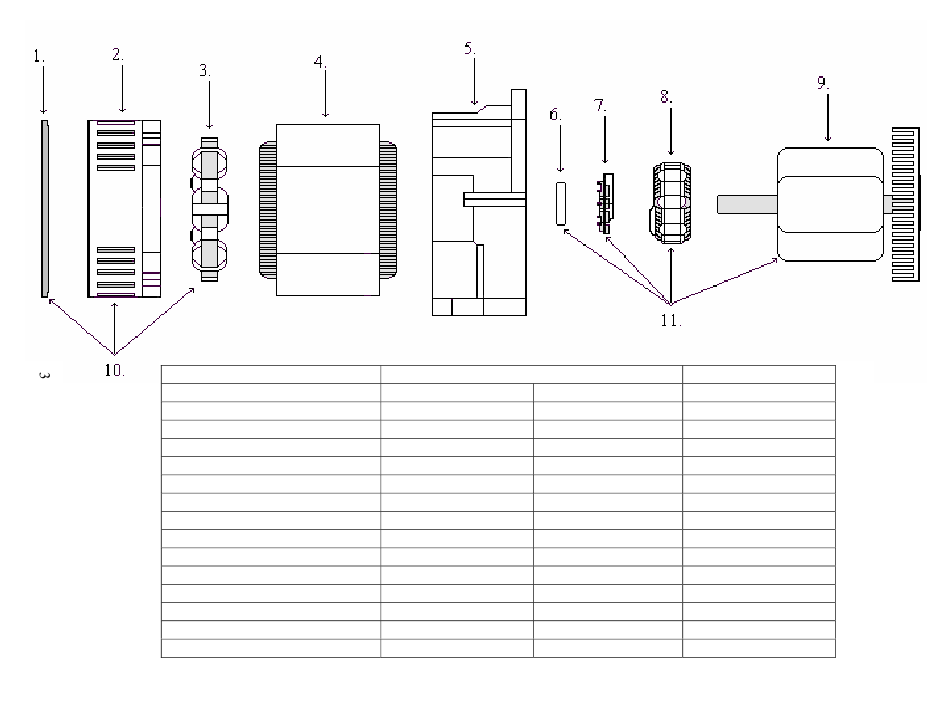

DESCRIPTION
1. BEARING PLATE
2. END BELL
3.EXCITER STATOR
4. MAIN STATOR
5. BELL HOUSING **
6. ROTOR BEARING
7. DIODE PLATE
8. EXCITER ROTOR
9. MAIN ROTOR
10. END BELL ASSEMBLY
11. MAIN ROTOR ASSEMBLY 02RTR8EXC-ASSY
12. END PLATE ASSEMBLY
GENERATOR ASSEMBLY
VOLTAGE REGULATOR
** NOTE: Item #5 BELL HOUSING is not part of the Generator End assembly.
8 - 10 - 12KW "C" EXCITER TYPE GENERATOR ASSEMBLY
PART NUMBER
8KW
02BR-CR 02BR-CR
02H7810 02H10KW-CR
02STA8EXC 02STA10EXCR
02STAMNCD8 02STACI7210
02BHTPU7 02BHTPU7
02BRG6206 02BRG6206
02PLD8CD 02PLD8CD
02RTR8EXC 02RTR10EXCR
02RTRMN8EXC 02RTR10E
02EB8 02EB10
02RTR10EXC-ASSY 02RTR12EXC-ASSY
02EP8 02EP10
02GENCD8E 02GEN10EXCR
06REG24 06REG24
10KW 12KW
02BR-CR
02H10KW-CR
02STA12EXCR
02STAMN12
02BHTPU7
02BRG6206
02PLD8CD
02RTR12EXCR
02RTR12E
02EB12
02EP12
02GEN12EXCR
06REG24
