#12
JUMPER
WIRE
2 POLE CIRCUIT BREAKER
35 AMP for 8 KW
45 AMP for 10 KW
50 AMP for 12 KW

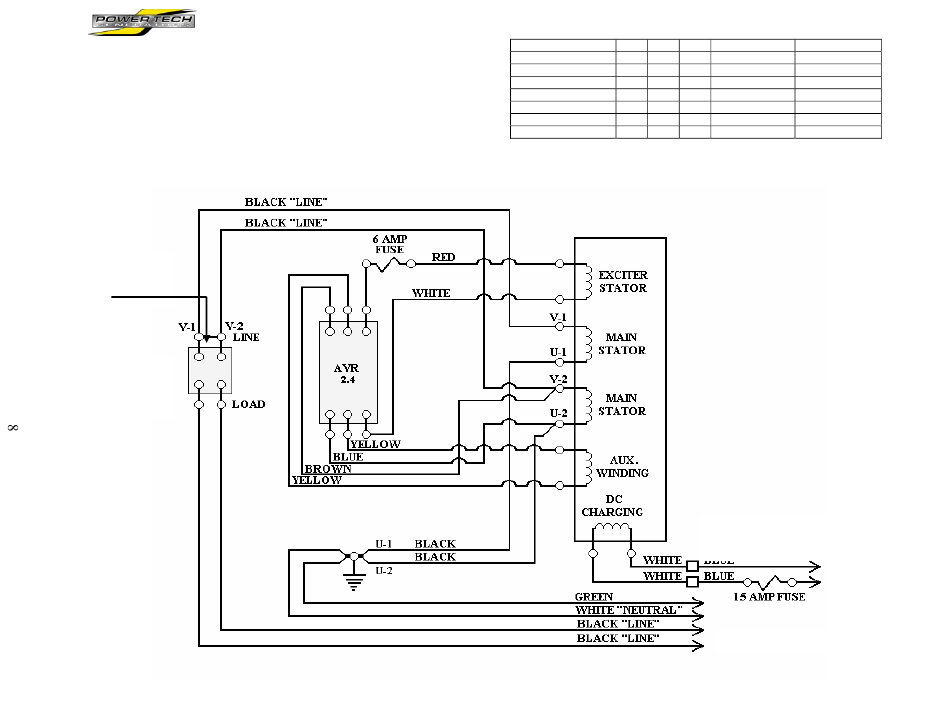

AC ELECTRICAL CIRCUIT FOR 8 - 10 - 12KW "C" GENERATORS 120 VOLTS LINE TO NEUTRAL
KW 8 10
MAIN STATOR 0.5 0.5
MAIN ROTOR 1.9 2.0
EXCITER STATOR 86.9 87.4
EXCITER ROTOR 33.8 33.8
AUX. WINDING 2.5 1.6
BATT. CHARGE 0.5 0.5
SENSING WINDING 0.4 0.4
RESISTANCE CHART
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
12 MARKS COLOR
0.5 U1-V1 or U2-V2 B-B
2.2 *** ---
89.0 F1-F2 R-W
34.0 *** ---
1.5 AW Y-Y
0.5 CH W W-W
0.4 *** BLUE / BROWN
OPTIONAL 12V CHARGING
TO 12V REGULATOR
GENERATOR OUTPUT LEADS
