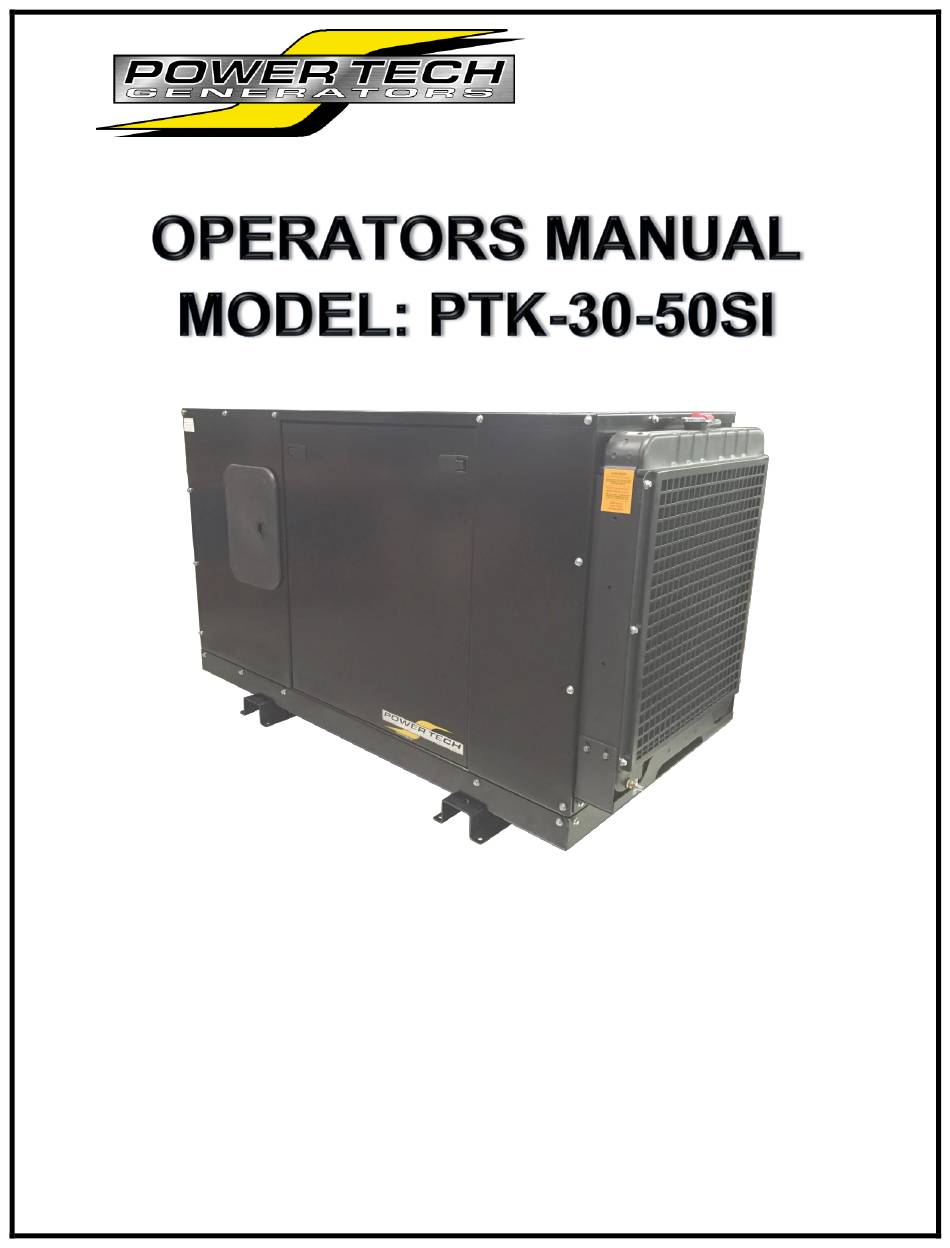

- Page 1 PTK-30-50Si Operators Manual Generating Power to the World Power Technology Southeast 634 State Road 44 Leesburg, FL 34748-8103 Phone: (352)-365-2777 Fax: (352) 787-5545 Page 1 of 27...
- Page 2 PTK-30-50Si Operators Manual Generating Power to the World ⚠ WARNING: Breathing diesel engine exhaust exposes you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always start and operate the engine in a well-ventilated area.
-
Page 3: Table Of Contents
Generating Power to the World Table of Contents FORWARD ..............................5 TO OUR CUSTOMERS ..........................5 Limited Warranty on Power Tech Generators ....................6 SAFE OPERATION ............................8 Proposition 65 Warning ......................... 8 CONDUCTING SAFETY CHECKS AND MAINTENANCE ................. 13 Operating the Generator .......................... - Page 4 PTK-30-50Si Operators Manual Generating Power to the World FIELD COIL ............................. 24 BALANCE..............................24 BEARING ..............................25 STATOR ASSEMBLY ..........................25 TROUBLESHOOTING ..........................26 TROUBLE ............................... 27 POSSIBLE CAUSE ..........................27 SUGGESTED ACTION ........................... 27 Page 4 of 27...
-
Page 5: Forward
PTK-30-50Si Operators Manual Generating Power to the World FORWARD You are now the proud owner of a Power Technology Southeast generator set, powered by an industrial Isuzu diesel engine. This generator set is a Part of Power Tech`s Tier 4 Final Generator product line. It is the engineered to the utmost quality standards and manufactured in a strict quality control environment and will assure you a long, satisfactory service. -
Page 6: Limited Warranty On Power Tech Generators
PTK-30-50Si Operators Manual Generating Power to the World Limited Warranty on Power Tech Generators Power Technology Southeast, Inc. warrants to you, the original purchaser, that each product of our manufacture is free from defects in materials, and workmanship. That each generator will deliver its rated output as indicated on The Power Technology Nameplate, if properly installed, serviced, and operated under normal conditions in accordance with Power Technology’s instructions. - Page 7 PTK-30-50Si Operators Manual Generating Power to the World This Warranty is only valid within the contiguous United States and Canada. Warranty coverage is available outside the U.S. and Canada; please speak to a factory representative for those details. This Warranty does not cover any products or parts not purchased from Power Technology.
-
Page 8: Safe Operation
PTK-30-50Si Operators Manual Generating Power to the World SAFE OPERATION Observe Safety Instructions CALIFORNIA Wear Safety Clothing Proposition 65 Warning Check Before Operating the Engine Keep Area around the engine clean Diesel Engine Exhaust and Safe Handling of Fuel and Lubricants... - Page 9 PTK-30-50Si Operators Manual Generating Power to the World responsibility to instruct all operators in safe operation. Be sure to observe the following for safe operation. OBSERVE SAFETY INSTRUCTIONS Read, understand and follow this “OPERATORS MANUAL” and “LABELS ON THE ENGINE” before starting and operating.
- Page 10 PTK-30-50Si Operators Manual Generating Power to the World KEEP AREA AROUND THE ENGINE CLEAN Be sure to stop the engine before cleaning. Keep the engine clean and free of accumulated dirt, grease and trash. DO NOT stop the engine without idling; Temperatures around the genset rises suddenly.
- Page 11 PTK-30-50Si Operators Manual Generating Power to the World Escaping fluids Relieve all pressure in the air, oil and cooling systems before any lines, fittings or related items are removed or disconnected. Be alert for possible pressure release when disconnecting any device from a system that is pressurized.
- Page 12 PTK-30-50Si Operators Manual Generating Power to the World ANTI-FREEZE AND DISPOSAL OF FLUIDS Anti-freeze contains toxic chemicals. Wear rubber gloves when handling anti-freeze. In case of contact with skin, wash immediately to avoid personal injury. DO NOT mix different types of Anti-freeze. The mixture can produce a chemical reaction resulting in the formation of harmful substances.
-
Page 13: Conducting Safety Checks And Maintenance
PTK-30-50Si Operators Manual Generating Power to the World CONDUCTING SAFETY CHECKS AND MAINTENANCE When performing safety checks or engine service, be sure the engine is level and well supported. Use approved stands designed for this type of service. ... -
Page 14: Operating The Generator
PTK-30-50Si Operators Manual Generating Power to the World Operating the Generator Daily Pre Operational Checks Check the engine oil level to be appropriate level Check for tightness of battery cables/terminals. Check battery terminals for absence of corrosion ... -
Page 15: Front Panel Items
PTK-30-50Si Operators Manual Generating Power to the World Front Panel Items Item Name Description Off Button Used for turning off the engine or exiting out of Auto mode. This is not intended to function as an Emergency Stop as there are conditions in which it will not shutdown the engine. -
Page 16: Modes, Starting And Stopping Methods
PTK-30-50Si Operators Manual Generating Power to the World Modes, Starting and Stopping Methods The following table describes the different operating modes of the controller: Mode / State Description When in the OFF mode, the engine cannot be remotely started. Auto When in the Auto mode, the engine waits to receive a start command. -
Page 17: Engine Specifications
PTK-30-50Si Operators Manual Generating Power to the World Engine Specifications Engine Make: Kubota Kubota Kubota Engine Model: V3300-BG V3600T-BG V3800DI-T-BG EPA Tier Tier 4i Tier 4i Tier 3 KWM @1800rpm 36.5 56.7 Oil type See page 19 See page 19... -
Page 18: Engine Maintenance Schedule
PTK-30-50Si Operators Manual Generating Power to the World Engine Maintenance Schedule 150 Hour 500 Hour 1000 Hour Maintenance Service Item Daily Remarks notes Interval Interval Interval Engine Oil Level deterioration & Leakage Or Once a Engine Oil Change Year Or Once a... -
Page 19: Engine Oil Maintenance
PTK-30-50Si Operators Manual Generating Power to the World Engine Oil Maintenance Checking the Engine Oil Level 1) Maintain Proper Oil Level Between “ADD”(Y) and “Full” (X) the oil level Gauge. DO NOT fill above “Full” mark as catastrophic engine damage will occur. -
Page 20: Coolant Recommendations
PTK-30-50Si Operators Manual Generating Power to the World COOLANT RECOMMENDATIONS For optimum performance, Power Technology recommends a 1:1 mixture of water / glycol. NOTE: Use a mixture that will provide protection against the lowest ambient temperature. NOTE: 100 percent pure glycol will freeze at a temperature of –23°C (-9°F). -
Page 21: Coolant Service Life
PTK-30-50Si Operators Manual Generating Power to the World COOLANT SERVICE LIFE Commercial Heavy-Duty Coolant/Antifreeze that 3000 Service Hours Meets “ASTM D5345” or Two Years Commercial Heavy-Duty Coolant/Antifreeze that 3000 Service Hours Meets “ASTM D4985” or One Year NOTE: Do not use a commercial coolant/antifreeze that only meets the ASTM D3306 or D4656 specification. -
Page 22: Operating Hours And Service Log
PTK-30-50Si Operators Manual Generating Power to the World OPERATING HOURS and SERVICE LOG THIS SERVICE LOG IS PROVIDED TO HELP YOU KEEP AN ACCUMULATIVE RECORD OF OPERATION HOURS ON YOUR GENERATOR SET AND THE DATES REQUIRED SERVICES WERE PERFORMED. ENTER TIME TO THE NEAREST HOUR. -
Page 23: Generator Assembly Information
PTK-30-50Si Operators Manual Generating Power to the World GENERATOR ASSEMBLY INFORMATION EXCITER TYPE GENERATOR The exciter pole pieces contain residual magnetism, which sets up lines of force across the air gap to the exciter armature. When the exciter begins to rotate a voltage is induced and current flow is initiated in the exciter armature AC windings. -
Page 24: Exciter Field Coil Voltage Source
PTK-30-50Si Operators Manual Generating Power to the World low voltage that air conditioning will have more difficulty in starting, and long starting lines may overload generator and trip circuit breakers. For three phase connections, please contact Power Technology’s Tech support Dept. -
Page 25: Bearing
PTK-30-50Si Operators Manual Generating Power to the World BEARING The generator rotor assembly is suspended on a shielded factory lubricated ball bearing. A visual inspection of the bearing is recommended at typical service intervals. If signs of abnormal wear or leakage are observed, the bearing should be replaced. -
Page 26: Enclosure Information
Generating Power to the World Enclosure Information Your PTK-30-50SI is equipped with a sound insulated enclosure to reduce overall sound levels. There is no maintenance to the enclosure needed over the life of the generator. There are general guidelines for care of your generators enclosure, do not mount any objects to the outside of the enclosure, do not use the enclosure to support any objects (ex. -
Page 27: Troubleshooting
PTK-30-50Si Operators Manual Generating Power to the World TROUBLESHOOTING TROUBLE POSSIBLE CAUSE SUGGESTED ACTION Generator is not in “auto” mode Generator will not start via Put Generator in Auto mode via remote panel or other source controller Remote connection plug is not...
