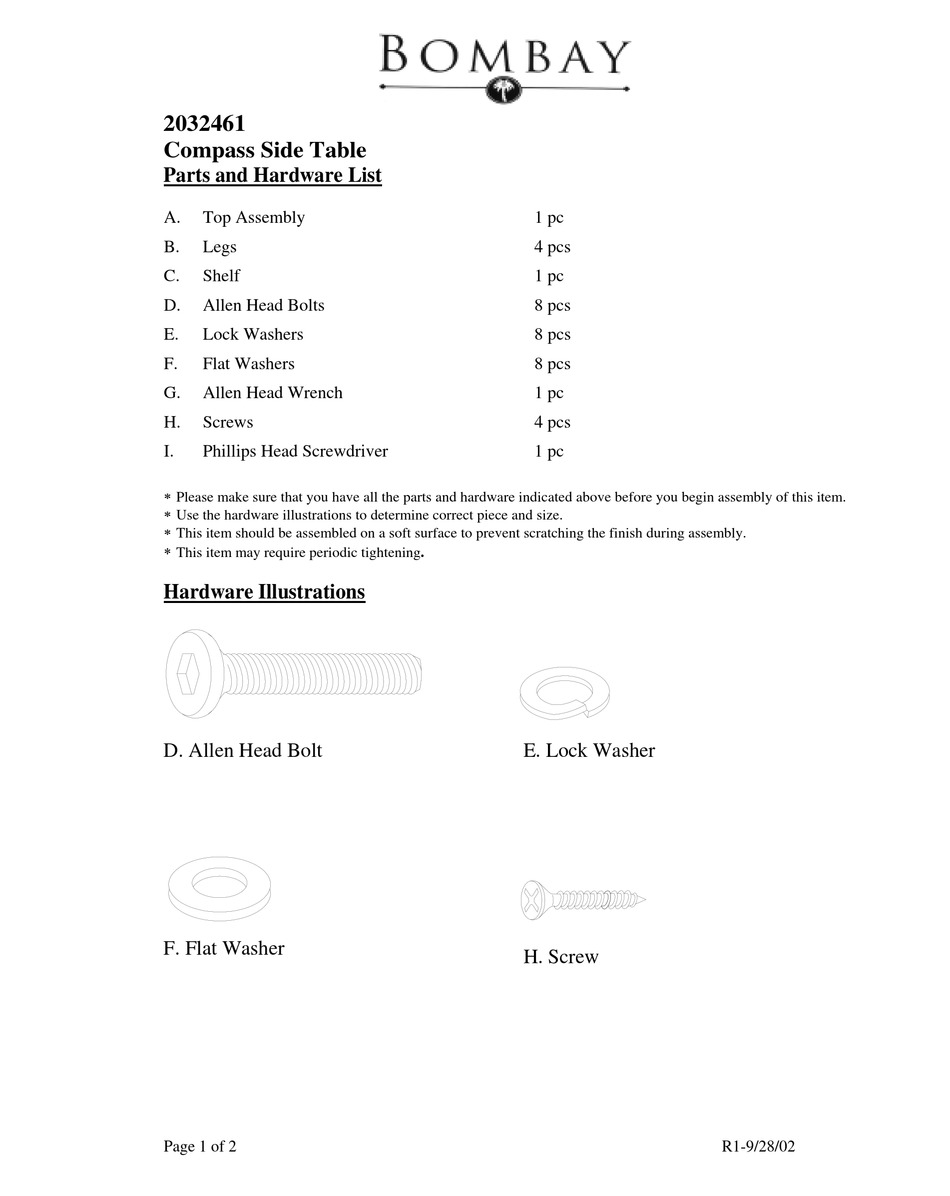

2032461
Compass Side Table
Parts and Hardware List
A.
Top Assembly
B.
Legs
C.
Shelf
D.
Allen Head Bolts
E.
Lock Washers
F.
Flat Washers
G.
Allen Head Wrench
H.
Screws
I.
Phillips Head Screwdriver
∗ Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗ Use the hardware illustrations to determine correct piece and size.
∗ This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Hardware Illustrations
D. Allen Head Bolt
F. Flat Washer
Page 1 of 2
1 pc
4 pcs
1 pc
8 pcs
8 pcs
8 pcs
1 pc
4 pcs
1 pc
E. Lock Washer
H. Screw
R1-9/28/02
