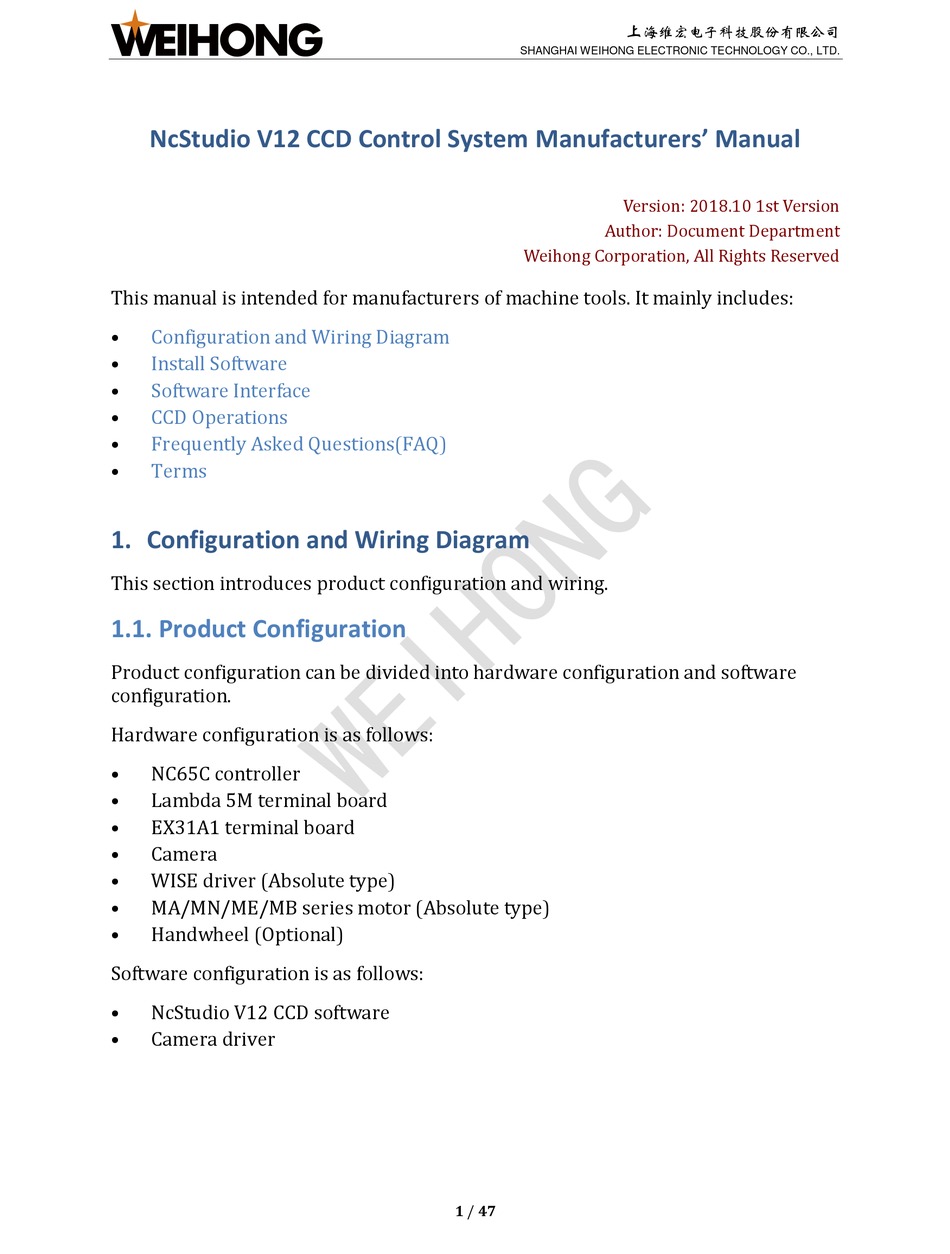

NcStudio V12 CCD Control System Manufacturers' Manual
This manual is intended for manufacturers of machine tools. It mainly includes:
•
Configuration and Wiring Diagram
•
Install Software
•
Software Interface
•
CCD Operations
•
Frequently Asked Questions(FAQ)
•
Terms
1. Configuration and Wiring Diagram
This section introduces product configuration and wiring.
1.1. Product Configuration
Product configuration can be divided into hardware configuration and software
configuration.
Hardware configuration is as follows:
•
NC65C controller
•
Lambda 5M terminal board
•
EX31A1 terminal board
•
Camera
•
WISE driver (Absolute type)
•
MA/MN/ME/MB series motor (Absolute type)
•
Handwheel (Optional)
Software configuration is as follows:
•
NcStudio V12 CCD software
•
Camera driver
上
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
Version: 2018.10 1st Version
Author: Document Department
Weihong Corporation, All Rights Reserved
1 / 47
