Version 1.0

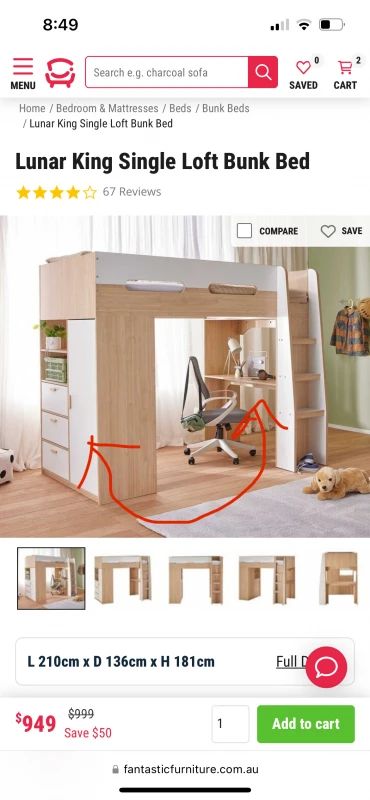

Lunar
King Single Loft Bunk
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture Lunar King Single Loft Bunk

Summary of Contents for fantastic furniture Lunar King Single Loft Bunk

  • Page 1 Version 1.0 Lunar King Single Loft Bunk fantasticfurniture.com.au...
  • Page 2 ’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love Love it? Sha re it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasti cfurni ture fantasticfurniture.com.au Page 2...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions Make sure you have all the required tools. Never use power tools unless instructed. carefully before you begin. Unless instructed, do not fully tighten Identify and lay out all of the components before you begin assembly. screw s until the item is fully assembled.

  • Page 4: What You Need

    What You Need to assemble the product Desk Support Panel (P10) Support Panel (P39) Desk Top Panel (P9) Desk Side Panel (L) (P7) Other tools you need Phillips Head Screwdriver; Hammer Box 1: Rear Side Rail (P1) Desk Side Panel (R) Front Side Rail (P2) (P8) 2 x Headboard/Footboard Panels (P3)
  • Page 5 What You Need to assemble the product Ladder Top Step Other tools you need (P36) Phillips Head screwdriver;Hammer Box 3: Box 1: Robe Top Panel (P16) Robe Bottom Panel (P17) Ladder Left Panel (P33) 2 x Robe Support Panels (P18) Ladder Right Panel (P34) Ladder Middle Step Robe Fixed Panel (P19)
  • Page 6 What You Need to assemble the product Other tools you need Phillips Head Screwdriver; Hammer Hardware list: Box 1A: 75 x Cam 75 x Cam Bolts 97 x Dowels 1 x Allen Key 21 x Screws 33 x Screws 12 x Screws Nuts (H1) (H3) (H4)
  • Page 7 Step 1: To Assemble The Desk (B) You will need (H1) (H3) 3 x Cam Nuts 3 x Cam Bolts (H3) (H1) (H1) (H2) (H3) (H2) (H3) (H1) Phillips Head 6 x Dowels (H3) Screwdriver (H2) (H2) (H3) (H3) Insert 6 x Dowels (H3) into the Desk Top Panel (P9) and Desk Support Panel (P10). Insert 3 x Cam Bolts (H2) into the Desk Top Panel (P9) by tightening with a Phillips Head Screwdriver.
  • Page 8 (H1) (H3) Step 3 (H3) (H1) You will need (H3) (H3) (H1) 3 x Cam Nuts 3 x Cam Bolts (H1) (H2) (H3) (H3) (H2) (H3) Phillips Head 10 x Dowels (H3) Screwdriver (H2) (H3) (H2) (H3) (H3) Insert 10 x Dowels (H3) into Desk Panel (P11) and Desk Support Panel (P12). Insert 3 x Cam Bolts (H2) into the Desk Panel (P11), by tightening with the Phillips Head Screwdriver.
  • Page 9 Step 5 (H2) (H2) You will need (H2) (H2) (H2) (H2) Phillips Head 18 x Cam Bolts (H2) (H2) Screwdriver (H2) (H2) (H2) (H2) (H2) (H2) (H2) (H2) (H2) (H2) (H2) Insert 18 x Cam Bolts (H2) into the Left and Right Desk Side Panels (P7 & P8), by tightening with the Phillips Head Screwdriver.
  • Page 10 Step 7 You will need 6 x Feet Glides Hammer (H12) (H12) (H12) (H12) (H12) (H12) (H12) Attach 6 x Feet Glides (H12) to the underside of the Desk Side Panels (P7 & P8) and the Desk Support Panel (P12), gently using a Hammer or Soft Headed Mallet. Step 8 The Desk (B) section is now complete.
  • Page 11 Step 9: To Assemble The Robe (C) You will need 3 x CL Runner 19 x Cam Bolts (H2) Tracks (H6a) 1 x Hanging Rail 10 x Screws Support (H21) (H18) Phillips Head Screwdriver Insert 19 x Cam Bolts (H2) into Left Robe Side Panel (P13) and Right Robe Side Panel (P14), by tightening with the Phillips Head Screwdriver.
  • Page 12 Step 11 (H1) You will need (H3) (H1) (H3) 10 x Dowels (H3) 10 x Cam Nuts (H1) (H1) (H3) (H1) (H1) (H3) (H3) (H1) (H3) (H1) (P20) x2 (H3) (H1) (H3) Insert 10 x Dowels (H3) into Robe Fixed Panel (P19), 2 x Robe Front Support Panels (P20) and the Robe Back Support Panel (P21).
  • Page 13 Step 13 You will need Phillips Head Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut.You then turn the cam nut so it tightens over the bolt. Attach the Middle Robe Panel (P15) to panels (P19, P20 &...
  • Page 14 Step 15 You will need (H3) 6 x Dowels (H3) (H3) (H3) (H3) (H3) (H3) Insert 6 x Dowels (H3) into the Robe Bottom Panel (P17). Attach the 2 x Robe Support Panels (P18) to the Robe Bottom Panel (P17) by aligning the holes. Step 16 This side has raw edge...
  • Page 15 Step 17 Please note the Fixed You will need Shelf (P23) is optional This side has covered edge 6 x Cam Nuts 6 x Dowels (H1) (H3) Phillips Head Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut.You...
  • Page 16 Step 19 You will need (H1) Phillips Head Screwdriver This is how a cam nut works..(H1) (H1) The head of the cam bolt goes into the open mouth of the cam nut.You (H1) then turn the cam nut so it tightens over the bolt.
  • Page 17 Step 21 (H19) You will need (H15) (H19) 1 x Handle 2 x Screws (H13) (H14) (H15) 3 x Hinges 6 x Screws (H15) (H19) (H19) Phillips Head (H14) (H14) Screwdriver (H15) (H13) Attach 3 x Hinges (H15) to the Robe Door (P25), using 6 x Screws (H19) and tightening with the Phillips Head Screwdriver.
  • Page 18 Step 23 You will need 15 x Cam Nuts Phillips Head (H1) Screwdriver (H1) (H1) (H1) (H1) Insert 5 x Cam Nuts into the Drawer Side Panels (P28 & P29) and Drawer Support Panels (P32). Rotate the Cam Nuts so the arrows point towards the incoming Cam Bolts. Attach the Drawer Front Panel (P27) to the Drawer Side Panels (P29 &...
  • Page 19 Step 25 (H17) You will need (H17) 18 x Screws Phillips Head (H17) Screwdriver (H17) (H17) Secure the Drawer Back Panel (P30) to the Drawer Side Panels (P28 & P29) and the Drawer Support Panel (P32) with 6 x Screws (H17), tightening with the Phillips Head Screwdriver. Ensure that the Drawer Base Panel (P31) slots in the groove of the Drawer Back Panel (P30).
  • Page 20 Step 27 You will need 3 x DL Runner 3 x DR Runner (H6b) (H6b) H6d) (H18) 18 x Screws Phillips Head (H18) Screwdriver (H6d) (H18) (H18) (H6d) Attach 1 x Left Drawer Runner (H6b) to the Left Drawer Side Panel (P28), and 1 x Right Drawer Runner (H6d) to the Right Drawer Side Panel (P29), using 6 x Screws (H18), tightening with the Phillips Head Screwdriver.
  • Page 21 Step 28: To Assemble The Bed (A) You will need (H1) (H3) (H1) 6 x Cam Nuts 6 x Cam Bolts (H3) (H1) (H2) (H2) (H3) (H1) (H3) (H2) 12 x Dowels (H3) Phillips Head Screwdriver (H2) (H3) (H3) Insert 12 x Dowels into 2 x Headboard/Footboard Panels (P3) and the 2 x Bottom Panels (P4).
  • Page 22 Step 30 (H8) (H8) You will need (H8) (H8) 6 x Screws (H8) 1 x Allen Key (H4) (H4) (H8) (H8) (P16) Attach Bottom Panel (P4) to the Robe Top Panel (P6) with 6 x Screws, tightening with the Allen Key (H4). Only tighten to 70 percent. Step 31 (H4) You will need...
  • Page 23 Step 32 You will need Phillips Head Screwdriver Tighten the Nuts with the Phillips Head Screwdriver in the Rear Side Rail (P1) as shown. Step 33 You will need Phillips Head Screwdriver Tighten the Nuts with the Phillips Head Screwdriver in the Front Side Rail (P2) as shown. Page 23...
  • Page 24 Step 34 Make sure that these panels are aligned in correct position Determine where you would like for the finished loft bunk to be put in your room. Place the Desk (B) and the Robe (C) in position. Note that the total length of this loft bunk is 2100mm. Step 35 (H3) You will need...
  • Page 25 (H4) Step 36 (H7) (H7) (H8) (H10) (H10) (H7) (H10) (H10) You will need (H10) (H7) 8 x Screws (H7) (H10) 8 x Nuts (H10) (H7) (H7) (H7) 1 x Allen Key Phillips Head (H4) Screwdriver Opening of nut face incoming screw Insert 8 x Nuts (H10) into Headboard/Footboard Panels (P3).
  • Page 26 Step 38 You will need 1 x Hanging Rail (H22) (H22) (H21) (H22) Insert the 3 x Drawers into the compartments as shown. Place the Hanging Rail (H22) on to the Hanging Rail Supports (H21). Step 39 You will need 6 x Screws Phillips Head (H19)
  • Page 27 Step 40 You will need (H3) 9 x Dowels 4 x Feet Glides (H3) (H3) (H12) P35 x 3 (H3) Hammer (H12) (H12) (H12) (H12) (H12) Insert 9 x Dowels into the Ladder Step Support Panels (P35). Attach 4 x Feet glides (H12) to the bottom of the Ladder Side Panels (P33 & P34), gently using a Hammer or Soft Headed Mallet.
  • Page 28 Step 42 You will need 5 x Nuts 11 x Screws 5 x Screws (H5) (H7) (H10) 1 x Allen Key Phillips Head 8 x Dowels (H3) (H4) Screwdriver (H5) (H7) (H10) (H3) (H5) (H10) (H7) (H5) (H5) (H5) (H5) Opening of nut face incoming screw...
  • Page 29 Step 43 You will need 4 x Shelf Supports 5 x Cover Sticker (H11) (H23) (H23) (H23) (H23) (H11) (H23) (H23) Insert 4 x Shelf Supports (H11) into the Left Robe Side Panel (P13) and Middle Robe Panel (P15). Place the Shelf (P26) on the Shelf Supports (H11) as shown. Place 5 x Cover Stickers (H23) over the exposed holes into the ladder.
  • Page 30 Step 44 You will need Phillips Head 8 x Dowels 2 x Screws (H5) (H5) Screwdriver Screwdriver (H3) (H3) (H3) P39 x 2 (H3) (H3) (H3) P9 / P16 (H5) Insert 8 x Dowels (H3) into the 2 x Support Panels (P39) as shown. Attach 2 x Support Panels (P39) onto the Desk Top Panel (P9) and Robe Top Panel (P16), with 2 x Screws (H5), tightening with a Phillips Head Screwdriver.
  • Page 31 Step 45 Place the 2 x Bed Base Panels (P6) on top of the Bed Support Bars (P5). fantasticfurniture.com.au Page...

  • Page 32: Job Complete

    Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page...
