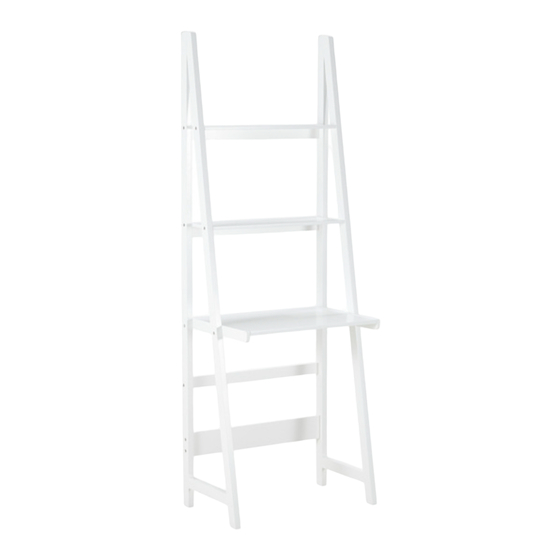

- Page 1 Version 1.0 TWO PEOPLE LEAN Bookcase Desk Large Narrow REQUIRED www.fantasticfurniture.com.au...
- Page 2 Enjoy Your purchase from Australia’s Best Value Furniture Store www.fantasticfurniture.com.au PAGE 2...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. -
Page 4: What You Need
What you need to assemble the product Shelf Panel Right Frame (P3) (P2) DO NOT USE Additional Tools Required Flat head screwdriver; Shelf Panel Phillips head screwdriver; Hammer (P4) Rail (P6) Rail (P8) Rail (P6) Left Frame (P1) Shelf Panel Rail (P5) Rail... - Page 5 Step 1 You will need (P7) (P8) 4 x Cam Bolts Phillips head (H7) screwdriver Attach 4 x Cam Bolts (H7) into Rails (P7, P8) with a Phillips head screwdriver. Step 2 (P8) (P5) You will need Rounded corner 4 x Dowels 4 x Cam Nuts (H2) (H8)
- Page 6 Step 4 countersink hole on You will need outside of shelf frame (P7) 2 x Bolts Phillips head (H3) screwdriver (P1) Attach Left Frame (P1) to Rail (P7) with 2 x Bolts (H3) using a Phillips head screwdriver. Step 5 You will need 4 x Small Dowels (H1)
- Page 7 Ensure slot in nut is Step 6 facing in-coming bolt. You will need (P4) 4 x Long 4 x Nuts (P3) Bolts (H4) (H5) Phillips head Flat head screwdriver screwdriver (P3) (P1) Push 4 x Long Bolts (H4) through Left Frame (P1), and connect with Shelf Panels (P3, P4) with 4 x Nuts (H5) using a Flat head screwdriver.
- Page 8 Step 8 (P2) You will need (P6) 5 x Small 2 x Bolts (H3) Dowels (H1) (P6) (P8) Phillips head screwdriver (P9) TWO PEOPLE REQUIRED Carefully turn the frame over. Insert 5 x Small Dowels (H1) into Rails (P6, P9). Attach Right Frame (P2) to Rail (P8) with 2 x Bolts (H3) using a Phillips head screwdriver.
- Page 9 Step 10 You will need (P2) (P1) Carefully turn the frame over. Attach 4 x Plastic Glides (H9) to the bottom of Frames (P1, P2) with a Hammer. Step 11 You will need (P2) 2 x Screws (H11) (P1) 2 x Washers Phillips head (H12) screwdriver...
-
Page 10: Job Complete
Step 12 You will need Wall 2 x Washers Phillips head (H12) screwdriver Screw Move the bookcase to the final position, and attach the to the wall securely. brackets Make sure it is firmly attached and snug fit. Recommended weight capacity for each shelf : 10KG. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully.
