fantastic furniture Lunar Manual

fantastic furniture Lunar Manual

Desk 1 drawer
Hide thumbs Also See for Lunar:

Advertisement

Quick Links

Download this manual

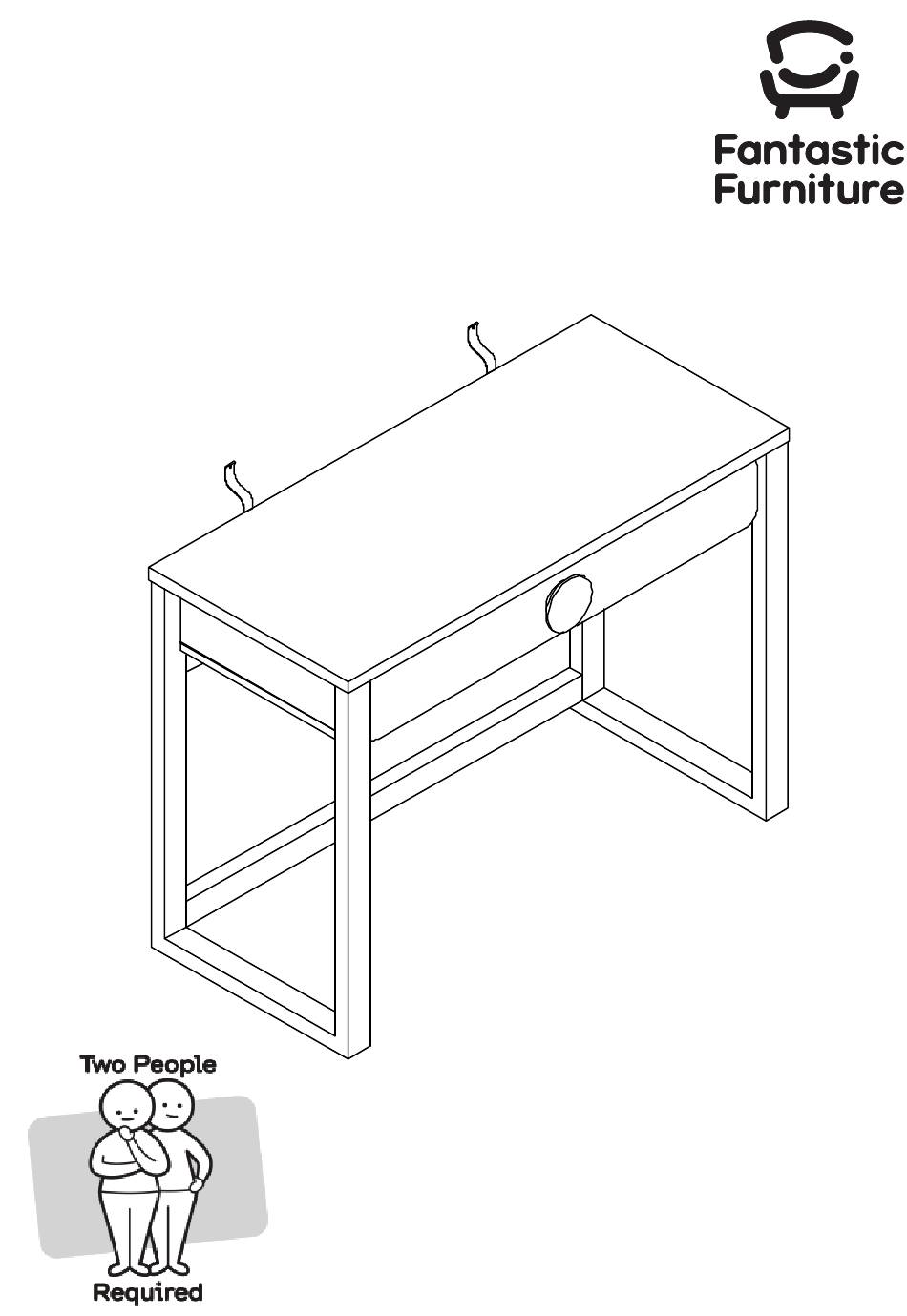

Version 1.1
Lunar
Desk 1 Drawer
fantasticfurniture.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lunar and is the answer not in the manual?

Questions and answers

Related Manuals for fantastic furniture Lunar

Summary of Contents for fantastic furniture Lunar

  • Page 1 Version 1.1 Lunar Desk 1 Drawer fantasticfurniture.com.au...
  • Page 2 ’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasti cfurni ture fantasticfurniture.com.au Page 2...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions Make sure you have all the required tools. Never use power tools unless instructed. carefully before you begin. Unless instructed, do not fully tighten Identify and lay out all of the components before you begin assembly. screw s until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product Other tools you need Phillips Head screwdriver;Hammer Box 1: Top Panel (P1) Steel Bar (P2) Left Side Panel (P3) Right Side Panel (P4) Back Panel (P5) Support Panel (P6) (P7) Base Panel Drawer Back Panel (P8) Drawer Side Panel (L) (P9)
  • Page 5 (H6) (H6) Step 1 You will need (H9) CL Runner CR Runner Track (H7) Track (H9) (H7) 6 x Runner Phillips Head Screws (H6) Screwdriver Attach CL Runner Track (H7) to the Left Side Panel (P3) with 3 x Runner Screws (H6), by tightening with a Phillips Head Screwdriver.
  • Page 6 Step 3 You will need (H11) 3 x Drawer (H11) Screws (H11) Phillips Head Screwdriver (H11) Add the Steel Bar (P2) to the underside of the Top Panel (P1) with 3 x Drawer Screws (H11), by tightening with the Phillips Head Screwdriver. Step 4 You will need (H1)
  • Page 7 (H4) Step 5 You will need (H4) 6 x Cam Nuts Phillips Head (H4) Screwdriver (H4) (H4) (H4) (H4) Insert 6 x Cam Nuts (H4) into the Back Panel (P5) and Support Panel (P6). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach the Base Panel (P5) and Support Panel (P6) to the Left Side Panel (P3) and Right Side Panel (P4), by tightening all Cam Nuts with the Phillips Head Screwdriver.
  • Page 8 Step 7 You will need (H11) (H11) 7 x Drawer 4 x Dowels (H11) (H11) (H2) Screws (H11) Phillips Head (H11) Screwdriver (H11) (H11) (H2) (H2) Insert 4 x Dowels (H2) into panels (P3 & P4). Attach the Base Panel (P7) to the panels (P3, P4 & P5) with 7 x Drawer Screws (H11), by tightening with the Phillips Head Screwdriver.
  • Page 9 Step 9 You will need 3 x Cam Nuts Phillips Head (H4) Screwdriver (H4) (H4) (H4) Insert 3 x Cam Nuts (H4) into the Drawer Side Panels (P9 & P10) and Drawer Support Panel (P13). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach the Drawer Front Panel (P12) to the panels (P9, P10 &...
  • Page 10 Step 11 You will need (H11) (H11) 6 x Drawer Phillips Head (H11) Screws Screwdriver (H11) (H11) Attach the Drawer Back Panel (P8) to the Drawer Side Panels (P9 & P10) and Drawer Support Panel (P13) with 6 x Drawer Screws (H11), by tightening with a Phillips Head Screwdriver. Step 12 You will need (H12)
  • Page 11 Step 13 You will need (H6) (H6) (H6) (H8) DL Runner DR Runner (H8) (H10) (H6) 6 x Runner Phillips Head (H6) (H6) Screws Screwdriver (H6) (H10) (H6) Attach 1 x DL Runner (H8) to the bottom of Drawer Side Panel L (P9) and 1 x DR Runner (H10) to the bottom of Drawer Side Panel R (P10) with 6 x Runner Screws (H6) by tightening with the Phillips Head Screwdriver.

  • Page 12: Job Complete

    Step 15 (H14) You will need 2 x Washers (H14) Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach this safety strap to your specific wall. Move the unit to the final position, and attach the safety strap to the wall securely.
