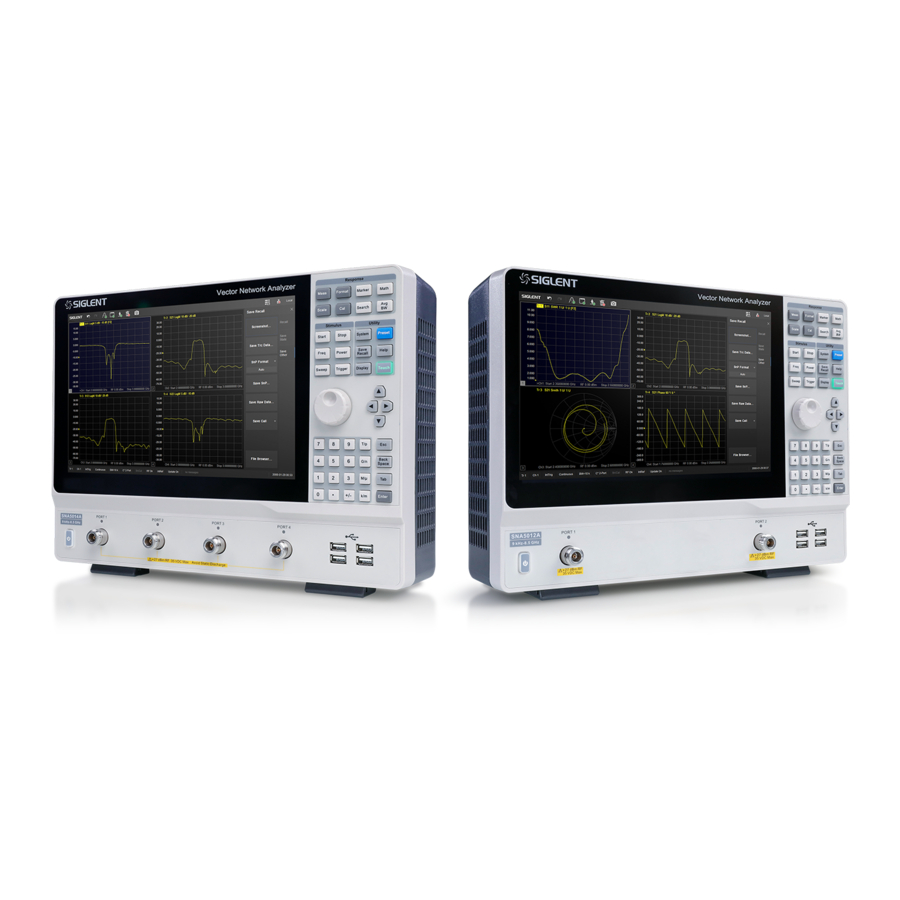

SIGLENT SNA5000A Quick Start Manual
Vector network analyzer
Hide thumbs
Also See for SNA5000A:
- User manual (243 pages) ,
- User manual (329 pages) ,
- User manual (295 pages)
Related Manuals for SIGLENT SNA5000A
Summary of Contents for SIGLENT SNA5000A
- Page 1 SNA5000A Series Vector Network Analyzer QuickStart QS09050_E01A SIGLENT TECHNOLOGIES CO., LTD...
-
Page 2: Table Of Contents
Rear panel ............................8 User interface ..........................10 Firmware operation ........................11 Touch operation ..........................12 Help information ........................12 Remote control ........................12 Product certification ......................12 For more product information ..................12 SNA5000A Vector Network Analyzer Quick Start... -
Page 3: Copyright And Statement
SIGLENT products are protected by patent law worldwide. Information in this publication replaces all previously corresponding material. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at the company’s sole decision. -
Page 4: General Inspection
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement Inspect the instrument: ... -
Page 5: Front Panel
Includes four USB ports for data exchange and power supply for USB Hub peripherals, the total current of four USB ports is less than 2 A. Test ports Connect to the DUT for signal transmission and reception. Power Switch Power on/off. SNA5000A Vector Network Analyzer Quick Start... - Page 6 Save and recall the measurement data, status, and calibration data. Recall Help Open the help file. Set the measurement window, measurement channel, measurement trace, and Display so on. Press this button to turn on/off the screen’s touch function. Touch SNA5000A Vector Network Analyzer Quick Start...
- Page 7 (1 second) will cause the instrument to save the current settings and then return to the stand-by state and the light will turn Orange. A long press (3 seconds) will cause the instrument to go to the stand-by state immediately without saving the settings. SNA5000A Vector Network Analyzer Quick Start...
- Page 8 RF connector will be lit up. To avoid damage to the instrument, the RF connector input signal must meet the following: The DC voltage and the maximum continuous RF power cannot exceed 35V and 27 dBm respectively. SNA5000A Vector Network Analyzer Quick Start...
-
Page 9: Rear Panel
When there is a 10 MHz external reference signal entering Signal the port, the VNA’s transmitting signal will be locked into this 10 MHz Input external reference signal, otherwise the VNA’s transmitting signal will be locked to the internal 10 MHz reference signal. SNA5000A Vector Network Analyzer Quick Start... - Page 10 The equipment accepts 100-240V, 50/60/400Hz AC power supply. AC Power Please connect the VNA to the AC power supply with the supplied power Port and cord. Make sure the current does not exceed the rated current of the Fuse fuse. SNA5000A Vector Network Analyzer Quick Start...
-
Page 11: User Interface
RF power level. Display the trigger mode, intermediate frequency bandwidth (IFBW), Status Bar calibration data status, RF power switch on or off, and update state. Message Display the system time and error logs. SNA5000A Vector Network Analyzer Quick Start... -
Page 12: Firmware Operation
Firmware upgrade Follow this procedure to update the instrument firmware 1. Download the firmware package from official SIGLENT websites only. 2. Extract and copy the .ADS file into the root directory of a USB stick. 3. Insert the USB stick into a USB port, Press System → Upgrade, and select the update file, click OK to update the system software. -
Page 13: Touch Operation
VISA software, users can remotely control the VNA. 12. Product certification SIGLENT guarantees this product conforms to the national and industrial standards in China as well as the ISO9001: 2008 standard and the ISO14001: 2004 standard. Other international standard conformance certification is in progress. - Page 14 SNA5000A Vector Network Analyzer Quick Start...
