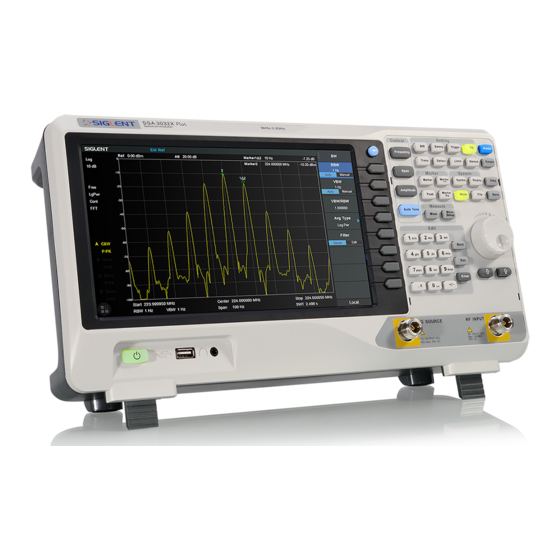

SIGLENT SSA3000X Plus Quick Manual
Spectrum analyzer
Hide thumbs
Also See for SSA3000X Plus:
- User manual (187 pages) ,
- User manual (118 pages) ,
- User manual (186 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIGLENT SSA3000X Plus
Summary of Contents for SIGLENT SSA3000X Plus

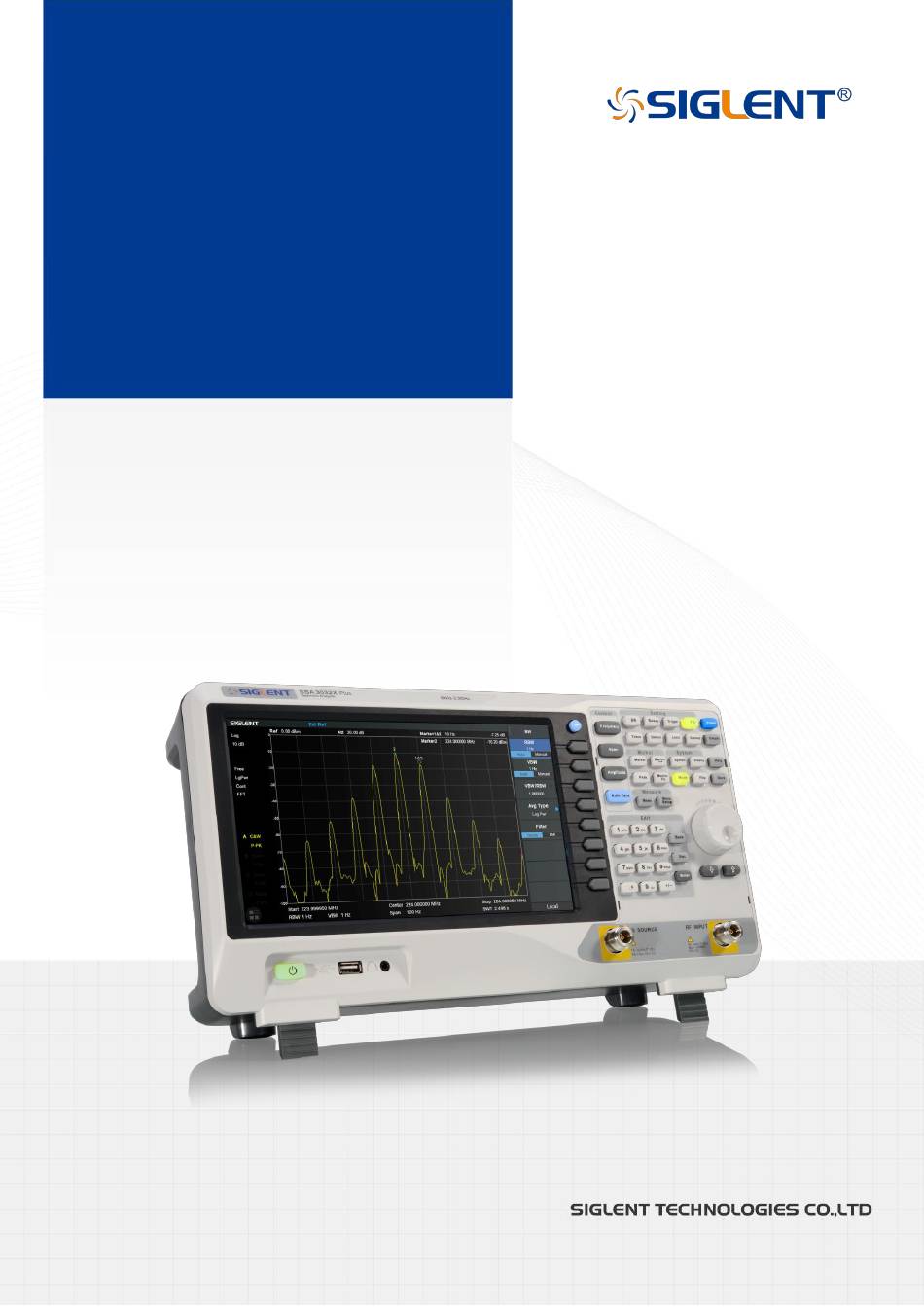

- Page 1 SSA3000X Plus Spectrum Analyzer Quick Guide QG0703P-E01A...
-
Page 3: Trademark Information
Declaration SIGLENT products are protected by patent law worldwide SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material. - Page 4 Avoid Exposed Circuit or Components Do not touch exposed contacts or components when the power is on. Do Not Operate Without Covers Do not operate the instrument with covers or panels removed. proper Fuse. Use only the specified fuse. SSA3000X Plus Quick Guide...
- Page 5 Indicates potential injuries or hazards that may happen. CAUTION Indicates potential damages to the instrument or other property that may happen. Symbols on the product. These symbols may appear on the product: Hazardous Protective Earth Warning Test Power Switch Voltage Terminal Ground SSA3000X Plus Quick Guide...
- Page 7 The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement. Inspect the instrument If the instrument is found to be damaged, defective or fails in electrical or mechanical tests, please contact SIGLENT.
- Page 8 Before powering on, make sure the analyzer is protected by a fuse. Fuse holder The Plug Figure 5 Power Cord Connection SSA3000X Plus Quick Guide...
- Page 9 Description Description User Graphical Interface, touch support RF Input Menu Control Keys TG Output Function Keys 3.5 mm Earphone interface Knob USB Host Numeric / Letter Keyboard Power Switch Arrow Keys Figure 7 Function Keys area SSA3000X Plus Quick Guide...
- Page 10 Use the file system and files. Shortcut Keys Description Sets the system to certain status. Preset Couple Set the parameters of some functions between auto and manual. Help Turn on the built-in help. Save Shortcut Key. Save SSA3000X Plus Quick Guide...
- Page 11 In the number input mode, this key enters the number “1”. In file input mode, this toggles the between upper and lowercase letters. In number input mode, this key enters a decimal point. In English input mode, this key enters special characters (!, -, (, etc..). SSA3000X Plus Quick Guide...
- Page 12 The analyzer can serve as a “host” device to connect an external USB devices, such as USB storage devices, the SIGLENT USB-GPIB adapter, wireless or wired mouse and keyboard. Save or recall functional files into/from an external USB storage device, such as saving the currently screenshot in .png or .jpg or .bmp format.
- Page 13 To avoid damage to the instrument, the RF input signal must meet the following: TheDC voltage component and the maximum continuous power of the AC (RF) signal component cannot exceed 50 V and +30 dBm respectively. SSA3000X Plus Quick Guide...
- Page 14 When the external reference is lost or not connected, the instrument switches to its internal reference source automatically and “Ext Ref” on the screen disappears. The [10 MHz IN] and [10 MHz OUT] connectors are usually used to build synchronization among multiple instruments. SSA3000X Plus Quick Guide...
- Page 15 The analyzer accepts 100-240V, 50/60Hz or 100-120V 400Hz AC power supply. Please use the power cord provided as accessories to connect the instrument. Fuse Before power on, make sure the analyzer is protected by the proper input fuse. SSA3000X Plus Quick Guide...
- Page 16 Auto Tune: Automatically sets the optimal parameters according to the characteristics of input signal Waiting for Trigger: waiting for trigger Marker y value Amplitude value or amplitude delta value USB identification Displayed when an USB storage device is inserted SSA3000X Plus Quick Guide...
- Page 17 Log power\Power\Voltage power Trigger type Free\Video\External trigger Ref offset 34：Ref offset identification；35：Ref offset value Scale/Div Scale value Scale type Logarithm or linearity Limit line Limit Pass/Fail level Trigger level Video trigger level Display line Reference display line SSA3000X Plus Quick Guide...
- Page 18 The option will be enabled after rebooting. Follow this procedure to update the instrument firmware: Download the firmware package from an official SIGLENT website, refer to “Contact Us”. Extract and copy the .ADS file into the root directory of an USB storage device.
- Page 19 You can also remote monitor and control the analyzer in Web Browser or EasySpectrum. For more details, refer to the “Programming Guide” or contact your nearest SIGLENT office. The analyzer has a 10.1 inch multi-touch screen and supports various gesture operations. Including: ...
- Page 20 SIGLENT warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years (accessories for a period of one year) from the date of shipment from an authorized Siglent distributor. If the product proves defective within the respective period, SIGLENT will provide repair or replacement as described in the complete warranty statement.
- Page 21 (4) Calibrate the instrument regularly to reduce or avoid errors that might occur over time. If you need a specific calibration after the stated calibration period, contact SIGLENT or get paid service from authorized measurement agencies.
- Page 22 6557 Cochran Rd Solon, Ohio 44139 Tel: 440-398-5800 Toll Free: 877-515-5551 Fax: 440-399-1211 Email: info@siglent.com www.siglentna.com Website: Europe Siglent Technologies Germany GmbH ADD: Liebigstrasse 2-20, Gebaeude 14, 22113 Hamburg Germany Tel: +49(0)-819-95946 Fax: +49(0)-819-95947 Email: info-eu@siglent.com www.siglenteu.com Website: SSA3000X Plus Quick Guide...
- Page 23 SSA3000X Plus Quick Guide...
- Page 24 SSA3000X Plus Quick Guide...
