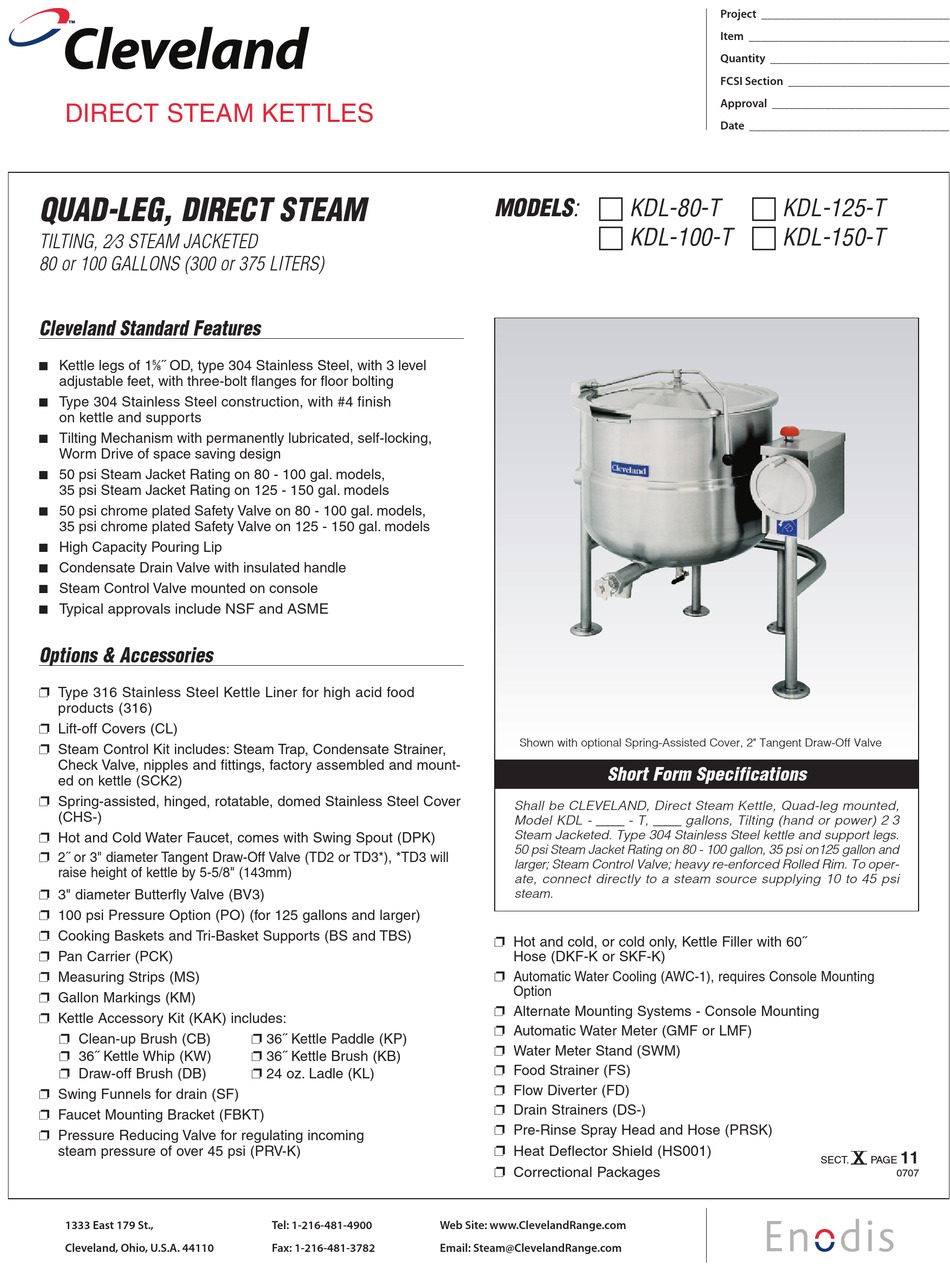

Cleveland KDL-100-T Specification Sheet

™
Cleveland
DIRECT STEAM KETTLES
QUAD-LEG, DIRECT STEAM
TILTING, 2⁄3 STEAM JACKETED
80 or 100 GALLONS (300 or 375 LITERS)
Cleveland Standard Features
I
5
Kettle legs of 1 ⁄ ˝ OD, type 304 Stainless Steel, with 3 level
8
adjustable feet, with three-bolt flanges for floor bolting
I
Type 304 Stainless Steel construction, with #4 finish
on kettle and supports
I
Tilting Mechanism with permanently lubricated, self-locking,
Worm Drive of space saving design
I
50 psi Steam Jacket Rating on 80 - 100 gal. models,
35 psi Steam Jacket Rating on 125 - 150 gal. models
I
50 psi chrome plated Safety Valve on 80 - 100 gal. models,
35 psi chrome plated Safety Valve on 125 - 150 gal. models
I
High Capacity Pouring Lip
I
Condensate Drain Valve with insulated handle
I
Steam Control Valve mounted on console
I
Typical approvals include NSF and ASME
Options & Accessories
Ë Type 316 Stainless Steel Kettle Liner for high acid food
products (316)
Ë Lift-off Covers (CL)
Ë Steam Control Kit includes: Steam Trap, Condensate Strainer,
Check Valve, nipples and fittings, factory assembled and mount-
ed on kettle (SCK2)
Ë Spring-assisted, hinged, rotatable, domed Stainless Steel Cover
(CHS-)
Ë Hot and Cold Water Faucet, comes with Swing Spout (DPK)
Ë 2˝ or 3" diameter Tangent Draw-Off Valve (TD2 or TD3*), *TD3 will
raise height of kettle by 5-5/8" (143mm)
Ë 3" diameter Butterfly Valve (BV3)
Ë 100 psi Pressure Option (PO) (for 125 gallons and larger)
Ë Cooking Baskets and Tri-Basket Supports (BS and TBS)
Ë Pan Carrier (PCK)
Ë Measuring Strips (MS)
Ë Gallon Markings (KM)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Swing Funnels for drain (SF)
Ë Faucet Mounting Bracket (FBKT)
Ë Pressure Reducing Valve for regulating incoming
steam pressure of over 45 psi (PRV-K)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
Tel: 1-216-481-4900
Fax: 1-216-481-3782
MODELS:

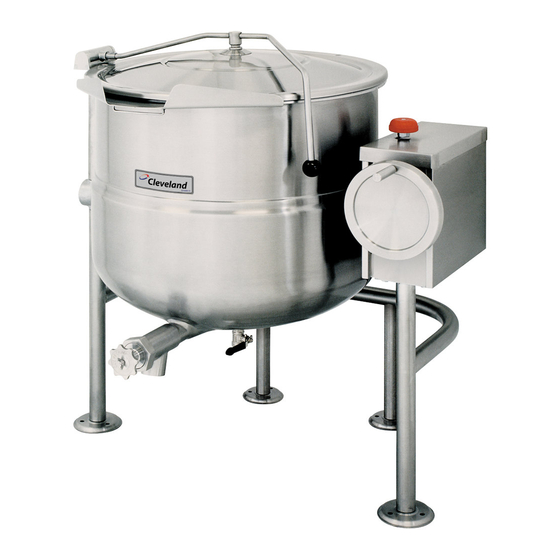

Shown with optional Spring-Assisted Cover, 2" Tangent Draw-Off Valve
Short Form Specifications
Shall be CLEVELAND, Direct Steam Kettle, Quad-leg mounted,
Model KDL - _____ - T, _____ gallons, Tilting (hand or power) 2 3
Steam Jacketed. Type 304 Stainless Steel kettle and support legs.
50 psi Steam Jacket Rating on 80 - 100 gallon, 35 psi on125 gallon and
larger; Steam Control Valve; heavy re-enforced Rolled Rim. To oper-
ate, connect directly to a steam source supplying 10 to 45 psi
steam.
Ë Hot and cold, or cold only, Kettle Filler with 60˝
Hose (DKF-K or SKF-K)
Ë Automatic Water Cooling (AWC-1), requires Console Mounting
Option
Ë Alternate Mounting Systems - Console Mounting
Ë Automatic Water Meter (GMF or LMF)
Ë Water Meter Stand (SWM)
Ë Food Strainer (FS)
Ë Flow Diverter (FD)
Ë Drain Strainers (DS-)
Ë Pre-Rinse Spray Head and Hose (PRSK)
Ë Heat Deflector Shield (HS001)
Ë Correctional Packages
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
KDL-80-T KDL-125-T
KDL-100-T KDL-150-T
X 11
SECT. PAGE
0707
