Cleveland KDL-100-F Specifications

™
Cleveland
DIRECT STEAM KETTLES
TRI-LEG , DIRECT STEAM
STATIONARY, FULL STEAM JACKETED
30, 40, 60, 80, 100, 125 or 150, GALLONS
(110, 150, 225, 300, 375, 475 or 575 LITERS
Cleveland Standard Features
I
Full Steam Jacketed for faster heating
I
Low working height (37.00˝)
I
5
Tri-leg supports of 1 ⁄ ˝ O.D., type 304 Stainless Steel tubular
8
construction, with level adjustable flanged feet for floor bolting
I
Kettle and all exterior surfaces are Stainless Steel
for ease of cleaning
I
Spring-assisted Cover: domed, hinged, one-piece
rotatable (not available on KDL-125-F)
I
2˝ diameter Tangent Draw-off Valve, with Drain Strainer
I
50 psi Steam Jacket Rating on 30 - 60 gal. models,
35 psi Steam Jacket Rating on 80 - 125 gal. models
I
50 psi chrome plated Safety Valve on 30 - 60 gal. models,
35 psi chrome plated Safety Valve on 80 - 125 gal. models
I
Condensate Drain Valve with insulated handle
I
Faucet Mounting Bracket
I
Steam Control Inlet Valves
I
Typical approvals include NSF and ASME
Options & Accessories
Ë 316 Stainless Steel Kettle Liner for high acid food
products (316-G)
Ë Lift-off Covers (CL)
Ë Chrome plated Steam Control Kit includes: Steam Traps,
Condensate Strainers, Check Valves, nipples and fittings,
factory assembled and mounted on kettle (SCK1)
Ë Hot and Cold Water Faucet, comes with Swing Spout
Ë 100 psi Pressure Option (PO) (for 125 gallons and larger)
Ë Cooking Baskets and Tri-Basket Supports (BS and TBS)
Ë Measuring Strips (MS)
Ë Gallon Markings (KM)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Swing Funnels for drain (SF)
Ë Drain Strainers (DS-)
Ë Pressure Reducing Valve for regulating incoming
steam pressure of over 45 psi (PRV-K)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
Tel: 1-216-481-4900
Fax: 1-216-481-3782
MODELS:

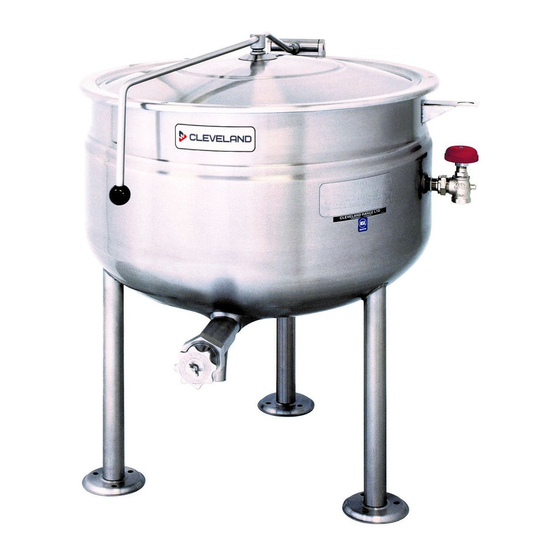

Shown with optional Steam Control Kit
Short Form Specifications
Shall be CLEVELAND, Direct Steam Kettle, Tri-leg, stationary,
Model KDL - _____ - F. Full Steam Jacketed, type 304 Stainless Steel
with 50 psi Steam Jacket Rating on 30 - 60 gallon, 35 psi on 80 gallon
and larger. Tri-leg supports to be Stainless Steel. Includes spring-
assisted Domed Cover and 2 diameter Tangent Draw-off Valve;
heavy re-enforced Rolled Rim. To operate, connect directly to a
steam source supplying from 5 to 45 psi on 30 and 40 gallon mod-
els; 30 psi on larger models.
Ë Hot and cold, or cold only, Kettle Filler with 60˝
Hose (DKF-K or SKF-K)
Ë Automatic Water Cooling* (AWC-1)
* requires Console Mounting Option
Ë Alternate Mounting Systems - Console Mounting
Ë Automatic Water Meter (GMF gallons or LMF liters)
Ë Water Meter Stand (SWM)
Ë 3" diameter Tangent Draw-Off Valve w/Strainer (TD3)
Ë 3" diameter Butterfly Valve (BV3)
Ë Pre-Rinse Spray Head and Hose (PRSK)
Ë Correctional Packages
Ë Heat Deflector Shield (HS001)
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
