Cleveland KDL-40-SH Specifications

™
Cleveland

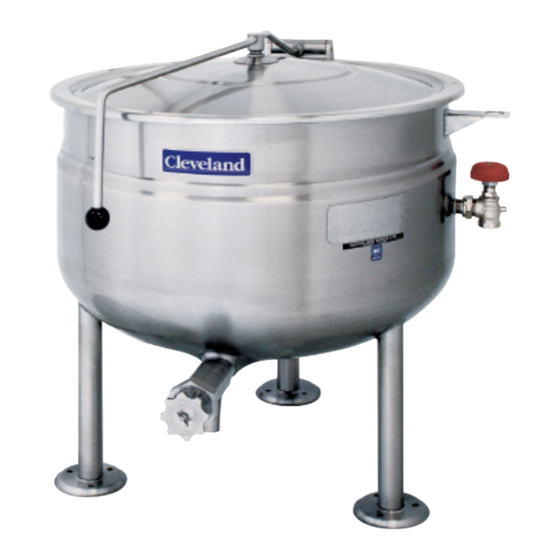

DIRECT STEAM KETTLES
SHORT SERIES™ DIRECT STEAM KETTLES
RIM HEIGHTS - 32.1˝ (40 GALLON), 34.8˝ (60 & 80 GALLONS)
STATIONARY, FULL STEAM JACKETED
40, 60 or 80 GALLONS (150, 225 or 300 LITERS)
Cleveland Standard Features
I
50 psi Steam Jacket Rating and 50 psi chrome plated
Safety Valve
I
Type 304 Stainless Steel with #4 finish on kettle and
supports
I
Spring-assisted, hinged, rotatable, domed Stainless
Steel Cover
I
2˝ Tangent Draw-Off Valve with Drain Strainer
I
Faucet Mounting Bracket (FBK)
I
Steam Control Inlet Valve
I
Condensate Drain Valve with insulated handle
I
Level adjustable flanged feet for floor bolting
I
Typical approvals include NSF and ASME
Options & Accessories
Ë 316 Stainless Steel Interior Liner (316G)
Ë Factory installed Steam Control Kit, consisting of a Steam
Trap, Condensate Strainer and Check Valve (SCK1)
Ë 3˝ Tangent Draw-off Valve (TD3)
Ë 3˝ Butterfly Valve (BV3)
Ë Hot & Cold Water Faucet (DPK)
Ë Pressure Reducing Valve for regulating incoming steam
pressure over 45 psi (PRVK)
Ë Kettle Accessory Kit (KAK)
Ë Tri-Basket Strainer Support Systems (TBS)
Ë Kettles Markings (KM)
Ë Measuring Strips (MS)
Ë Correctional Packages
Ë Heat Deflector Shield (HS001)
Ë Isulated Out Jacket (IOJ)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: KDL-40-SH
KDL-60-SH
Short Form Specifications
Cleveland Direct Steam Stationary Kettle, Model KDL-( )SH, 32 rim
height (40 gal), 34 rim height (60, 80 gal) fully steam jacketed, 50
psi Steam Jacket Rating, spring-assisted rotable Domed cover,
Faucet Bracket, 2 Tangent Draw-off Valve; heavy re-enforced
Rolled Rim.
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
KDL-80-SH
X 23
SECT. PAGE
0707
