Operator's Manual
™
Cleveland

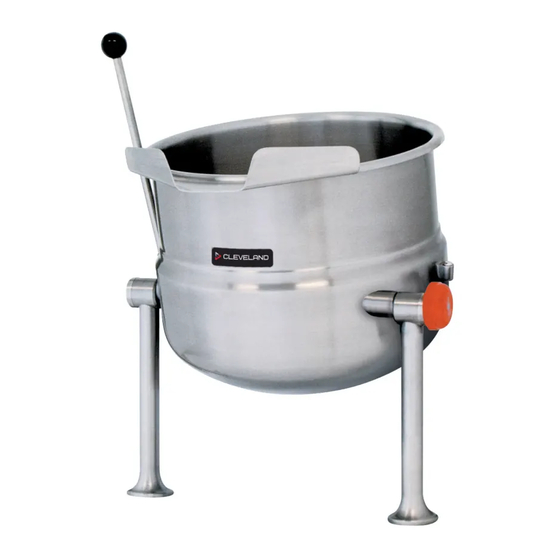

DIRECT STEAM KETTLES
TABLE TYPE, DIRECT STEAM
TILTING, 2⁄3 STEAM JACKETED
3 or 6 GALLONS (11 or 23 LITERS)
Cleveland Standard Features
I Type 304 Stainless Steel construction, with #4 finish on
kettle and supports
I Manual Tilting, balanced design
I Mounting Lugs for Tilt Handle provided on both sides
I High capacity Pouring Lip
I 50 psi Steam Jacket Rating
I 50 psi chrome plated Safety Valve
I Steam Control Valve
I Typical approvals include NSF and ASME
Options & Accessories
Ë Type 316 Stainless Steel kettle interior for high acid food
products (316)
Ë Kettle stand or table (ST28)
Ë Food Strainers (FS)
Ë Steam Pressure Reducing Valve, where supply pressure
exceeds 45 psi (PRV)
Ë Steam Condensate Trap and Strainer, chrome plated
Ë Steam supply Moisture Separator/Trap (MS)
Ë Single or Double Pantry Faucet with Swing Spout
(SPK or DPK)
Ë Steam Control Kit: includes Steam Trap, Condensate
Strainer, Check Valve, nipples and fittings (SCK2)
Ë One piece, Lift-off Cover (CL-)
Ë Adapter Top, required when mounting to ST28 Stand (AK)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782
Email: Steam@ClevelandRange.com
MODELS:
KDT-3-T
KDT-6-T
Short Form Specifications
Shall be CLEVELAND, Direct Steam Kettle, Table mounted, Tilting;
Model KDT - ____ - T, ____ gallons, Tilting 2 3 Steam Jacketed. Type
304 Stainless Steel kettle and supports. 50 psi Steam Jacket
Rating; Steam Control Valve. Trunnion mounted, self-lubricated Steam
Control Valve. (Table not included.)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
X
SECT.
PAGE
0707
3
Advertisement
Related Manuals for Cleveland KDT-3-T
Summary of Contents for Cleveland KDT-3-T
- Page 1 KDT-3-T KDT-6-T Short Form Specifications Shall be CLEVELAND, Direct Steam Kettle, Table mounted, Tilting; Model KDT - ____ - T, ____ gallons, Tilting 2 3 Steam Jacketed. Type 304 Stainless Steel kettle and supports. 50 psi Steam Jacket Rating; Steam Control Valve. Trunnion mounted, self-lubricated Steam Control Valve.
- Page 2 Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer. Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.
