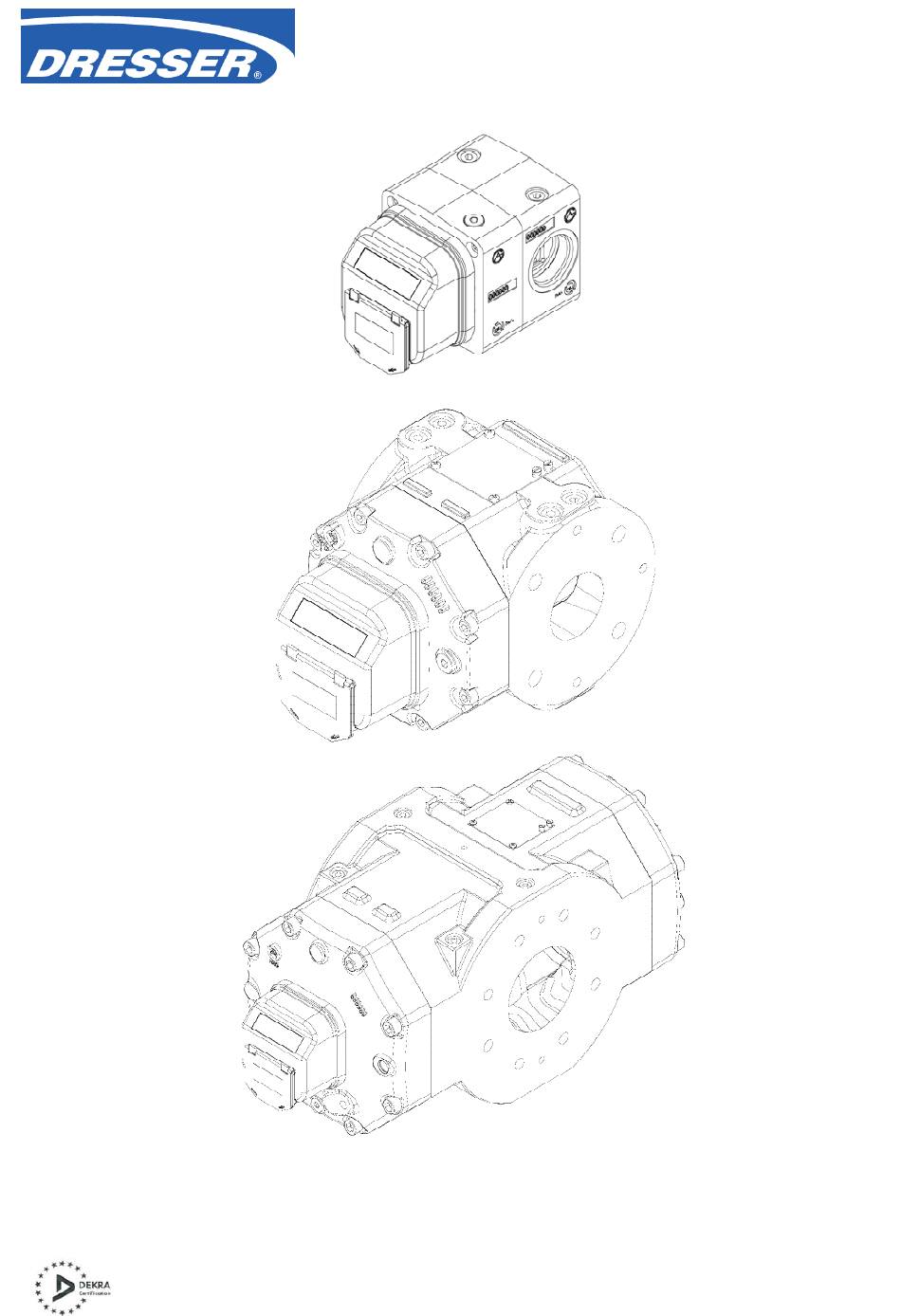

- Page 1 Installation and operation manual Series: iMRM and iMRM-TWIN Page 1/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH...
- Page 2 Installation and operation manual Series: iMRM and iMRM-TWIN Document Conventions Warning Indicates a procedure that has to be followed strictly as contravention could result in escaping gas, and cause property damage, serious injury or death Caution Highlights a procedure which, if not strictly followed, can result in damage to the meter Note Is an important element of the procedure and should be observed Page 2/27...
-
Page 3: Table Of Contents
Installation and operation manual Series: iMRM and iMRM-TWIN CONTENTS 1 INTRODUCTION 2 GENERAL DESCRIPTION 3 RECEIVING, HANDLING AND STORAGE 4 INSTALLATION 5 MAINTENANCE 6 TROUBLE SHOOTING 7 TECHNICAL DATA APPENDIX Page 3/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH... -
Page 4: Introduction

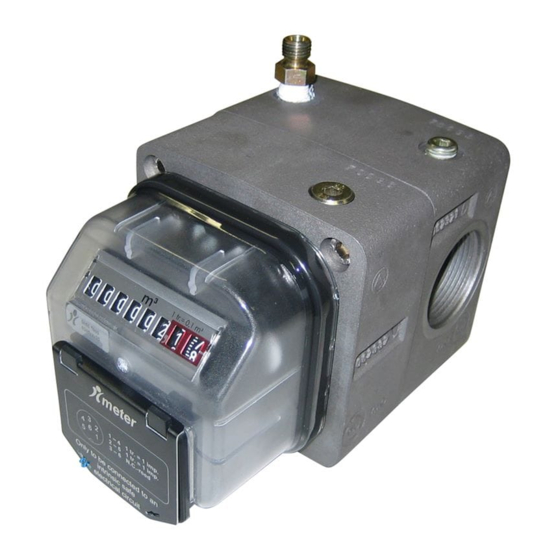

Series: iMRM and iMRM-TWIN 1 INTRODUCTION The DRESSER iMRM Rotary Piston Gas Meter is a positive displacement type of meter which, by means of two counter-rotating impellers and a counting mechanism, measures a known volume of gas with each rotation. As a result of years of development and experience, DRESSER has been able to provide a meter of unparalleled accuracy and turn down ratio. - Page 5 Using a special coupling, the index of the meter can be changed on-site with the meter in-line. This enables to change the functionality in the future by just “one click”. The Index is already prepared for the most commonly used functions. For information regarding availability contact DRESSER or the DRESSER representative.
-
Page 6: Receiving, Handling And Storage
Do not add oil to the meter until after the meter has been installed in a permanent installation and is ready for service. • When reporting a suspected problem, please provide the following information: Your sales order number and/or DRESSER’s order number. Page 6/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH... -
Page 7: Installation
Application information such as gas type, pressure, temperature and flow characteristics. Authorization for return is required for all DRESSER Products shipped to the Factory for repair, calibration, warranty, exchange or credit. To obtain authorization for return of DRESSER products purchased from an DRESSER Distributor of Representative, please contact the Distributor or Representative from whom the product was purchased. - Page 8 Installation and operation manual Series: iMRM and iMRM-TWIN Placing meter in line Remove the plastic protective caps or tape from both meter flanges prior to meter installation. 1. Before installing a meter: Make sure upstream piping clean partially opening valve sufficient amount of gas blow to atmosphere.
- Page 9 Installation and operation manual Series: iMRM and iMRM-TWIN Meter Start-UP Slowly pressurize meter accordance with following recommendations. Do not exceed 5 psig/second (35 kPa/second) maximum when pressurizing. Rapid pressurization can cause an over-speed condition which may damage the meter. Resulting damage is not covered by warranty. a) Open the bypass and outlet (downstream of meter) gas valves.
-
Page 10: Maintenance
The oil reservoir should be visually inspected for proper mid-gauge oil levels twice a year. Add oil as necessary. Use only Shell Morlina10 Oil or equivalent instrument grade oils approved for service by DRESSER. Oil change frequency will depend upon the cleanliness of the gas being measured. Change oil when the level increases significantly, indicating an accumulation of moisture. -
Page 11: Trouble Shooting
If an electronic output does not appear to work or does not agree with the mechanical readings, the electronic pulse box can be exchanged without removing the index. Contact DRESSER or the DRESSER representative for the exchange procedures. -
Page 12: Technical Data
Installation and operation manual Series: iMRM and iMRM-TWIN Trouble Item Possible Cause Remedy No Flow registered Obstruction in piping or meter Check piping and valves to assure an open flow path Low volume Meter oversized for load Change meter size Registration Leak at meter bypass Check bypass and valves... - Page 13 Installation and operation manual Series: iMRM and iMRM-TWIN Dimensions Weight Type (dm³) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (Kg) G16 DIN 0,69 40/50 110/125 G16 ANSI 0,69 40/50 98,6/120,7 ½ / G25 DIN 0,69 40/50 110/125 G25 ANSI 0,69 40/50 98,6/120,7 ½...
- Page 14 Installation and operation manual Series: iMRM and iMRM-TWIN Specifications G160 G400 G650 Specification Units G100 G160 G250 TWIN TWIN TWIN Base Rating (Qmax) m³/h 1000 Max. Operating Pressure 1700 Rangeability (+/- 1%) 25 : 1 40 : 1 65 : 1 100 : 1 100 : 1 100 : 1...
-
Page 15: Appendix
:Rotary Displacement Meters ANSI B109.3 :Rotary Displacement Gas meters Should after reading this manual carefully any doubts or questions remain, contact DRESSER or the local DRESSER representative before any actions taken. APPENDIX Parts List iM-RM standard Exploded View iM-RM standard Parts List iM-RM Twin excl. - Page 16 Installation and operation manual Series: iMRM and iMRM-TWIN ITEM QTY. DESCRIPTION MAJOR ASSEMBLIES PART NO. Body 1 1/2" ANSI 0020-7112-0110 Body-2"-ANSI 0020-7112-0100 Body-3"-ANSI 0020-7112-0102 Impeller-G65-(upper) 0020-7132-0200 Impeller-G100-(upper) 0020-7132-0201 Deep-groove-ball-bearing 7050-2011-2501 Plain-washer 7151-0530-03001 Cross-recessed-pan-head-screw---philips 7151-0340-03008 Impeller-G65-(lower) 0020-7132-0100 Impeller-G100-(lower) 0020-7132-0101 O-ring 7070-1010-1501 Synchronisation-plate 0020-0142-0101 Gear-wheel...
- Page 17 Installation and operation manual Series: iMRM and iMRM-TWIN Page 17/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH...
- Page 18 Installation and operation manual Series: iMRM and iMRM-TWIN Page 18/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH...
- Page 19 Installation and operation manual Series: iMRM and iMRM-TWIN Parts List iM-RM Twin – excl. Index ITEM QTY. DESCRIPTION MAJOR ASSEMBLIES PART NO. Body Twin 3" ANSI 0020-7112-0200 Body Twin 4" ANSI 0020-7112-0208 Body Twin 6" ANSI 0020-7112-0206 7139-0071-06010 Bearing bush 0020-0201-0101 Bearing bush 0020-0201-0100...
- Page 20 Installation and operation manual Series: iMRM and iMRM-TWIN Cover 0020-0122-0100 Glass tablet 6050-1010-0100 Ring oil glass 6020-0140-0100 Circular self-locking ring 7136-0350-01601 Hybrid connector 6020-0140-0111 Separating bush 6020-0140-0102 Needle roller 7050-4010-0212 O-ring 7070-2010-2502 Ring 7070-3010-0100 O-ring 7070-2010-1001 Plug 7107-0630-14201 Magnet 6040-1010-2805 Magnet holder 6010-0150-0100 Ball...
- Page 21 Installation and operation manual Series: iMRM and iMRM-TWIN Exploded-View iM RM Twin excl. Index - part1 Page 21/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH...
- Page 22 Installation and operation manual Series: iMRM and iMRM-TWIN Exploded-View iM RM Twin excl. Index – part2 Page 22/27 An EN ISO 9001: 2000 certified Company iTN 30107rev00_ENGLISH...
- Page 23 Installation and operation manual Series: iMRM and iMRM-TWIN Environmental conditions applicable to the Meter: Mechanical class M2 & Electromagnetic class E1 Ambient temperature range from -25°C to +55°C Meter can be placed in open air. Avoid direct sunlight on the meter. IP-clasification of Index: IP65 ( No condensation possible ) Check the meter for damage due to transportation and handling.
- Page 24 Installation and operation manual Series: iMRM and iMRM-TWIN Figures 2 Flange to flange: 121mm Vertical position: Flow downwards Filling Plug Filling Plug Sight Glass Sight Glass Drain Plug Figures 3 Flange to flange: 171mm or 241mm Horizontal position: Left to right or right to left Vertical position: Flow downwards Page 24/27 An EN ISO 9001: 2000 certified Company...
- Page 25 Installation and operation manual Series: iMRM and iMRM-TWIN Figures 4 Flange to flange: 171mm or 241mm Horizontal position: Left to right or right to left Vertical position: Flow downwards Filling Plug Sight Glass Drain Plug 171 Horizontal position – Flow left to right or right to left 171 Vertical position- Flow downwards Page 25/27 An EN ISO 9001: 2000 certified Company...
- Page 26 Installation and operation manual Series: iMRM and iMRM-TWIN Filling Plug Sight Glass Drain Plug 241 Horizontal position – Flow left to right or right to left 241 Vertical position- Flow downwards Figures 5 3 mm 3 mm Oil volumes (approx.) Horizontal position Vertical position iMRM 121...
- Page 27 Installation and operation manual Series: iMRM and iMRM-TWIN Low Frequency Pin Configuration 1 – 4 1 tr. = 1 imp. 2 – 5 1 tr. = 1 imp. 3 – 6 N.C. Reed Switch High Frequency Pin Configuration 3(-) 6(+) = HF1 KEMA 01 ATEX 1264x IECEx KEM 06.0036X See also iTN 33102...
