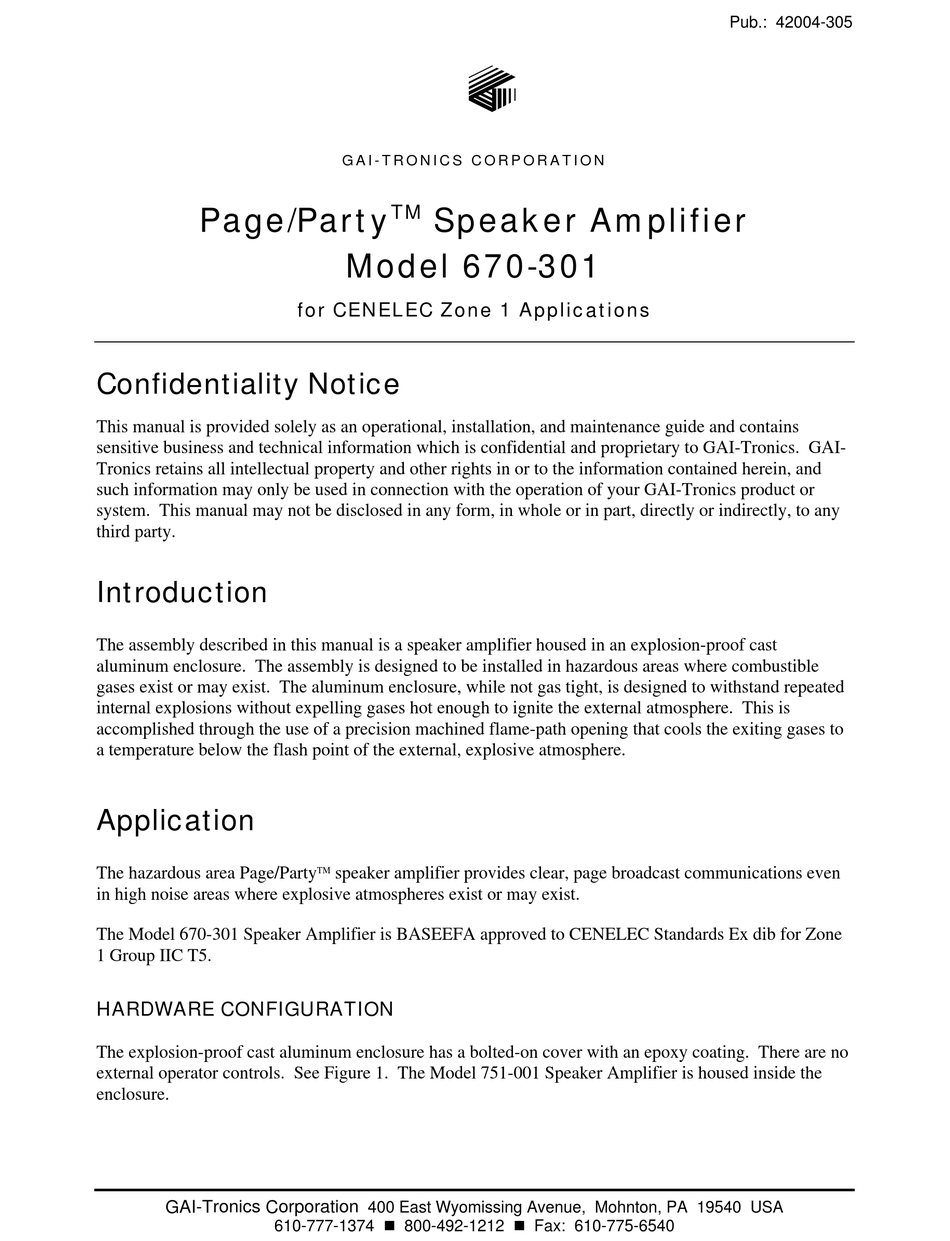

Pub.: 42004-305
G A I - T R O N I C S C O R P O R A T I O N
Page/Party
Speaker Amplifier
TM
Model 670-301
for CENELEC Zone 1 Applications
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information which is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
Introduction
The assembly described in this manual is a speaker amplifier housed in an explosion-proof cast
aluminum enclosure. The assembly is designed to be installed in hazardous areas where combustible
gases exist or may exist. The aluminum enclosure, while not gas tight, is designed to withstand repeated
internal explosions without expelling gases hot enough to ignite the external atmosphere. This is
accomplished through the use of a precision machined flame-path opening that cools the exiting gases to
a temperature below the flash point of the external, explosive atmosphere.
Application
The hazardous area Page/Party
TM
speaker amplifier provides clear, page broadcast communications even
in high noise areas where explosive atmospheres exist or may exist.
The Model 670-301 Speaker Amplifier is BASEEFA approved to CENELEC Standards Ex dib for Zone
1 Group IIC T5.
HARDWARE CONFIGURATION
The explosion-proof cast aluminum enclosure has a bolted-on cover with an epoxy coating. There are no
external operator controls. See Figure 1. The Model 751-001 Speaker Amplifier is housed inside the
enclosure.
GAI-Tronics Corporation
400 East Wyomissing Avenue, Mohnton, PA 19540 USA
610-777-1374 n 800-492-1212 n Fax: 610-775-6540

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Page/Party 670-301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GAI-Tronics Page/Party 670-301

  • Page 1 Tronics retains all intellectual property and other rights in or to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
  • Page 2 PAGE: 2 OF 10 PUB.: 42004-305 670-301 P ™ S MODEL ARTY PEAKER MPLIFIER Figure 1. Model 670-301 Speaker Amplifier - Front View The cable gland entries for Model 670-301 are shown in Figure 2. The following entries are on the base: three M25 entries (two fitted with plugs);...
  • Page 3: Block Diagram

    PAGE: 3 OF 10 PUB.: 42004-305 670-301 P ™ S MODEL ARTY PEAKER MPLIFIER Figure 3. Model 751-001 Plug-in Amplifier - Side View BLOCK DIAGRAM Figure 4. Model 670-301 Block Diagram P1 is the 16-pin male connector located on the back of the plug-in amplifier's printed circuit board assembly (PCBA).
  • Page 4: Installation

    PAGE: 4 OF 10 PUB.: 42004-305 670-301 P ™ S MODEL ARTY PEAKER MPLIFIER INTERFACES The assembly interfaces to the multi-party cable and the external loudspeaker via P1, the 16-pin connector, and connector J1. The pin functions for connector P1 are described below: Pin No.
  • Page 5 7. Connect cable cores to terminals following the wire colors as illustrated in Figure 6 or Figure 7. The wire colors correspond to GAI-Tronics 60071 and 60072 Series System Cable and 60070 Speaker Cable. Connect the wires carefully and completely to the terminal block. An improper termination may result in diminished station performance.
  • Page 6 PAGE: 6 OF 10 PUB.: 42004-305 670-301 P ™ S MODEL ARTY PEAKER MPLIFIER Figure 6. Wiring Detail - Single Party System 8/98 Level 2 Rev: 0 k:\standard ioms - current release\instr. manuals (42004)\42004-305.doc...
  • Page 7 PAGE: 7 OF 10 PUB.: 42004-305 670-301 P ™ S MODEL ARTY PEAKER MPLIFIER Figure 7. Wiring Detail - Multi-Party System 8/98 Level 2 Rev: 0 k:\standard ioms - current release\instr. manuals (42004)\42004-305.doc...
  • Page 8: Operation

    Adjustment with Speaker Amplifier Installed The volume of the associated speaker can be adjusted using the control is located under the GAI-Tronics Corporation nameplate on the front panel of the speaker amplifier. Use a small flat-blade screwdriver at least 4 inches (10 cm) long to make adjustment.
  • Page 9: Maintenance

    Maintenance In order to verify and ensure explosion-proof integrity, perform regular inspection checks on the GAI- Tronics explosion-proof enclosure. The GAI-Tronics Field Service Department can formulate a service contract to suit specific preventive maintenance needs. Remove power from the enclosure before performing any maintenance.
  • Page 10: Replacement Parts

    751-001 Amplifier Assembly Reference Material REFERENCE TO ASSEMBLY/MODEL DRAWINGS Published by Published by Title Title GAI-Tronics Ref. No. GAI-Tronics Ref. No. GAI-Tronics Speaker Amplifier Station Outline Dwg. 222-149 8/98 Level 2 Rev: 0 k:\standard ioms - current release\instr. manuals (42004)\42004-305.doc...
