701-307 Handset/Speaker
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive business and technical
information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains all intellectual property and other rights in or
to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics
product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information

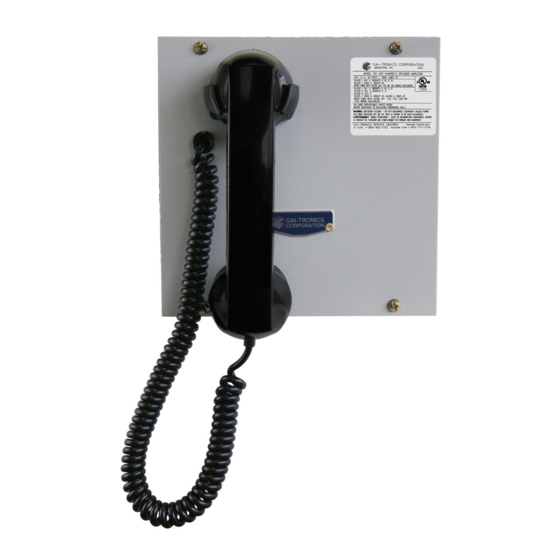

The GAI-Tronics 701-307 Handset/Speaker Amplifier (24 V DC) with Pressbar and Magnetic
Hookswitch is an important component of the 700 series Page/Party
amplifier mates directly with the 702, 703, 732 and 733 series amplifier enclosures and is suitable for
indoor or outdoor use.
Installation
CAUTION
Do not install this equipment in hazardous areas other than those on the
equipment approval list in the Specifications section. Such installation may cause a safety hazard
and consequent injury or property damage.
The 701-307 Handset/Speaker Amplifier plugs directly into the enclosure. The following figure shows
installation and adjustment details. Please refer to it when you are installing and adjusting the amplifier.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Amplifier (24 V DC)
Figure 1. Installation and Adjustment Details
610-777-1374
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
system. This handset/speaker
Fax: 610-796-5954
Pub. 42004-422B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GAI-Tronics 701-307
Summary of Contents for GAI-Tronics 701-307
-
Page 1: General Information
GAI-Tronics. GAI-Tronics retains all intellectual property and other rights in or to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party. -
Page 2: Troubleshooting
Pub. 42004-422B 2 of 4 701-307 Handset/Speaker Amplifier (24 V DC) Page: SCR Electrical Noise - Communications Alert - Please refer to Pub. 42004-140, Installation of 24 V ® DC Page/Party Systems, for system installation suggestions where SCR power supply systems are used, or consult with a GAI-Tronics sales representative. -
Page 3: Specifications
Pub. 42004-422B 3 of 4 701-307 Handset/Speaker Amplifier (24 V DC) Page: Problem Solution Feedback occurs only during Use the muting feature in the amplifier enclosure at the terminal blocks. page. Connect the violet wire at terminal 8 to terminal 7. -
Page 4: Replacement Parts
Approvals NRTL Listed for USA and Canada ........... Class I, Div. 2, Groups A, B, C, D when used with listed GAI-Tronics 702 or 703 24 V dc series enclosures Class I, Div. 2, Groups A, B, C, D Class II, Div. 2, Groups F and G;... -
Page 5: Return Policy
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
