Handset/Speaker Amplifier
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains
all intellectual property and other rights in or to the information contained herein, and such information may
only be used in connection with the operation of your GAI-Tronics product or system. This manual may not
be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The Model 701-202 Handset/Speaker Amplifier includes a new printed circuit board assembly (PCBAs)
with alternate electronic components. This amplifier uses a new PCBA for replacement purposes. See the
Replacement Parts section for details.

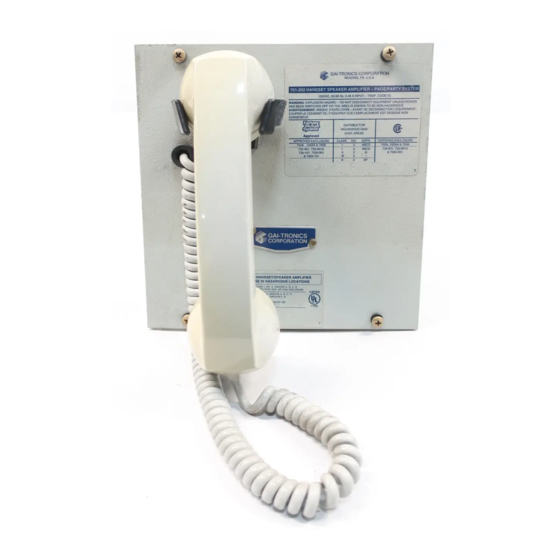

The Model 701-202 Handset/Speaker Amplifier is an important component of the 700 Series Page/Party
system, an industrial communications system designed to be both durable and flexible. GAI-Tronics offers
a wide variety of configuration options to solve challenging application problems.
CAUTION
Do not install this equipment in hazardous areas or areas other than those on the equipment approval
list in the Specifications section. Such installation may cause a safety hazard and consequent injury
or property damage.
Installation
The Model 701-202 Handset/Speaker Amplifier is a plug-in amplifier that mates directly with the 702, 703,
732, 733, 7325, and 7335 Series Amplifier Enclosures. Install the handset/speaker amplifier by plugging it
directly into the amplifier enclosure.
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Model 701-202
610-777-1374
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Fax: 610-796-5954
Pub. 42004-311A
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GAI-Tronics 701
Summary of Contents for GAI-Tronics 701
-
Page 1: Confidentiality Notice
GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party. - Page 2 Receiver Volume: adjusts the gain level from a party line to the receiver • Speaker Amplifier Gain: adjusts the speaker volume; also accessible from the front panel Please refer to the figure below when installing and adjusting the Model 701-202 Handset/Speaker Amplifier. Figure 1. Installation and Adjustment Details \\s_eng\gtcproddocs\standard ioms - current release\42004 instr.
-
Page 3: Troubleshooting
Pub. 42004-311A Model 701-202 Handset/Speaker Amplifier Page: 3 of 5 Maintenance Troubleshooting The following table lists some hints to aid technicians in troubleshooting. Problem Solution Any problem with station Review all the steps of the installation, ensuring that you have correctly performance occurs. -
Page 4: Specifications
NRTL Listed for USA and Canada: ......Div. 2, Class I, Groups A, B, C, D when used with GAI-Tronics Listed 702 or 703 Series 120 V ac enclosures. Div. 2, Class I, Groups A, B, C, D; Div. 2, Class II, Group F and G;... -
Page 5: Replacement Parts
Pub. 42004-311A Model 701-202 Handset/Speaker Amplifier Page: 5 of 5 REPLACEMENT PARTS Part No. Description 10105-007 Handset Assembly 13204-002 Receiver Cap 12511-001 Dynamic Transmitter and Cap 12550-001 Receiver Assembly and PCBA 51008-003 Pressbar Switch Kit 12514-007 6-foot PVC Cord and Bushing... -
Page 6: Return Policy
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
