701-309 Handset/Speaker Amplifier
(24 V DC) with Auxiliary Jack

Confidentiality Notice

This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive business and technical
information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains all intellectual property and other rights in or
to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics
product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.

General Information

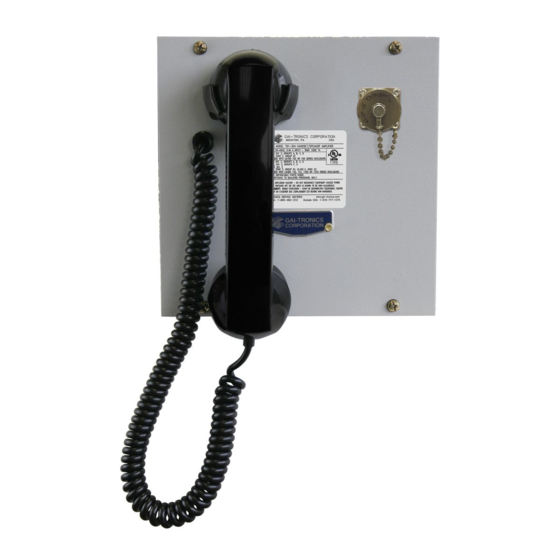

The GAI-Tronics 701-309 Handset/Speaker Amplifier (24 V DC) with Pressbar, Auxiliary Jack and
Magnetic Hookswitch is an important component of the 700 series Page/Party
handset/speaker amplifier mates directly with the 702, 703, 732 and 733 series amplifier enclosures and
is suitable for indoor or outdoor use. The auxiliary jack accepts a GAI-Tronics 10416 Series Headset.

Installation

CAUTION
Do not install this equipment in hazardous areas other than those on the
equipment approval list in the Specifications section. Such installation may cause a safety hazard
and consequent injury or property damage.
The 701-309 Handset/Speaker Amplifier plugs directly into the enclosure. The following figure shows
installation and adjustment details. Please refer to it when you are installing and adjusting the amplifier.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y

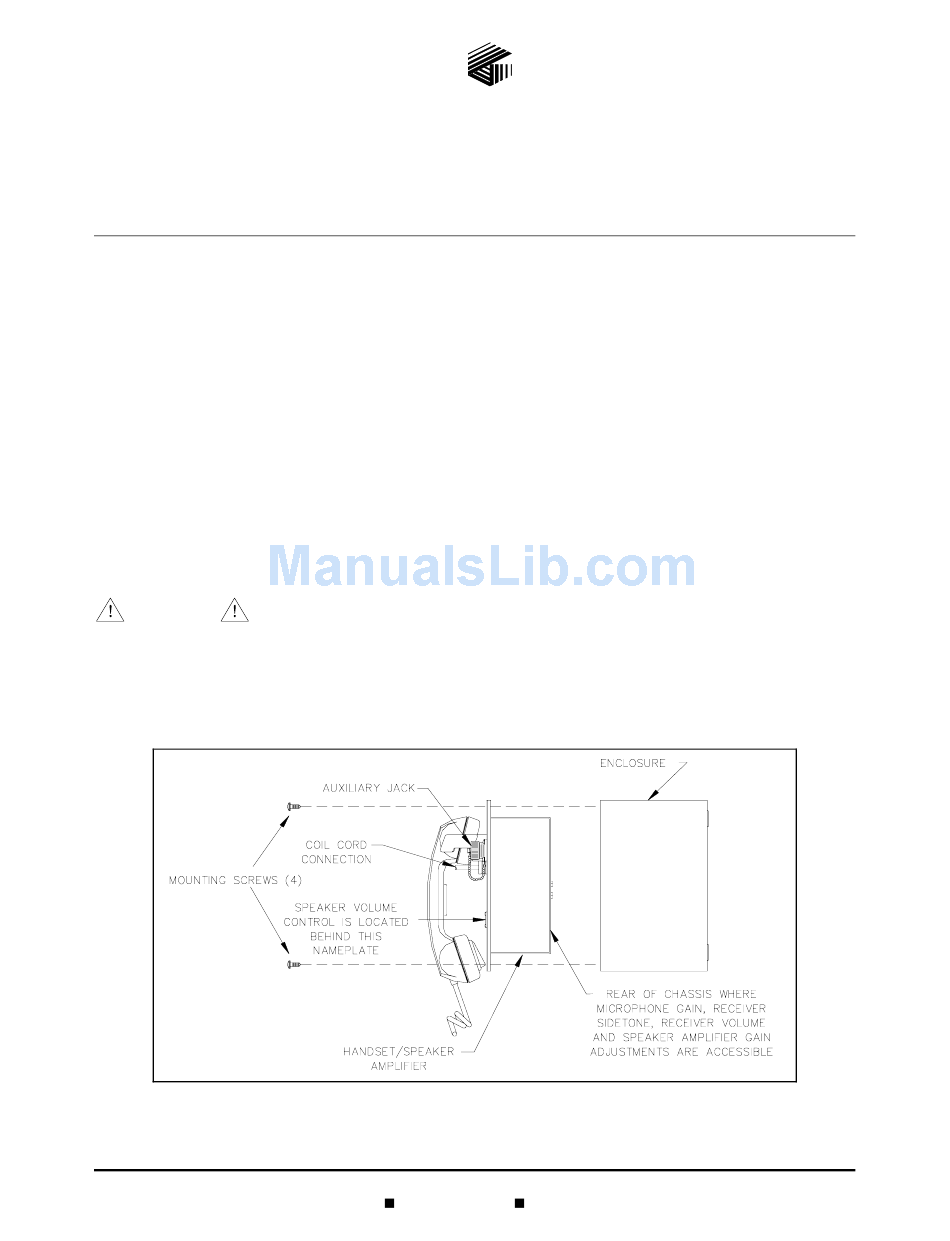

Figure 1. Installation and Adjustment Details
610-777-1374
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
system. This
Fax: 610-796-5954
Pub. 42004-423B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 701-309 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GAI-Tronics 701-309

  • Page 1: General Information

    GAI-Tronics. GAI-Tronics retains all intellectual property and other rights in or to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
  • Page 2: Auxiliary Headset Operation

    The auxiliary headset has priority over the handset. When the user lifts the handset from the cradle while the auxiliary headset is in use, the handset’s microphone and page switch are disabled, but the handset receiver remains active. A GAI-Tronics 10416 series headset/microphone assembly is required. f:\standard ioms - current release\42004 instr. manuals\42004-423b.doc...
  • Page 3: Troubleshooting

    Pub. 42004-423B 3 of 5 701-309 Handset/Speaker Amplifier (24 V DC) with Auxiliary Jack Page: Troubleshooting Problem Solution Any problem with station Review all the steps of the installation, ensuring that you have correctly performance occurs. followed ALL steps. Check all the terminations on the board and in the line balance assembly before proceeding to any other adjustments.
  • Page 4: Specifications

    Approvals NRTL Listed for USA and Canada............Class I, Div. 2, Groups A, B, C, D when used with listed GAI-Tronics 702 or 703 24 V dc series enclosures Class I, Div. 2, Groups A, B, C, D Class II, Div. 2, Groups F and G;...
  • Page 5: Replacement Parts

    Pub. 42004-423B 5 of 5 701-309 Handset/Speaker Amplifier (24 V DC) with Auxiliary Jack Page: Replacement Parts Part No. Description 10112-101 Handset Assembly 13204-002 Receiver Cap 12511-001 Dynamic Transmitter and Cap 12525-001 Pressbar Switch Kit 12514-007 6-foot PVC Cord and Bushing...
  • Page 6: Return Policy

    Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
