GAI-Tronics SP2 Instruction Manual

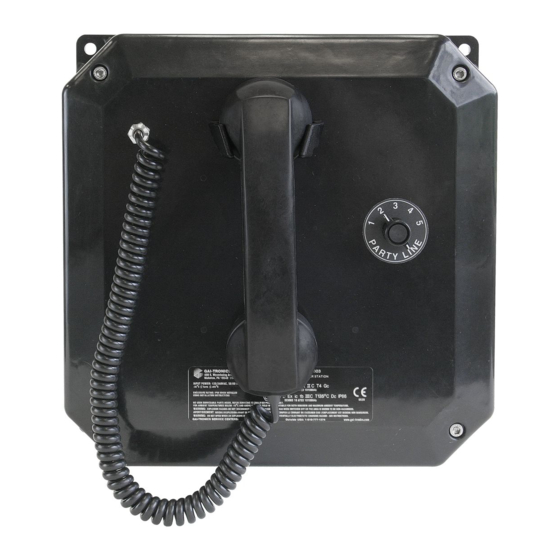

Zone 2/22 weatherproof handset/speaker amplifier station
Hide thumbs Also See for SP2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
SP2 Zone 2/22 Weatherproof
Handset/Speaker Amplifier Station
Confidentiality Notice .....................................................................................................................1
General Information .......................................................................................................................1
Product Overview ................................................................................................................................... 1
Features .................................................................................................................................................... 2
Options ..................................................................................................................................................... 2
Installation ......................................................................................................................................3
Important Safety Instructions................................................................................................................ 3
Mounting the Enclosure ......................................................................................................................... 4
Cable Entries ........................................................................................................................................... 4
Opening the Station ................................................................................................................................ 5
Field Wiring and Configuration ............................................................................................................ 5
Station Ground ...................................................................................................................................... 5
Termination PCBA Connections .......................................................................................................... 6
Main PCBA ......................................................................................................................................... 11
Settings and Adjustments ..............................................................................................................13
Opening the Station .............................................................................................................................. 13
Main PCBA Configuration .................................................................................................................. 13
Write Protect (EEPROM) Jumper ....................................................................................................... 13
WDOG Enable (Watchdog) Jumper ................................................................................................... 13
Boot Enable Jumper ............................................................................................................................ 13
Reset Switch ........................................................................................................................................ 13
Speaker and 600-ohm Audio Output Volume ..................................................................................... 14
Receiver Volume ................................................................................................................................ 14
Group and Station Number Selector Switches .................................................................................... 15
Main PCBA Indicators ......................................................................................................................... 15
Power LED .......................................................................................................................................... 15
Heartbeat LED .................................................................................................................................... 15
Ethernet Connection LEDs ................................................................................................................. 15
Five Configurable LEDs ..................................................................................................................... 15
Attaching the Front Cover ................................................................................................................... 15
Programming ................................................................................................................................15
Operation .......................................................................................................................................16
Standard Handset Paging ..................................................................................................................... 16
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374  800-492-1212  Fax: 610-796-5954
V
ISIT WWW
®
G A I - T R O N I C S
C O R P O R A T I O N
A H U B B E L L C O M P A N Y
T
C
A B L E O F
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
O N T E N T S
Pub. 42004-787L2A
