Frymaster XFPRE80 Service & Parts Manual

Frymaster XFPRE80 Service & Parts Manual

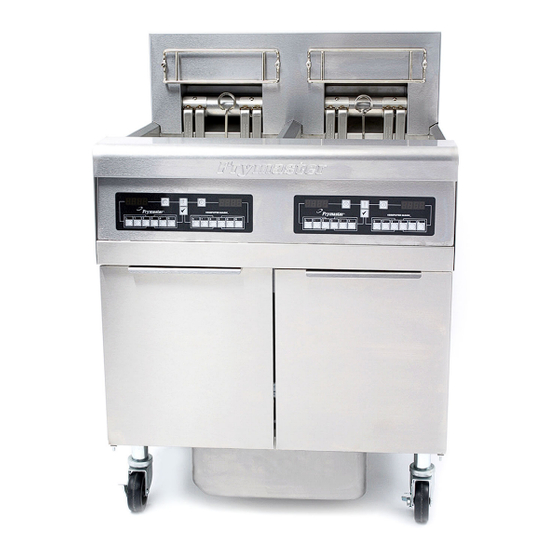

E4 high production electric
Hide thumbs Also See for XFPRE80:
Table of Contents

Advertisement

Quick Links

Download this manual

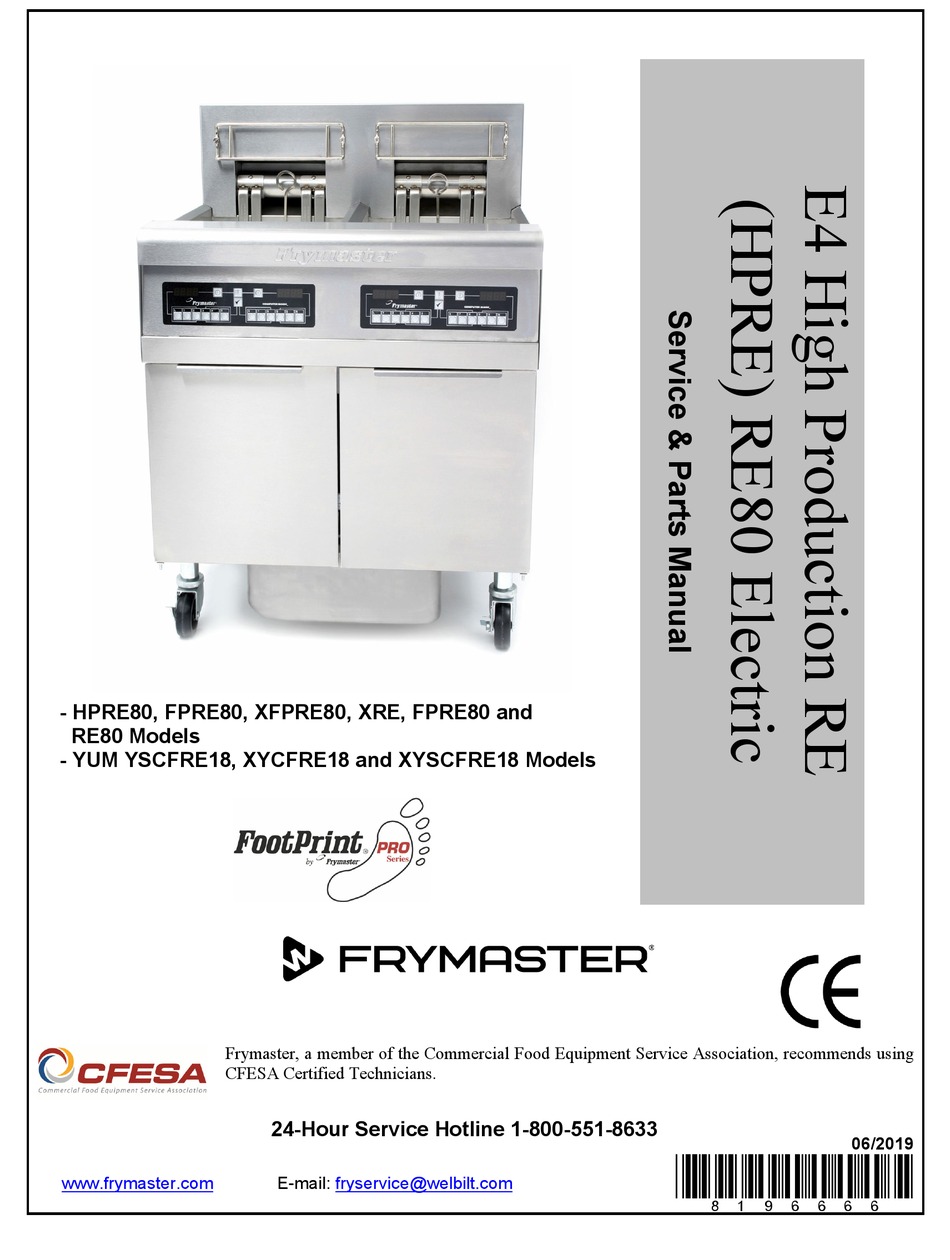

- HPRE80, FPRE80, XFPRE80, XRE, FPRE80 and
RE80 Models
- YUM YSCFRE18, XYCFRE18 and XYSCFRE18 Models
Frymaster, a member of the Commercial Food Equipment Service Association, recommends using
CFESA Certified Technicians.
www.frymaster.com
24-Hour Service Hotline 1-800-551-8633
E-mail:
fryservice@welbilt.com
06/2019
*8196666*
