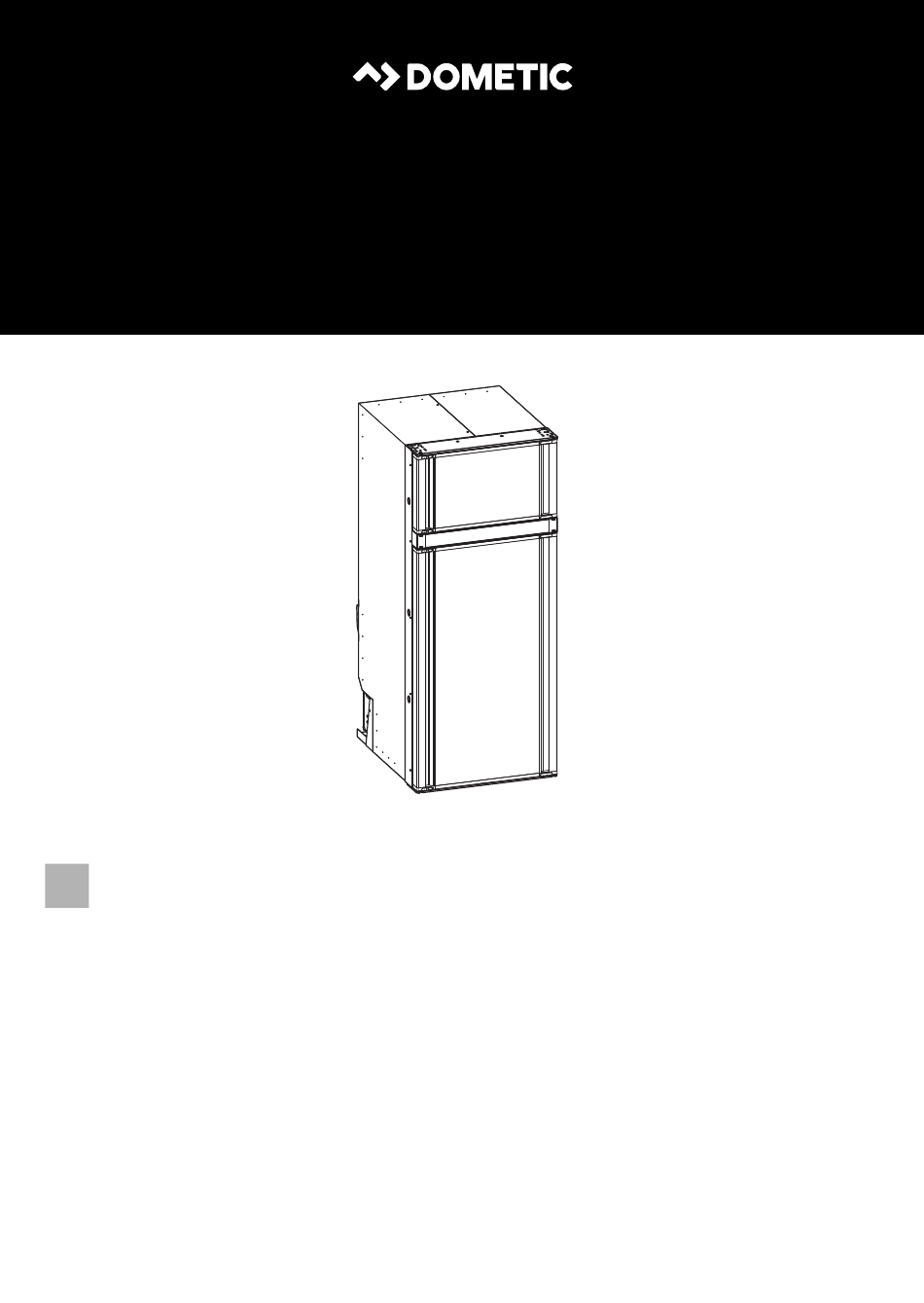

REFRIGERATION
10-SERIES
RCD10.5XES
Compressor refrigerator
EN
Installation and Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10 Series and is the answer not in the manual?

Questions and answers

David McCartney
April 28, 2025

It is on with electric. Coldest setting. All appropriate lites on. Does not seem to be cooling?

0
1 comments:
Mr. Anderson
May 15, 2025

The Dometic 10 Series refrigerator may not be cooling despite being on the coldest setting and showing all lights correctly due to several possible reasons:

1. Warm food inside: If warm food was placed inside, it may take time to cool and affect overall temperature.
2. Ice buildup: A layer of ice may have formed, requiring defrosting to restore cooling efficiency.
3. Door seal issue: If the door seal is not fitting properly, cold air may be escaping.
4. Dirty condenser: Dust or dirt on the condenser can reduce cooling performance and needs cleaning.
5. Incorrect shelf placement: Shelves and drawers should be positioned as delivered for optimal airflow and energy use.
6. Ambient temperature: If outside the recommended range (+15°C to +25°C), performance may be affected.

Check each of these factors to identify the cause.

This answer is automatically generated

0

Related Manuals for Dometic 10 Series

Summary of Contents for Dometic 10 Series

  • Page 1 REFRIGERATION 10-SERIES RCD10.5XES Compressor refrigerator Installation and Operating Manual...
  • Page 2 © 2022 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks...

  • Page 3: Table Of Contents

    This product manual, including the instructions, guide- lines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com. Contents 1 Explanation of symbols ..............3 2 Safety instructions .

  • Page 4: Safety Instructions

    Safety instructions RCD10.5XES NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. 2 Safety instructions 2.1 General safety WARNING! Failure to obey these warnings could result in death or serious injury.
  • Page 5 RCD10.5XES Safety instructions Health hazard • This refrigerator can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the refrigerator in a safe way and understand the hazards involved.
  • Page 6 Safety instructions RCD10.5XES 2.2 Safety when installing WARNING! Failure to obey these warnings could result in death or serious injury. Fire hazard • Ensure clean and residue-free handling if silicon sealant or similar is used. There is a risk of fire if silicone filaments come into contact with hot parts or naked flames. •...
  • Page 7 RCD10.5XES Safety instructions • If the refrigerator is left empty for long periods: – Switch off the refrigerator. – Defrost the refrigerator. – Clean and dry the refrigerator. – Leave the door open to prevent mold developing within the refrigerator. Risk of injury •...

  • Page 8: Scope Of Delivery

    Scope of delivery RCD10.5XES 2.4 Safety when operating with AC power NOTICE! Damage hazard • Check that the voltage specification on the type plate is the same as that of the power supply. • Only use the cable supplied to connect the refrigerator to the AC mains. •...

  • Page 9: Technical Description

    • Alterations to the product without express permission from the manufacturer • Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. 7 Technical description The device can refrigerate goods to +8 °C to 0 °C and keep them cool. Products can be kept frozen in the freezer compartment.
  • Page 10 Technical description RCD10.5XES 7.1 Components No. in fig. 1, page 10 Description Quantity Freezer compartment Freezer compartment shelf Control and display elements Refrigerator shelf Refrigerator compartment Fruit and vegetable section Freezer compartment door Refrigerator door Top door bin Bottom door bin with bottle holder...

  • Page 11: Installation

    RCD10.5XES Installation 8 Installation 8.1 Installation location 1. Ensure that the floor is solid and level. 2. Ensure that the refrigerator is level. 3. Install the refrigerator so that it is easily accessible for service work, easy to de-install and install and can be eas- ily removed from the vehicle.
  • Page 12 Installation RCD10.5XES Recess Overall dimension in mm Height (A) 1260 Width (B) Depth (C) Recess Dimension in mm Height (H) 1246 – 1251 Width (W) 526 – 531 Depth (D) 571 – 586 8.2 Installation with two rear vents 1. Keep the air inlet and outlet vents free from coverage by vehicle parts (such as an open door or by installing accessories such as bicycle racks) while operating.
  • Page 13 RCD10.5XES Installation 10 – 25 mm No. in fig. 3, page 13 Description LS300 ventilation grille Air deflection plate 4. Fit the outer wall with one air inlet ventilation grille (fig. 3 1a, page 13) and one outlet ventilation grille (fig.
  • Page 14 Installation RCD10.5XES 8.3 Installation with one lower rear vent and one roof vent 10 – 25 mm No. in fig. 4, page 14 Description LS300 ventilation grille Roof vent 1. Install the lower air vent LS300 flush to the vehicle floor. 2.
  • Page 15 RCD10.5XES Installation 8.4 Installation in a sealed location separate to the living space It is recommended to install the refrigerator in a sealed location in order to prevent dust and heat from entering the living space of the caravan or motor home. WARNING! Fire hazard Do not use flammable materials such as silicone sealants, foam or similar for the draft- proof installation.
  • Page 16 Installation RCD10.5XES 8.6 Installing the ventilation grille No. in fig. 6, page 16 Description Slider Ventilation grille Installation frame 1. Make a cut out in the wall to fit an appropriate upper and lower vent system, choose LS300 check the dimen- sions required for the vent.
  • Page 17 RCD10.5XES Installation 2. Ensure the installation frame is water resistant (fig. 7). 3. Insert the installation frame and screw it down tightly (fig. 8). Use all the fixing holes for this. 4. Fit the ventilation grille (1. and 2. in fig. 9). 5.
  • Page 18 Installation RCD10.5XES 8.7 Installing the roof vent No. in fig. 0, page 18 Description Hood Installation frame 1. Cut out a section in the roof. Refer to the roof vent instruction manual for the required dimensions. When doing so, observe the information, see chapter “Installation location” on page 11. 2.
  • Page 19 RCD10.5XES Installation 3. Insert the installation frame and screw it down tightly (1. in fig. b). Use all the fixing holes for this. 4. Insert the hood and screw it down tightly (2. in fig. b). 8.8 Securing the refrigerator WARNING! Electrocution hazard Only screw through the bushes built into the refrigerator side walls (fig.

  • Page 20: Connecting The Refrigerator

    Connecting the refrigerator RCD10.5XES 2. Push suitable screws (not included, fig. c 1) through the bushes in the sides of the refrigerator, and fasten into the recess walls. 3. Fit the included bushcaps (fig. c 2) into the bushes. 9 Connecting the refrigerator 9.1 Connecting the refrigerator to 12 –...
  • Page 21 RCD10.5XES Connecting the refrigerator To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below). 12 V 24 V 10.4 V 22.8 V Cut-off voltage 11.7 V 24.2 V Cut-in voltage Ø/mm² 12 V 24 V 2 4 6 8 10 12 14 16 18 20 22 24 26 28 1.
  • Page 22 Connecting the refrigerator RCD10.5XES 3. Connect the cable to the refrigerator DC terminal block (fig. e 1). NOTE Connect the refrigerator as directly as possible to the battery to reduce the voltage drop in the cable. 4. Connect the refrigerator with fuse protection fitted to the positive (+) side of the supply cable of 15 A (at 12 V) or 7.5 A (at 24 V), with fuse fitted at the battery end of the cable.

  • Page 23: Operation

    RCD10.5XES Operation 10 Operation 10.1 Before first use Before first use, clean the inside of the refrigerator with a damp cloth for hygienic reasons (see chapter “Cleaning and maintenance” on page 34). 10.2 Saving energy • Only open the refrigerator as often and for as long as necessary. •...
  • Page 24 Operation RCD10.5XES The LED display features the following operating and display elements: Symbol Description ON/OFF button Performance mode Silent mode Turbo mode Error warning Temperature indicator Mode selection button MODE Temperature selection button 10.4 User modes The following table shows the user modes and their settings: Compres- Tempera- User mode...
  • Page 25 RCD10.5XES Operation 10.5 Switching on NOTE • When using the refrigerator for the first time, there may be a mild odor which will disappear after a few hours. Air the living space well. • Park the vehicle so that it is level, especially when starting up and filling the refriger- ator before setting off on a journey.
  • Page 26 Operation RCD10.5XES 10.7 Locking the refrigerator door/freezer compartment door 1. Ensure the airing catch is in the normal use position and not in the airing function position (fig. m, page 33). 2. Close the doors. 3. Push the door locks to the left (1. and 2. in fig. h). ✔...
  • Page 27 RCD10.5XES Operation No. in fig. i, page 27 Food Frozen food Dairy products, ready-made meals Meat, fish, items for defrosting Salad, vegetables, fruit Eggs, butter Dressing, ketchup, jam Drinks in bottles or cartons Observe the following instructions for storing items: •...
  • Page 28 Operation RCD10.5XES 10.9 Switching off ➤ Press the button for at least 3 seconds. ✔ The refrigerator is switched off completely. ➤ If you do not intend using the refrigerator for an extended period of time, disconnect the power supply. 10.10 Positioning the shelves WARNING! Risk of child entrapment All shelves are fixed in place to prevent children from climbing into the refrigerator.
  • Page 29 RCD10.5XES Operation Refitting the shelves ➤ Refit the shelf in the reverse order. 10.11 Replacing the door panel Removing the door panel...
  • Page 30 Operation RCD10.5XES...
  • Page 31 RCD10.5XES Operation Proceed as follows (fig. k): 1. Push the door locks to the right (1.). 2. Remove the door lock plates (2.). 3. Push the hinge side locks to the left (3.). 4. Tilt the door (4.). 5. Remove the door (5.). 6.
  • Page 32 Operation RCD10.5XES Installing the new door panel 3 mm Proceed as follows (fig. l): 1. Push the new panel downwards into the door until the lower horizontal edge of the panel fits into the bottom groove. Ensure that the vertical edges fit into the grooves of the door frame (1.). 2.
  • Page 33 RCD10.5XES Operation 3. Put the door back into place (4. and 5.). 4. Push the hinge side locks to the right (6.). 5. Fit the door lock plates onto the door lock (7.). 6. Push the door locks to the left (8.). 10.12 Preparing the refrigerator for prolonged periods of non-use NOTICE! Damage hazard Do not use the door airing function while driving.

  • Page 34: Cleaning And Maintenance

    Cleaning and maintenance RCD10.5XES 11 Cleaning and maintenance 11.1 Cleaning the refrigerator WARNING! Electrocution hazard Always disconnect the refrigerator from the mains before you clean and service it. NOTICE! Damage hazard • Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator.

  • Page 35: Troubleshooting

    If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 3 year(s). For repair and warranty processing, please include the following documents when you send in the device: •...

  • Page 36: Disposal

    This warranty policy is subject to the conditions and guarantees which are mandatory as implied by the Consumer Guarantees Act 1993(NZ). Local support Please find local support at the following link address: dometic.com/dealer 14 Disposal WARNING! Risk of child entrapment Before disposing of your old product: •...
  • Page 37 RCD10.5XES Technical data RCD10.5XES Cooling temperature range Refrigerator compartment 0 °C to +8°C Freezer compartment –20 °C to –10 °C Low ambient control 5 W heater off-cycle, cut-in at ambient temperature < 12 °C  36 dB Noise emission Climatic class N or T(+16 °C to +43 °C) Short-term inclination 30°...
  • Page 40 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
