Leave this manual with party responsible for use
and operation.
1. Introduction
The IFT-RC150 is a wall mounted device that is designed
to control the functions of Hearth & Home Technologies
products equipped with IntelliFire™ Touch Technology
(IFT). It can be used to control the ON/OFF functions of
the flame and cold climate modes of the appliance.
2. IFT-RC150 Installation
A. Precautions
This device is tested and safe when installed in accor-
dance with this installation manual. Do not install any
components that may be damaged.
Do not modify, disassemble, or substitute any of the com-
ponents included with this kit. Installation of this unit must
be done by a qualified service technician.
The location of this device may affect performance. An
assessment of the location should be done prior to instal-
lation for optimum performance.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged system component.
• Modification of the system component.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
• Read, understand and follow these instructions for safe
installation and operation.
B. Determine Location
Determine the location for the IFT-RC150. The selected
location should be in the same space as the gas appli-
ance with visual sight of the appliance. The device must be
placed within 30 feet (9.14m) of the appliance but should
not be exposed to extreme heat.
The IFT-RC150 is approved for interior installation and
should not be used in exterior applications.
• Keep remote control out of reach of children.
Hearth & Home Technologies • RC150 IntelliFire™ Touch Installation Instructions • 2326-980 Rev. C • 1/22
1
IFT-RC150
IntelliFire™ Touch Remote Control
Installation Instructions
C. Wall Mount Kit Contents
• IFT-RC150 Wireless Wall Switch
• Radio Frequency Module (IFT-RFM)
• 1 inch #6 Screws (2)
• Drywall Anchors (2)
• AA Batteries (2)
D. Installation Steps
CAUTION! Do not install damaged components. If you
received components that are damaged, contact your
dealer for assistance.
CAUTION! Risk of burns! DO NOT program the wireless
wall switch to the IFT-ECM when appliance is hot.
1. Remove the contents from packaging.
2. Locate the IntelliFire™Touch electronic control module
(IFT-ECM) in the control cavity of the appliance and
move the three-position switch to the OFF position.
See Figure 1.
3. Connect the IFT-RFM to the IFT-ECM by aligning the
pins and tabs and pushing the IFT-RFM into the IFT-
ECM until both tabs latch into position. Ensure the
two components are fastened securely to one another.
See Figure 1.

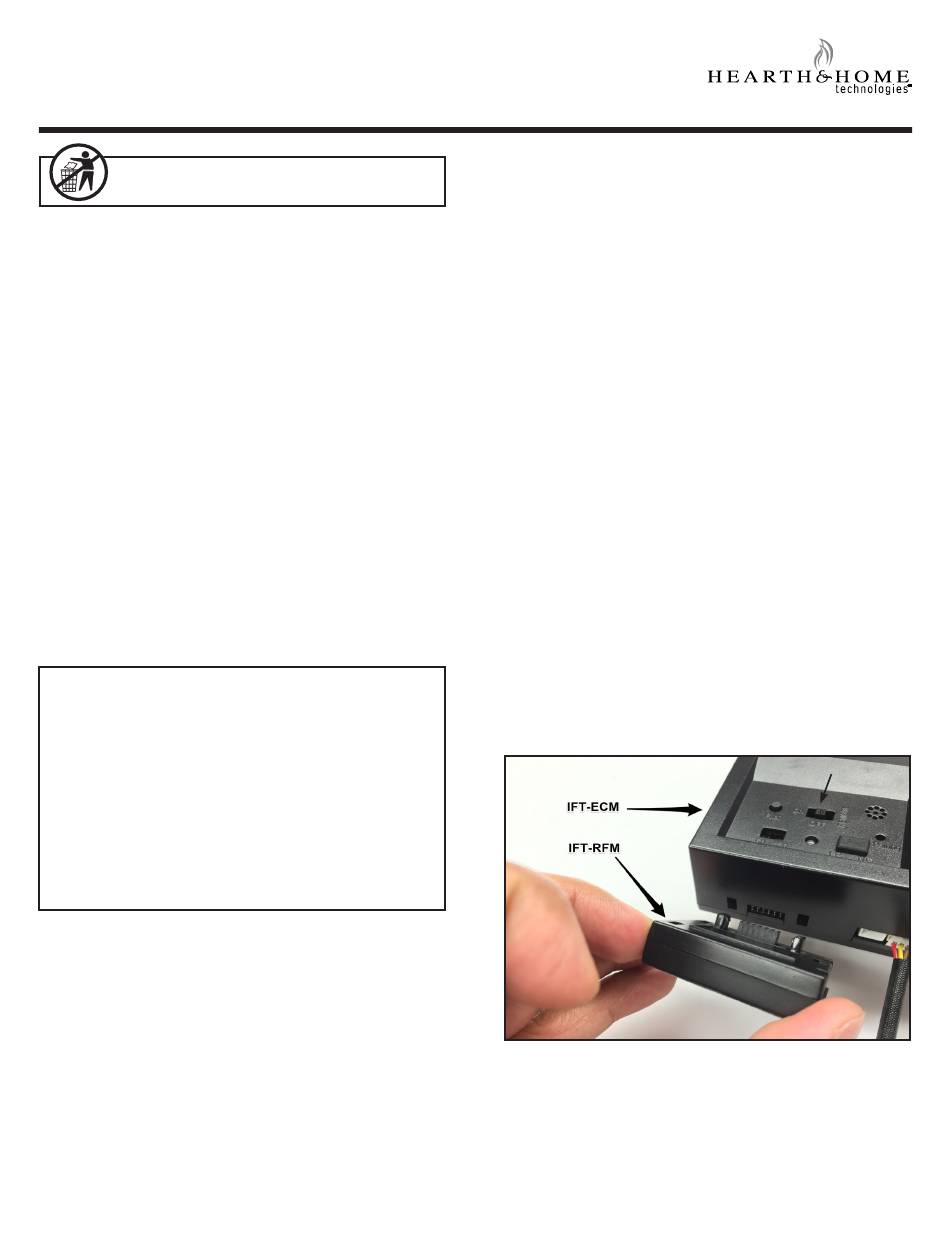

Figure 1. Connect IFT-RFM to IFT-ECM
'OFF' POSITION
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Hearth & Home IntelliFire IFT-RC150-MAJ
Summary of Contents for Hearth & Home IntelliFire IFT-RC150-MAJ
- Page 1 IFT-RC150 IntelliFire™ Touch Remote Control Installation Instructions C. Wall Mount Kit Contents Leave this manual with party responsible for use • IFT-RC150 Wireless Wall Switch and operation. • Radio Frequency Module (IFT-RFM) 1. Introduction • 1 inch #6 Screws (2) The IFT-RC150 is a wall mounted device that is designed •...
- Page 2 E. Pairing the IFT-RC150 to the Electronic Con- 4. Insert small flat screwdriver in the tab located in the bottom of the wall switch and twist the screwdriver to trol Module (IFT-ECM) disassemble the wall switch. See Figure 2. CAUTION! Risk of burns! DO NOT program the IFT Remote Controls to the IFT-ECM when flame or cold climate function is on or when appliance is hot.
-
Page 3: Wiring Diagram
F. Wiring Diagram IntelliFire™ Touch System Wiring Diagram FLAME IGNITER SENSE ADAPTER IFT-RC150 WIRELESS WALL SWITCH (OPTIONAL ON SOME MODELS ONLY) MODULE RESET SWITCH WIRE ASSEMBLY ELECTRONIC CONTROL MODULE RF MODULE 6 PIN 6V DC SPLITTER BATTERY PACK APPLIANCE ON/OFF CONTROL (OPTIONAL) Figure 5. - Page 4 3. Operation D. Power Outage In the event of a power outage, the IFT-RC150 can A. Turn Flame ON/OFF continue to operate the hearth appliance if batteries are installed in the appliance’s battery backup system. Refer • To turn the flame ON, press the top of the rocker switch. to the appliance Owner’s Manual for instructions for •...
-
Page 5: Frequently Asked Questions/Troubleshooting
4. Frequently Asked Questions/Troubleshooting Symptom Possible Cause Corrective Action Batteries are depleted. Verify batteries are new. The appliance does not respond to com- mands from the IFT-RC150 and the LED Verify batteries are installed in correct orientation Batteries are incorrectly installed. does not blink. - Page 6 5. IntelliFire™ Touch Electronic Control Module (IFT-ECM) 1. beep twice and light and rectify the pilot flame when IFT-ECM Detailed Operating Instruction pressed to activate. To turn off Cold Climate, press and hold the Pilot button for one second and release. 1.
-
Page 7: Risk Of Explosion
DANGER Troubleshooting With proper installation, operation and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide Risk of Explosion will assist a qualified service technician in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualified DO NOT cycle the ON/OFF/REM selector service technician. - Page 8 Troubleshooting (continued) Symptom Possible Cause Corrective Action Verify incoming as line ball valve is ‘Open’. Verify inlet pressure No gas supply. is within requirement for gas type used. Contact gas supplier. Verify wiring, check valve harness black wire is securely Pilot sparks for 60 sec, but will not ECM has poor ground.
-
Page 9: Fcc Compliance Statement
FCC Compliance Statement: • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Op- Caution: The Federal Communications Commission eration is subject to the following two conditions: warns that changes or modifications not expressly ap- (1) This device may not cause harmful interference, and proved by the party responsible for compliance could void (2) This device must accept any interference received, in-...
